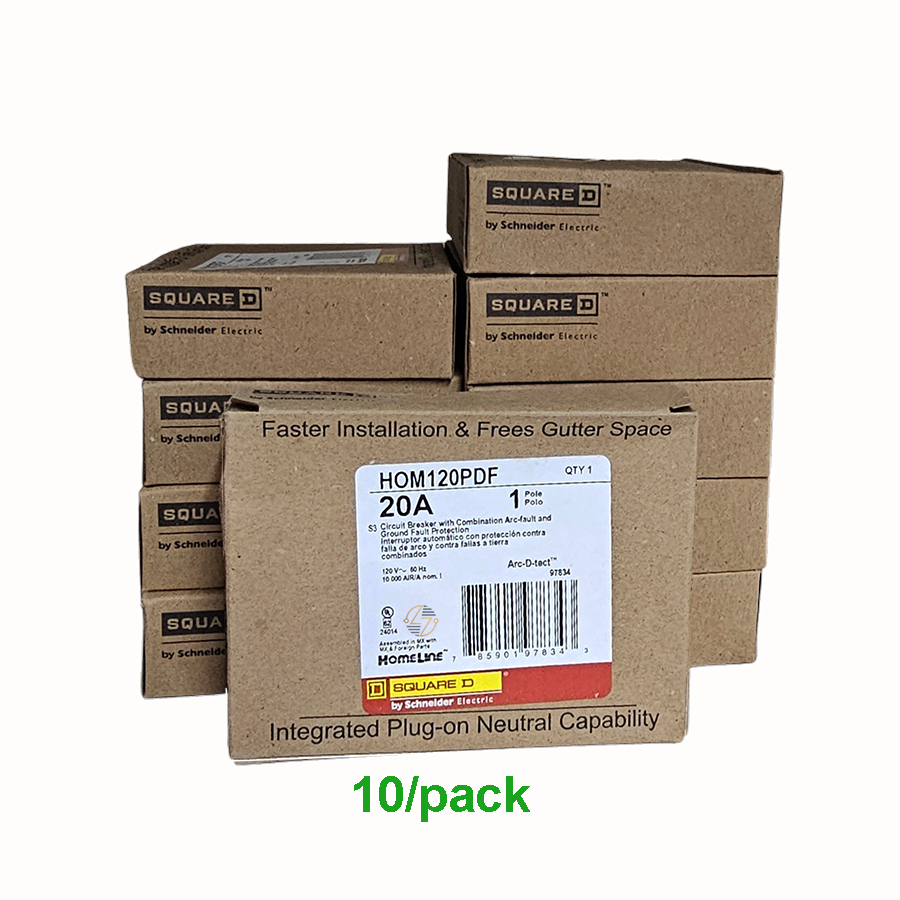

HOM120PDF - 20Amp Circuit Breaker

HOM120PDF - 20Amp Circuit Breaker

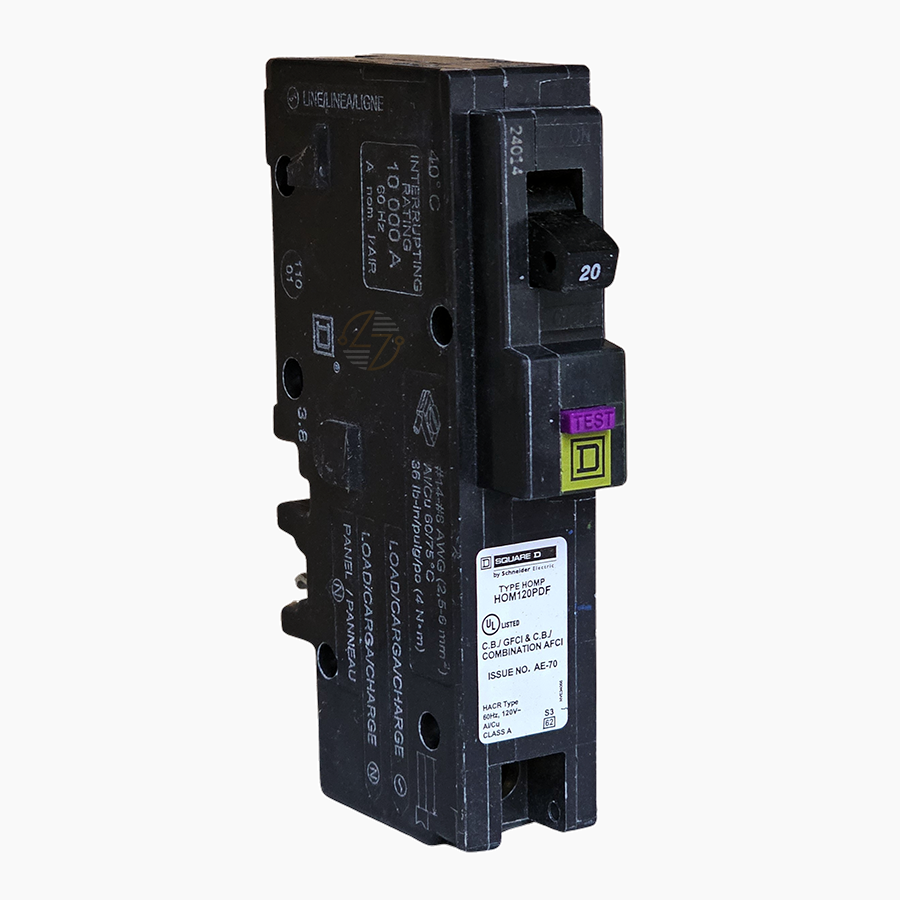

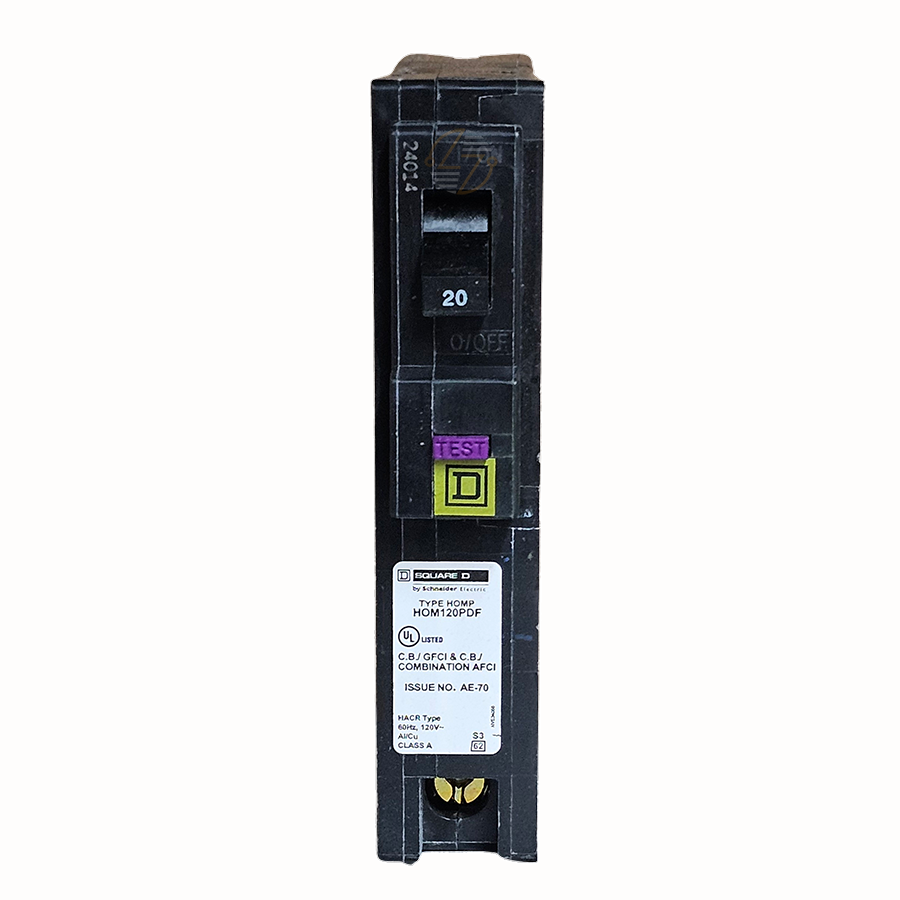

The HOM120PDF Square D Homeline dual-function circuit breaker combines arc-fault circuit interrupter (AFCI) and ground-fault circuit interrupter (GFCI) protection in a single 20-amp, 1-pole breaker designed for your compatible Homeline load centers. This dual-function breaker provides overload, short-circuit, arc-fault, and Class A ground-fault protection in a single compact device, simplifying installations that require multiple forms of circuit protection. The HOM120PDF features a plug-on neutral connection, allowing it to be used in compatible Homeline panels designed for this connection method, while maintaining a clean and efficient installation.

Key Features and Benefits

• 20 Amp dual-function circuit breaker
• Combines AFCI and Class A GFCI protection in one device
• Provides overload and short-circuit protection
• Arc fault protection designed in accordance with UL 1699
• Ground fault protection designed in accordance with UL 943
• Plug-on neutral connection design
• Compatible with Homeline load centers requiring plug-on neutral breakers
• Single-pole design occupies one panel space
• Screw clamp terminal connection
• Accepts copper and aluminum conductors


Technical Specifications

• Catalog Number: HOM120PDF

• Product Type: Miniature Circuit Breaker

• Product Range: Homeline

• Circuit Breaker Type: Combination Arc-Fault and Ground Fault Class A 6 mA

• Current Rating: 20 A

• Voltage Rating: 120VAC

• Number of Poles: 1P

• Mounting Type: Plug-In

• Number of Spaces: 1

• Short Circuit Current Rating: 10kA

• Ratings: HACR Rated

• Electrical Connection: Screw Clamp Terminals

• Neutral Connection: Plug-On Neutral

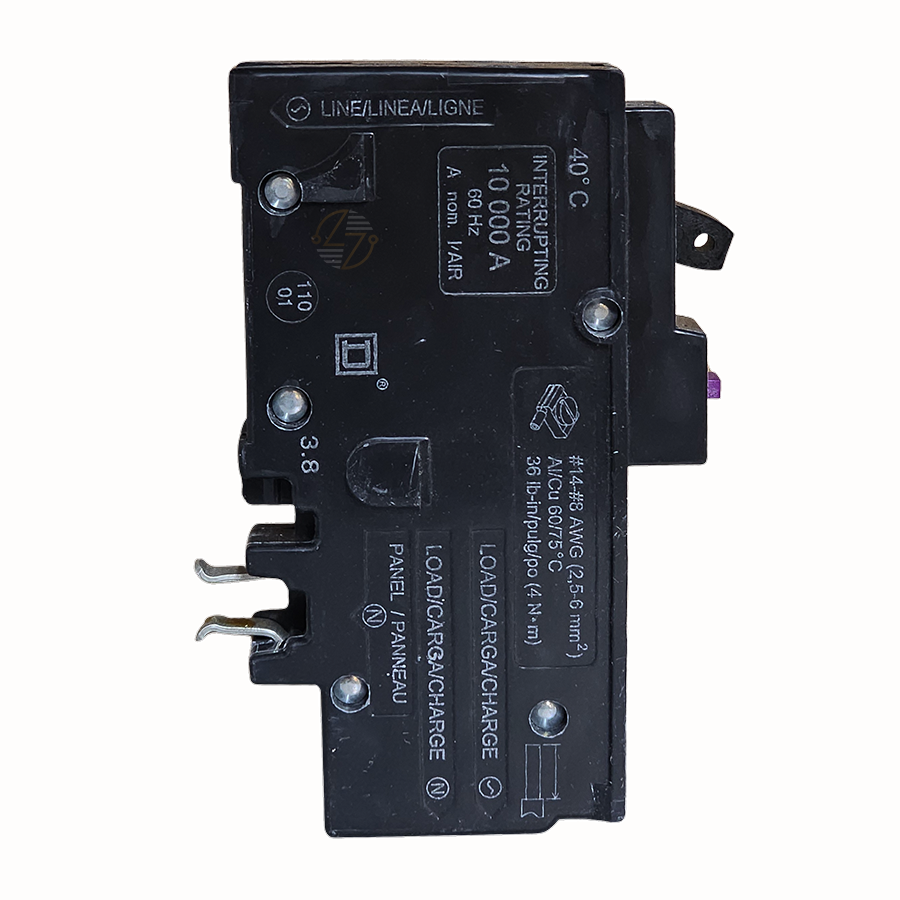

• Wire Range:
  • 1 x 14 AWG–8 AWG Aluminum/Copper
  • 2 x 14 AWG–10 AWG Copper
• Tightening Torque: 35.4 lb-in (4.0 N·m)

• Height: 3.13 in (79.50 mm)

• Width: 1 in (25.4 mm)

• Depth: 2.98 in (75.69 mm)

• Net Weight: 0.62 lb (0.28 kg)

• Ambient Operating Temperature: 104°F (40°C)


Material Compliance and Certifications

The HOM120PDF Square D Homeline dual-function circuit breaker is UL Listed and designed to meet applicable AFCI and GFCI protection requirements. It is TAA Compliant and manufactured for use in compatible Homeline electrical systems.

Where It Works Best

• Homeline load centers requiring plug-on neutral breakers
• Residential branch circuit applications
• Projects requiring combined AFCI and GFCI protection
• Electrical maintenance and replacement applications
• Installations where one device must provide multiple circuit protection functions
• Compatible 120V circuits requiring a 20 Amp single-pole breaker
