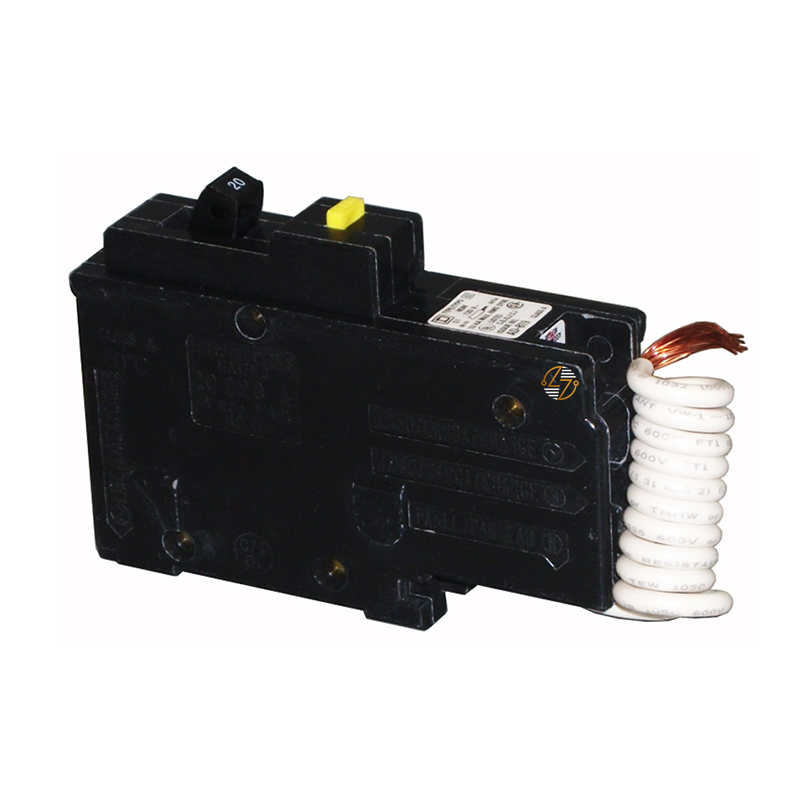

HOM120GFI - 20 Amp Circuit Breaker

HOM120GFI - 20 Amp Circuit Breaker

The HOM120GFI Square D Homeline ground-fault circuit breaker (GFCI) is a 20-amp, single-pole circuit breaker designed to provide branch-circuit protection and Class A ground-fault protection in compatible Homeline load centers. This plug-in circuit breaker combines overload, short-circuit, and ground-fault protection in a single compact design, helping maintain safe and dependable electrical operation in residential and light commercial applications. The HOM120GFI is designed for installations where matching your existing Homeline panel configuration, breaker style, and electrical ratings is important.

Key Features and Benefits

• 20 Amp single-pole ground fault circuit breaker
• Designed for compatible Homeline load centers
• Provides Class A ground fault protection
• Detects ground fault currents of 6 mA or greater
• Combines overload, short-circuit, and ground fault protection
• 120VAC rated
• Plug-in mounting design
• Includes pigtail neutral connection
• HACR rated
• Screw clamp terminal connection
• Accepts copper and aluminum conductors
• Occupies one panel space


Technical Specifications

• Catalog Number: HOM120GFI

• Product Type: Miniature Circuit Breaker

• Product Range: Homeline

• Circuit Breaker Type: Ground Fault Protection, Class A 6 mA

• Current Rating: 20 A

• Voltage Rating: 120VAC

• Number of Poles: 1P

• Mounting Type: Plug-In

• Number of Spaces: 1

• Short Circuit Current Rating: 10kA

• Ratings: HACR Rated

• Electrical Connection: Screw Clamp Terminals

• Terminal Connection: Pigtail Neutral

• Wire Range: 1 x 14 AWG–10 AWG Copper/Aluminum

• Tightening Torque: 4.1 N·m for 14 AWG–10 AWG conductors

• Ambient Operating Temperature: 104°F (40°C)

• Height: 79.50 mm

• Width: 25.4 mm

• Depth: 75.69 mm

• Net Weight: 0.277 kg


Material Compliance and Certifications

The HOM120GFI Square D Homeline ground fault circuit breaker is UL Listed and manufactured to meet applicable circuit protection and safety requirements. The breaker is designed for use in compatible Homeline load centers and should be installed in accordance with applicable electrical codes and manufacturer specifications.

Where It Works Best

• Compatible Homeline load centers
• Residential electrical panel applications
• Branch circuits requiring Class A GFCI protection
• Areas where ground fault protection is required
• Maintenance and replacement projects using matching Homeline breakers
• 120V circuits requiring a 20 Amp single-pole GFCI breaker
• Applications where plug-in mounting and pigtail neutral connection are specified
