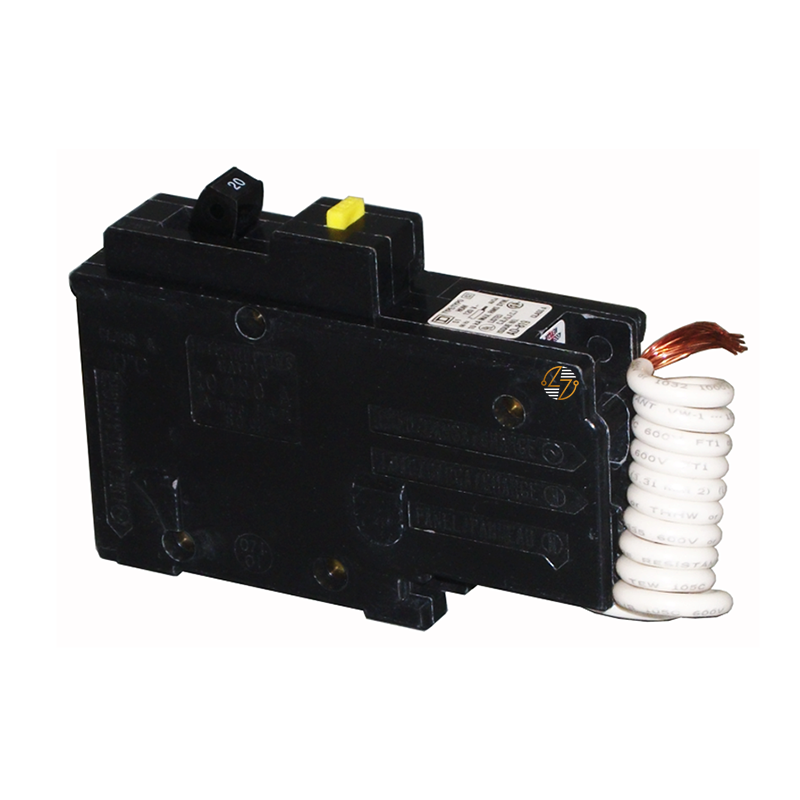

HOM115GFI - 15 Amp Circuit Breaker

HOM115GFI - 15 Amp Circuit Breaker

The HOM115GFI Square D Homeline ground-fault circuit breaker (GFCI) is a 15-amp, single-pole breaker designed for use with compatible Homeline load centers where ground-fault protection is required. This plug-in circuit breaker combines standard branch-circuit protection with Class A ground-fault circuit interrupter protection, helping you protect against ground faults by detecting fault currents to ground of 6 milliamperes or greater. It is a practical solution for your electrical systems requiring a matching Homeline breaker configuration while maintaining the original panel layout.

Key Features and Benefits

• 15 Amp single-pole ground fault circuit breaker
• Designed for compatible Homeline load centers
• Provides overload, short-circuit, and Class A ground fault protection
• Trips when ground fault current reaches 6mA or greater
• Plug-in mounting design for compatible panels
• Rated for 120VAC branch circuits
• Includes pigtail neutral connection
• Screw clamp terminal connection
• Accepts copper and aluminum conductors
• Occupies one panel space
• Maintains Homeline panel form, fit, and functionality


Technical Specifications

• Catalog Number: HOM115GFI

• Product Type: Miniature Circuit Breaker / Ground Fault Circuit Interrupter

• Product Range: Homeline

• Amperage Rating: 15 Amps

• Voltage Rating: 120VAC

• Poles: 1

• Mounting Type: Plug-In

• Circuit Breaker Type: Class A Ground Fault Protection

• Ground Fault Trip Level: 6mA

• Short Circuit Current Rating: 10kA

• Number of Spaces: 1

• Ratings: HACR Rated

• Connection Type: Screw Clamp Terminals

• Neutral Connection: Pigtail Neutral

• Wire Range: 1 x 14 AWG–10 AWG Copper/Aluminum

• Tightening Torque: 4.1 N·m

• Ambient Operating Temperature: 104°F (40°C)

• Height: 79.50 mm

• Width: 25.4 mm

• Depth: 75.69 mm

• Net Weight: 0.274 kg


Material Compliance and Certifications

The HOM115GFI Square D Homeline ground-fault circuit breaker is UL Listed and designed for use in electrical systems that require Class A GFCI protection. It is intended for installation in compatible Homeline load centers and should be installed by qualified electrical personnel in accordance with applicable electrical codes and safety requirements.

Where It Works Best

• Compatible Homeline load centers
• Residential electrical panels requiring GFCI protection
• Branch circuits in areas where ground fault protection is required
• Kitchens, bathrooms, garages, outdoor circuits, and similar applications requiring GFCI protection
• Light commercial electrical installations
• Replacement of existing 15 Amp Homeline GFCI breakers
• Electrical maintenance projects requiring matching breaker specifications
