HOM115CAFI - 15 Amp Circuit Breaker

HOM115CAFI - 15 Amp Circuit Breaker

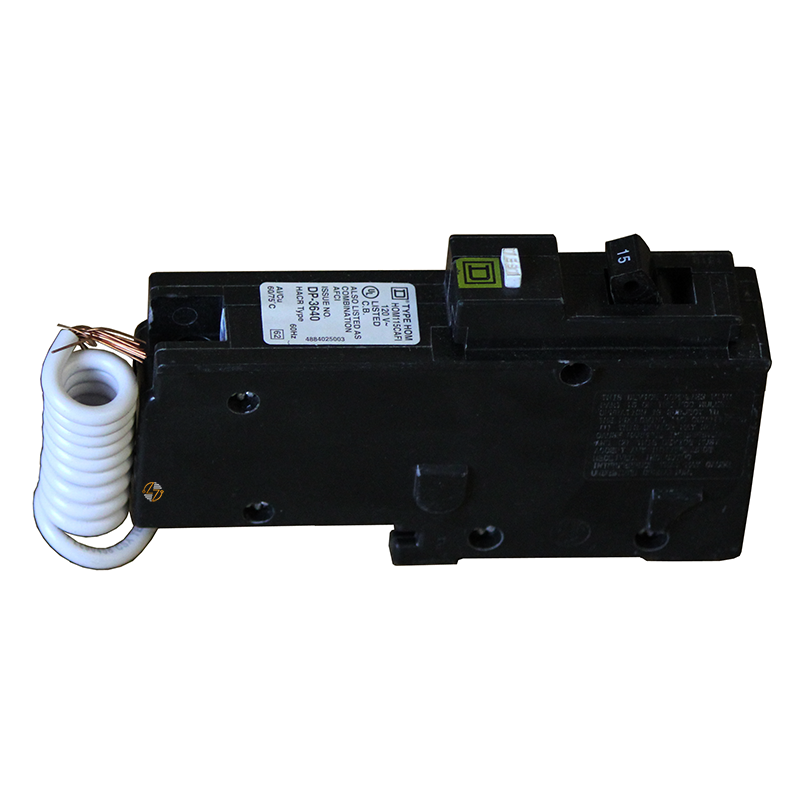

The HOM115CAFI Square D Homeline combination arc fault circuit breaker (CAFI) is a 15-amp, single-pole breaker designed for use in your compatible Homeline load centers where both branch-circuit and arc-fault protection are required. This combination AFCI breaker protects against overloads, short circuits, and potentially hazardous arcing conditions in accordance with applicable electrical requirements. Its plug-in mounting design makes it a practical choice for maintaining existing Homeline panel configurations while replacing a matching breaker.

Key Features and Benefits

• 15 Amp single-pole combination arc fault circuit breaker
• Designed for compatible Homeline load centers
• Provides overload, short-circuit, and arc fault protection
• Combination AFCI design compliant with applicable NEC and UL 1699 requirements
• Plug-in mounting style for compatible panels
• Rated for 120VAC branch circuits
• Includes pigtail neutral connection
• Screw clamp terminal connection
• Accepts copper and aluminum conductors
• Occupies one panel space
• Maintains existing Homeline panel form, fit, and functionality


Technical Specifications

• Catalog Number: HOM115CAFI

• Product Type: Miniature Circuit Breaker / Combination Arc Fault Circuit Interrupter

• Product Range: Homeline

• Amperage Rating: 15 Amps

• Voltage Rating: 120VAC

• Poles: 1

• Mounting Type: Plug-In

• Circuit Breaker Type: Combination Arc Fault (CAFI)

• Short Circuit Current Rating: 10kA

• Number of Spaces: 1

• Ratings: HACR Rated

• Connection Type: Screw Clamp Terminals

• Neutral Connection: Pigtail Neutral

• Wire Range: 1 x 14 AWG–8 AWG Copper/Aluminum

• Tightening Torque: 35.4 lb-in (4.0 N·m)

• Ambient Operating Temperature: 104°F (40°C)

• Height: 3.13 in (79.50 mm)

• Width: 1 in (25.4 mm)

• Depth: 2.98 in (75.69 mm)

• Product Weight: 0.650 lb (0.295 kg)

• GTIN: 785901439721

• Country of Origin: Mexico


Material Compliance and Certifications

The HOM115CAFI Square D Homeline combination arc fault circuit breaker is UL Listed and designed to meet applicable arc fault protection requirements, including UL 1699 standards for arc fault circuit interrupters. It is intended for installation in compatible Homeline load centers and should be installed by qualified electrical personnel in accordance with applicable electrical codes and safety practices.

The product is also identified as TAA-compliant per the manufacturer’s specifications.

Where It Works Best

• Compatible Homeline load centers
• Residential electrical panels requiring combination AFCI protection
• Light commercial electrical installations
• 120V branch circuit applications
• Bedroom, living area, and other circuits where AFCI protection is required
• Replacement of existing 15 Amp Homeline CAFI breakers
• Electrical maintenance projects requiring matching breaker specifications
• Applications requiring a pigtail neutral AFCI breaker configuration
