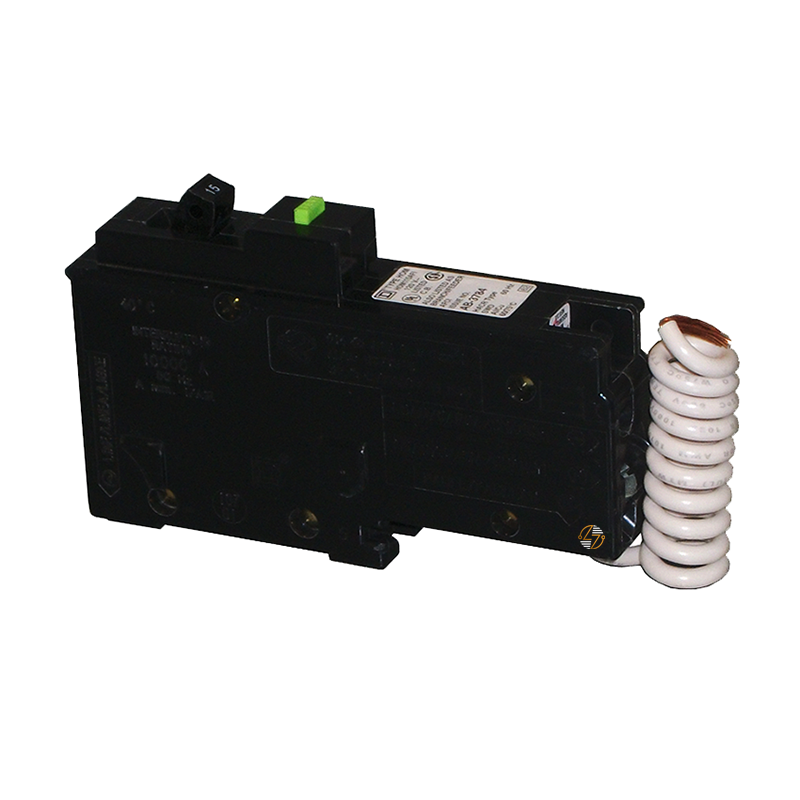

HOM115AFI - 15 Amp Circuit Breaker

HOM115AFI - 15 Amp Circuit Breaker

The HOM115AFI Square D Homeline arc-fault circuit interrupter (AFCI) circuit breaker is a 15-amp, single-pole breaker designed for use in compatible Homeline load centers that require arc-fault protection. This plug-in circuit breaker combines standard branch-circuit protection with arc-fault detection capabilities to help protect your connected circuits in accordance with applicable electrical requirements. Designed for residential and light commercial applications, the HOM115AFI provides a practical replacement option when maintaining the original Homeline panel configuration is important.

Key Features and Benefits

• 15 Amp single-pole arc fault circuit breaker
• Designed for compatible Homeline load centers
• Provides arc fault circuit protection in accordance with NEC and UL 1699 requirements
• Plug-in mounting design for matching panel applications
• 120VAC branch circuit protection
• Includes pigtail neutral connection
• Screw clamp terminal connection
• Accepts copper and aluminum conductors
• Occupies one panel space
• Maintains existing Homeline panel form, fit, and functionality


Technical Specifications

• Catalog Number: HOM115AFI

• Product Type: Miniature Circuit Breaker / Arc Fault Circuit Interrupter

• Product Range: Homeline

• Amperage Rating: 15 Amps

• Voltage Rating: 120VAC

• Poles: 1

• Mounting Type: Plug-In

• Circuit Breaker Type: Arc Fault (AFCI)

• Short Circuit Current Rating: 10kA

• Number of Spaces: 1

• Ratings: HACR Rated

• Connection Type: Screw Clamp Terminals

• Neutral Connection: Pigtail Neutral

• Wire Range: 1 x 14 AWG–8 AWG Copper/Aluminum

• Tightening Torque: 35.4 lb-in (4.0 N·m)

• Ambient Operating Temperature: 104°F (40°C)

• Height: 3.13 in (79.50 mm)

• Width: 1 in (25.4 mm)

• Depth: 2.98 in (75.69 mm)

• Net Weight: 0.639 lb (0.290 kg)

• GTIN: 785901301318


Material Compliance and Certifications

The HOM115AFI Square D Homeline arc fault circuit breaker is UL Listed and designed to meet applicable AFCI protection requirements, including UL 1699 arc fault circuit interrupter standards. It is intended for installation in compatible Homeline load centers and should be installed by qualified electrical personnel in accordance with applicable electrical codes and safety practices.

The product is also listed as TAA Compliant according to the provided manufacturer specifications.

Where It Works Best

• Compatible Homeline load centers
• Residential electrical panels requiring AFCI protection
• Light commercial electrical installations
• 120V branch circuit applications
• Bedrooms, living areas, and other circuits where AFCI protection is required
• Replacement of existing 15 Amp Homeline AFCI breakers
• Electrical maintenance projects requiring matching breaker specifications
• Applications requiring a pigtail neutral AFCI breaker configuration
