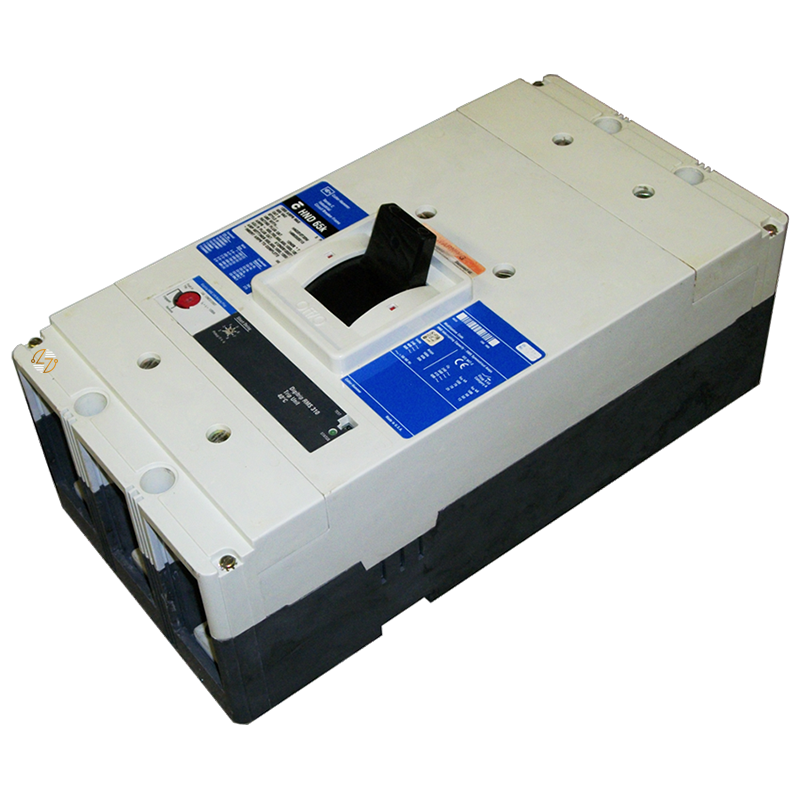

HND3800T36W 800A Circuit Breaker

HND3800T36W 800A Circuit Breaker

The Eaton HND3800T36W Circuit Breaker is a premier component in the Series C electronic molded case circuit breaker family. Engineered for reliability and safety, this NG-frame circuit breaker is designed to deliver exceptional performance in high-demand applications. With its Digitrip 310 RMS electronic LSIG trip unit, this three-pole breaker offers advanced protection features that ensure your electrical systems operate smoothly and safely.

Key Features and Benefits:

• High Interrupting Capacity: The HND3800T36W boasts an impressive interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, making it suitable for a wide range of industrial and commercial applications.
• Advanced Protection: Equipped with the Digitrip 310 RMS electronic LSIG trip unit, this breaker provides long-time, short-time, instantaneous, and ground fault protection, ensuring comprehensive safeguarding of your electrical circuits.
• Robust Construction: Built with high-quality materials, the HND3800T36W is designed to withstand rigorous operating conditions, providing durability and longevity.
• Compact Design: Despite its powerful capabilities, the breaker maintains a compact size, with dimensions of 5.5 inches in depth, 8.25 inches in height, and 8.25 inches in width, allowing for flexible installation options.

Technical Specifications:

• Catalog Number: HND3800T36W
• Series: C
• Frame Type: NG
• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Interrupting Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Poles: Three-pole
• Weight: 50.35 lb
• Warranty: One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first.

Material Compliance and Certifications:

• Compliance: The Eaton HND3800T36W complies with stringent industry standards and certifications, ensuring it meets the highest safety and performance requirements. It is UL listed and HACR rated, providing assurance of its quality and reliability.

Suitability:

• Ideal for use in industrial, commercial, and high-demand environments, the Eaton HND3800T36W Circuit Breaker is perfect for protecting electrical systems in manufacturing plants, commercial buildings, and critical infrastructure. Its high interrupting capacity and advanced protection features make it an excellent choice for ensuring the safety and reliability of your electrical installations.
