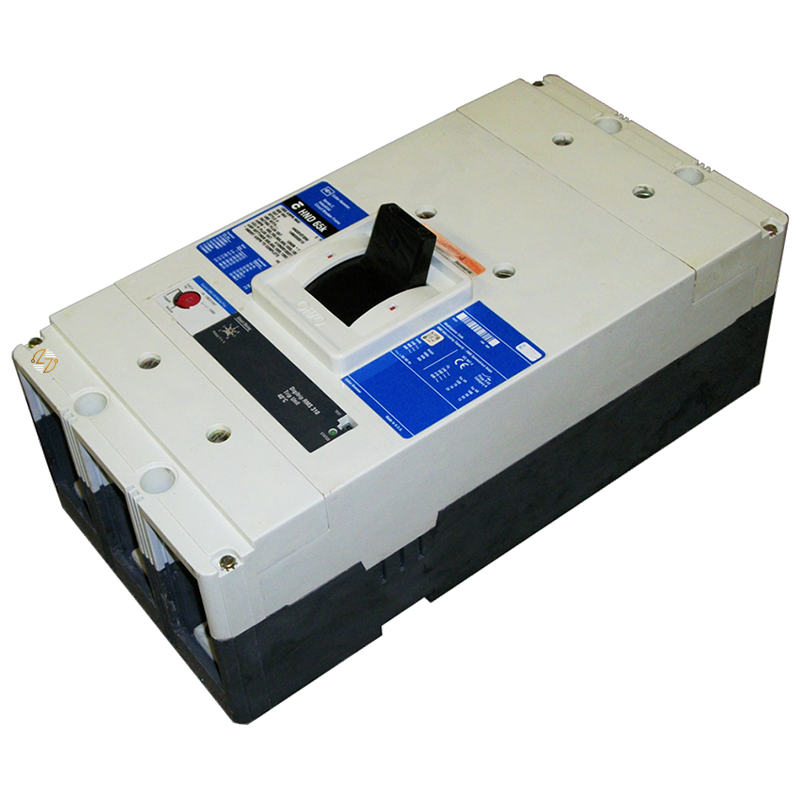

HND3800T35W 800A Circuit Breaker

HND3800T35W 800A Circuit Breaker

The Eaton HND3800T35W is a top-of-the-line electronic molded case circuit breaker from the prestigious Series C NG-frame lineup. Designed for robust performance and reliability, this circuit breaker is equipped with the advanced Digitrip 310 RMS electronic LSG trip unit, ensuring precise and dependable protection for your electrical systems. This three-pole breaker boasts an impressive 800A rating and can handle up to 600 Vac, making it ideal for a wide range of industrial and commercial applications. With a remarkable interrupt rating of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, it is engineered to manage high fault currents effectively, providing superior safety and performance. The Eaton HND3800T35W is built without terminals, ensuring seamless integration into your existing electrical setup.

Key Features and Benefits:

• Advanced Protection: The Digitrip 310 RMS electronic LSG trip unit delivers precise and reliable protection, safeguarding your electrical systems against overloads, short circuits, and ground faults.
• High Interrupting Capacity: With an interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, this circuit breaker is capable of handling high fault currents, ensuring maximum safety.
• Robust Design: Constructed with a durable NG-frame, the HND3800T35W is designed to withstand the rigors of industrial environments, providing long-lasting performance.
• Flexible Integration: The breaker’s design without terminals allows for easy installation and integration into various electrical systems.

Technical Specifications:

• Catalog Number: HND3800T35W
• Series: Eaton Series C
• Frame Type: NG
• Trip Type: Digitrip 310 RMS, Electronic LSG
• Poles: Three-pole
• Amperage Rating: 800A
• Voltage Rating: 600 Vac
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Dimensions: 5.5 in (length), 8.25 in (height), 8.25 in (width)
• Weight: 50.6 lb
• Rating: 80% rated
• Compliance: HACR Rated, UL listed

Material Compliance and Certifications:

• Certifications: UL listed, ensuring adherence to rigorous safety and performance standards.
• Compliance: Complies with Eaton’s Selling Policy 25-000, offering a one-year warranty from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Suitability:

• The Eaton HND3800T35W circuit breaker is ideal for industrial and commercial applications that require reliable protection and high interrupting capacity. Its advanced electronic trip unit makes it suitable for systems with variable load conditions, ensuring optimal performance and safety.

The Eaton HND3800T35W Circuit Breaker is more than just a component; it's a crucial safeguard for your electrical systems, designed to offer peace of mind through its robust performance and protection features. Explore more about this essential circuit breaker today and ensure your systems remain secure and compliant.
