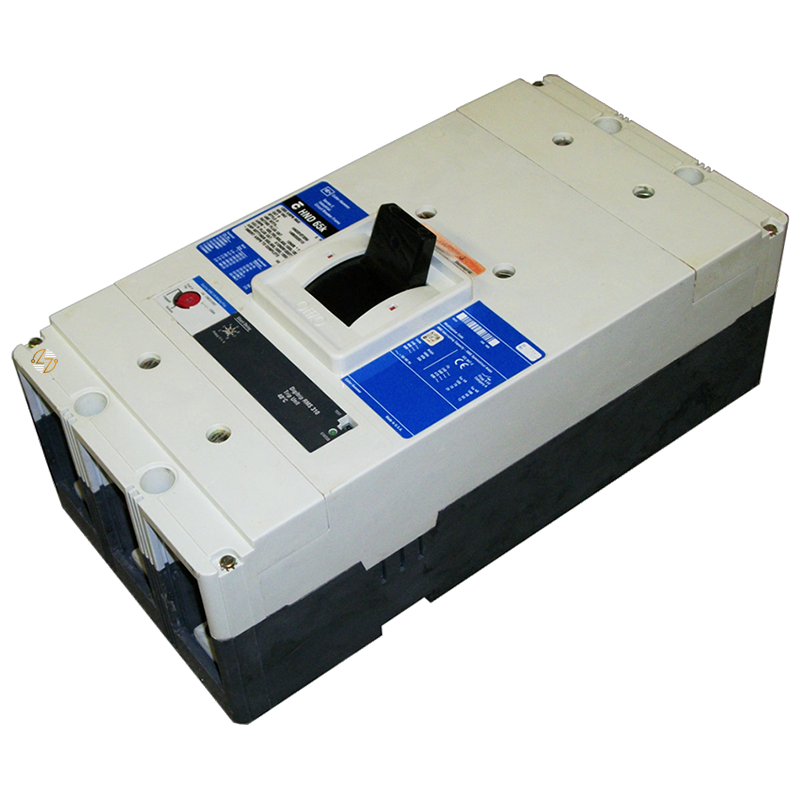

HND312T32W - 1200Amp Circuit Breaker

HND312T32W - 1200Amp Circuit Breaker

The HND312T32W Eaton Series C electronic molded-case circuit breaker is a 1200-amp, three-pole breaker designed for your electrical systems where matching the existing equipment configuration is the priority. It is commonly used in replacement and maintenance work involving compatible Eaton Series C installations, helping keep the original system layout and breaker specifications consistent.

Key Features and Benefits

• 1200 Amp three-pole Eaton Series C electronic molded case circuit breaker
• Digitrip 310 electronic LSI trip unit
• Long-Time, Short-Time, and Instantaneous protection functions
• Rated for 600VAC electrical systems
• 80% rated breaker configuration
• HND breaker type with NG frame
• HACR rated
• 50–60 Hz frequency rating
• Supplied without terminals


Technical Specifications

• Catalog Number: HND312T32W

• Manufacturer: Eaton

• Product Type: Electronic Molded Case Circuit Breaker

• Series: Series G

• Circuit Breaker Type: HND

• Frame: NG

• Trip Unit: Digitrip 310

• Trip Type: Electronic LSI

• Amperage Rating: 1200 Amps

• Voltage Rating: 600VAC

• Poles: 3

• Rating: 80%

• Frequency Rating: 50–60 Hz

• Interrupt Rating:
  • 65kAIC at 480VAC
  • 100kAIC at 240VAC
• Terminals: Without terminals

• Dimensions: 8.25"W x 8.25"H x 5.5"D

• Product Weight: 49.25 lbs

• UPC: 786679252741


Material Compliance and Certifications

The HND312T32W is an Eaton Series C electronic molded-case circuit breaker designed for use in compatible electrical distribution systems. It carries an HACR rating and is intended for installations where maintaining the original breaker specifications and system compatibility is important. Installation should be performed by qualified electrical personnel in accordance with applicable electrical codes and safety requirements.

Where It Works Best

• Eaton Series C electrical distribution equipment
• Industrial power distribution systems
• Commercial electrical installations
• Existing HND frame breaker applications
• Replacement projects requiring a 1200 Amp three-pole breaker
• Systems using Digitrip 310 electronic trip protection
• Equipment requiring specific 240VAC or 480VAC interrupt ratings
