HMDL3800L - 800Amp Circuit Breaker

HMDL3800L - 800Amp Circuit Breaker

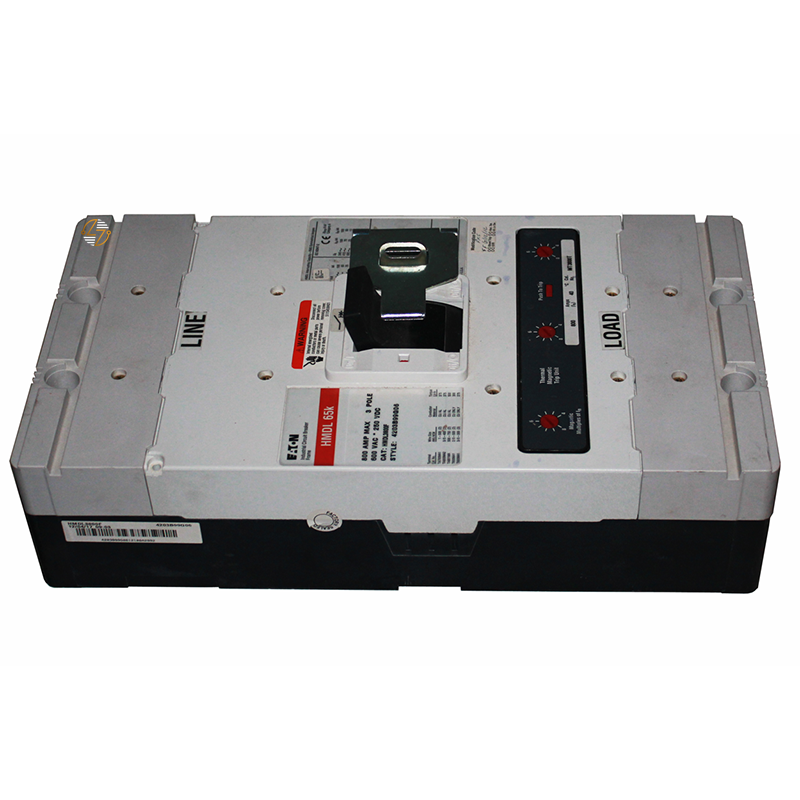

The Eaton HMDL3800L is an 800A, three-pole molded-case circuit breaker from the Series C family, designed for your compatible electrical distribution equipment that requires an HMDL breaker type with an MDL frame. This complete breaker features a T186 trip type and carries interrupt ratings of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC.

Key Features and Benefits

• 800A amperage rating: Designed for compatible electrical equipment requiring an 800-amp molded case circuit breaker.
• Three-pole configuration: Suitable for applications requiring a three-pole breaker arrangement.
• Eaton Series C design: Part of the Series C molded case circuit breaker family.
• HMDL breaker type with MDL frame: Helps identify the correct breaker configuration for matching existing equipment.
• T186 trip type: Matches applications requiring this specific trip configuration.
• Complete breaker assembly: Supplied as a complete molded case circuit breaker.


Technical Specifications

• Catalog Number: HMDL3800L

• Manufacturer: Eaton

• Product Name: Eaton Series C complete molded case circuit breaker

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HMDL

• Frame: MDL

• Circuit Breaker Frame Type: Complete breaker

• Amperage Rating: 800 A

• Number of Poles: Three-pole

• Trip Type: T186

• Terminals: Included Line and Load Lugs
• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Product Length/Depth: 18.25 in.

• Product Height: 8 in.

• Product Width: 10.75 in.

• Product Weight: 30.4 lb

• UPC: 782114586082

• Certification: UL Listed


Material Compliance and Certifications

The Eaton HMDL3800L is UL Listed, providing the listed certification information for applications requiring UL Listed circuit breakers.

The supplied manufacturer specifications do not identify any additional material compliance certifications for this catalog number. Any project-specific requirements involving environmental ratings, material restrictions, or additional standards should be verified separately.

Where It Works Best

The Eaton HMDL3800L 800A molded case circuit breaker is best suited for existing electrical distribution equipment designed for an Eaton Series C HMDL breaker with an MDL frame. It is a good fit for maintenance and replacement situations where keeping the existing breaker configuration is important.

Before installation, confirm the complete specification match. Verify that the application requires an 800A HMDL breaker, an MDL frame, a three-pole configuration, a T186 trip type, and the listed interrupt ratings for the system voltage.
