HMDL3800F 800Amp Max. *Frame Only*

HMDL3800F 800Amp Max. *Frame Only*

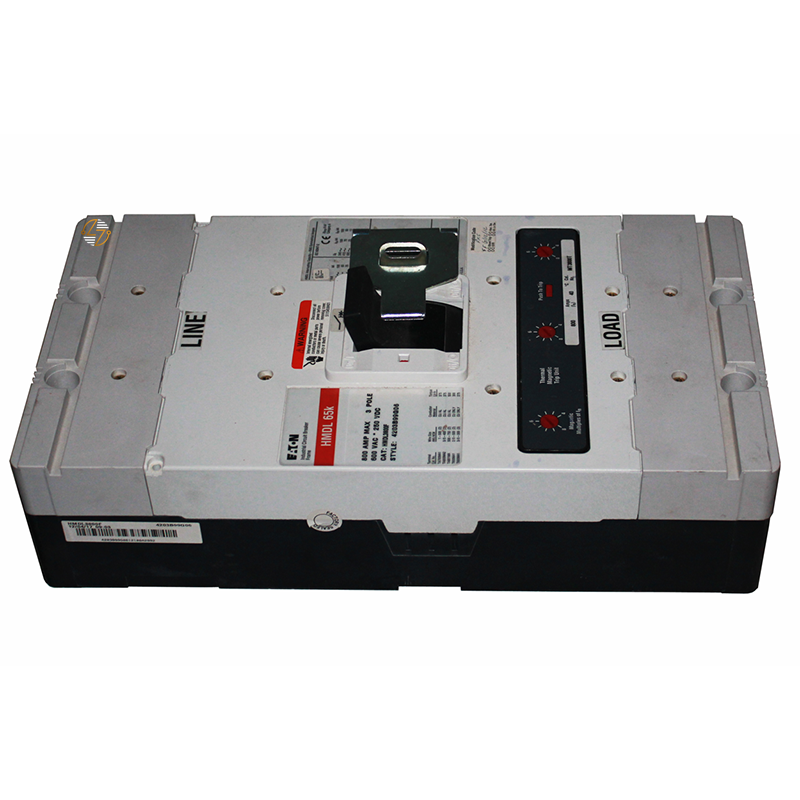

When your large electrical distribution system needs a replacement breaker frame, matching the original equipment specifications is the first step. The correct frame size, breaker family, pole configuration, and interrupting ratings all need to line up with the existing installation. The Eaton HMDL3800F Series C molded case circuit breaker frame is an 800 Amp, 3-pole frame-only breaker assembly designed for applications where maintaining the original equipment configuration and compatibility is important.

Key Features and Benefits

• Eaton Series C HMDL frame molded case circuit breaker frame
• 800 Amp frame rating
• Three-pole configuration
• Frame-only design for compatible trip unit selection
• Part of the Eaton Series C MDL breaker family
• Designed for compatible MDL frame breaker assemblies
• Helps maintain existing electrical equipment configuration
• Useful for replacement and maintenance applications
• Built to last in commercial and industrial environments


Technical Specifications

• Catalog Number: HMDL3800F

• Manufacturer: Eaton

• Product Type: Molded Case Circuit Breaker Frame

• Series: Series C

• Circuit Breaker Type: HMDL

• Frame Type: MDL

• Configuration: Frame Only

• Amperage Rating: 800 Amps

• Number of Poles: 3

• Interrupt Rating:
  • 100kAIC at 240VAC
  • 65kAIC at 480VAC
• Dimensions: 18.6 in. D × 8.3 in. H × 11.0 in. W

• Approximate Weight: 26.2 lbs.


Material Compliance and Certifications

The Eaton HMDL3800F Series C molded case circuit breaker frame is UL Listed and intended for use with compatible Eaton electrical distribution equipment. Installation should follow the National Electrical Code (NEC), applicable local electrical requirements, and manufacturer guidelines.

Where It Works Best

• Eaton Series C MDL frame breaker applications
• Large commercial electrical distribution systems
• Industrial facilities
• Manufacturing plants
• Power distribution assemblies
• Electrical switchgear applications
• Existing Eaton MDL frame installations
• Replacement and maintenance projects
• Applications requiring an 800 Amp, 3-pole molded case circuit breaker frame
