HMDL3700L 700A Circuit Breaker

HMDL3700L 700A Circuit Breaker

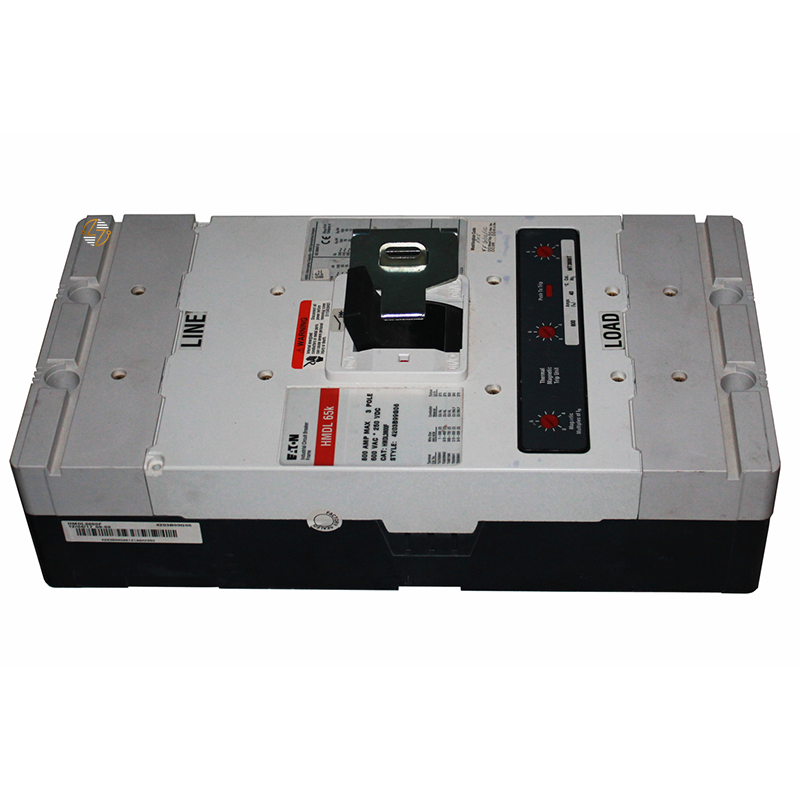

The Eaton HMDL3700L Series C molded case circuit breaker is engineered to provide exceptional performance and reliability in demanding electrical applications. Designed with a robust three-pole configuration, it supports a substantial rated current of 700A, making it ideal for heavy-duty industrial and commercial power distribution systems. Its impressive interrupting capacity of 100kAIC at 240VAC and 65kAIC at 480VAC ensures superior protection in high-fault environments.

Key Features and Benefits:

• High Interrupting Capacity: Capable of handling up to 100kAIC at 240VAC and 65kAIC at 480VAC, providing robust protection in high-fault conditions.
• Durable Construction: Engineered for the rigorous demands of industrial applications, ensuring long-lasting performance and reliability.
• Easy Installation: Designed with standard dimensions and weight for straightforward installation and integration into existing systems.

Technical Specifications:

• Rated Current: 700A
• Poles: 3
• Voltage Rating: 240/480VAC
• Interrupting Rating: 100kAIC at 240VAC, 65kAIC at 480VAC
• Frequency: 50/60 Hz
• Dimensions (L x W x H): 18.25 x 8 x 10.75 inches
• Weight: 35 lbs
• Special Features: Line and Load Lug Terminals

Material Compliance and Certifications:

• UL Listed: Meets stringent safety and performance standards for reliable operation.
• RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring minimal environmental impact.

Suitability:

• The Eaton HMDL3700L circuit breaker is ideally suited for use in commercial and industrial settings where high reliability and protection are paramount. Its high interrupting capacity makes it particularly suitable for environments with significant electrical load and potential fault conditions, such as manufacturing facilities, data centers, and large commercial buildings.
