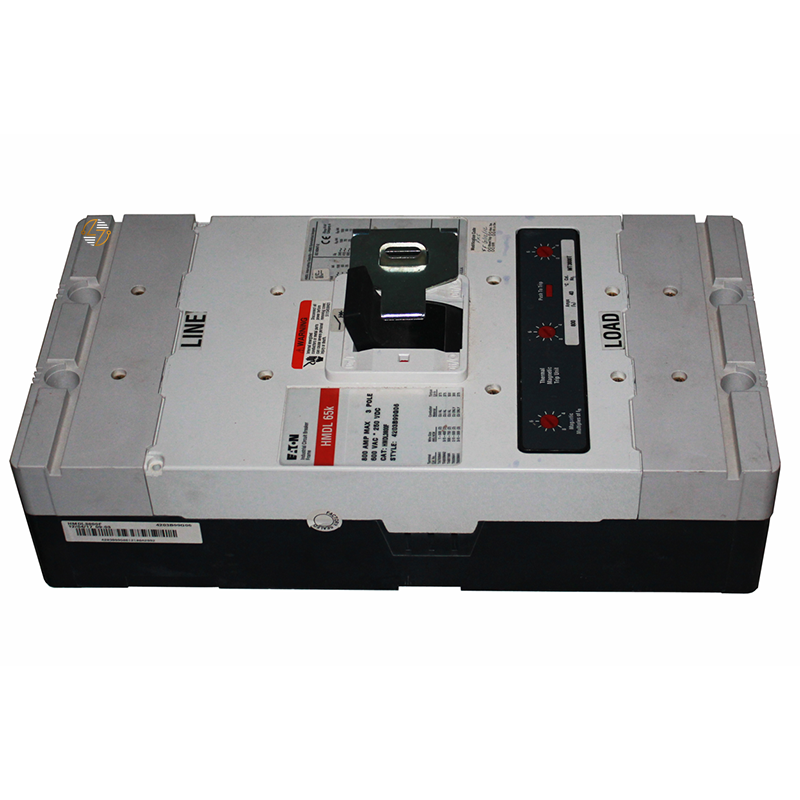

HMDL3700 700Amp Circuit Breaker

HMDL3700 700Amp Circuit Breaker

The Eaton HMDL3700 is a top-tier molded case circuit breaker from the renowned Eaton Series C line, designed to deliver reliable and robust protection in demanding electrical applications. This HMDL-frame breaker offers a fixed thermal and magnetic trip type, ensuring precise and consistent operation. It features a three-pole design, capable of handling a substantial 700A current. Its impressive interrupting capacity is rated at 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, making it suitable for high-performance environments.

Key Features and Benefits:

• High Interrupting Capacity: The HMDL3700's 100 kAIC at 240 Vac and 65 kAIC at 480 Vac ratings ensure it can handle large fault currents, providing superior protection for your electrical system.
• Fixed Thermal and Magnetic Trip: These fixed trip settings ensure consistent and reliable performance, reducing the risk of malfunction and enhancing system stability.
• Robust Design: Built to Eaton's rigorous standards, this circuit breaker is designed to withstand harsh conditions, making it ideal for industrial and commercial applications.
• Ease of Installation: Its compact size and straightforward installation process save time and effort during setup, minimizing downtime.

Technical Specifications:

• Poles: Three
• Amperage Rating: 700A
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Dimensions: 18.25 in (L) x 8 in (H) x 10.75 in (W)
• Weight: 31.08 lbs
• Frequency: 50/60 Hz
• Trip Type: Fixed Thermal, Fixed Magnetic

Material Compliance and Certifications:

• Compliance: The Eaton HMDL3700 circuit breaker adheres to stringent material compliance and safety standards. It is UL listed, ensuring it meets rigorous industry benchmarks for safety, reliability, and performance. This certification is a testament to Eaton's commitment to delivering high-quality electrical components that provide peace of mind and operational security.

Suitability:

• The HMDL3700 is perfectly suited for a range of high-demand applications, including industrial plants, commercial buildings, and large-scale manufacturing facilities. Its high interrupting capacity and robust design make it an excellent choice for environments where reliable circuit protection is paramount. Whether you're upgrading an existing system or installing new electrical infrastructure, the Eaton HMDL3700 offers the performance and reliability you need.
