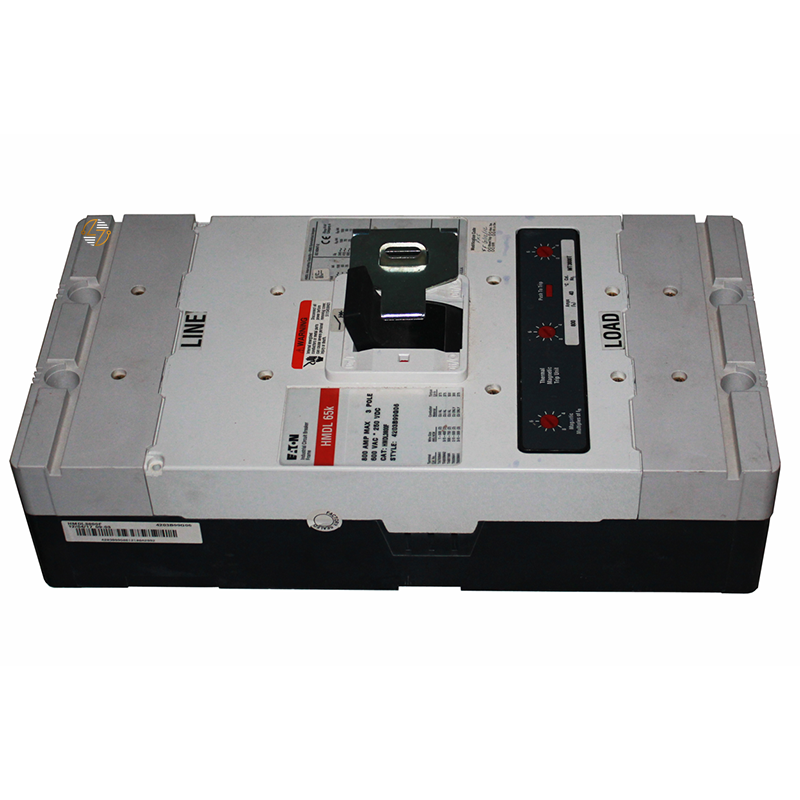

HMDL3600L - 600Amp Circuit Breaker

HMDL3600L - 600Amp Circuit Breaker

The Eaton HMDL3600L is a 600A, three-pole molded-case circuit breaker from the Series C family, designed for your compatible electrical distribution equipment that requires an HMDL breaker type with an MDL frame. The HMDL3600L provides clearly defined ratings and configuration details to help you verify compatibility with the equipment already in place. It is UL Listed and built for applications where maintaining the original breaker’s form, fit, and function is important.

Key Features and Benefits

• 600A amperage rating: Designed for compatible electrical systems requiring a 600-amp molded case circuit breaker.
• Three-pole configuration: Matches applications requiring a three-pole breaker arrangement.
• Eaton Series C design: Part of the Series C molded case circuit breaker family.
• HMDL breaker type with MDL frame: Helps identify the correct breaker configuration for compatible equipment.
• T186 trip type: Provides a specific trip configuration for matching existing applications.
• 50–60 Hz frequency rating: Suitable for compatible electrical systems operating within this frequency range.
• Complete breaker assembly: Supplied as a complete molded case circuit breaker.


Technical Specifications

• Catalog Number: HMDL3600L

• Manufacturer: Eaton

• Product Name: Eaton Series C complete molded case circuit breaker

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HMDL

• Frame: MDL

• Amperage Rating: 600 A

• Number of Poles: Three-pole

• Trip Type: T186

• Frequency Rating: 50–60 Hz

• Terminals: Included Line and Load Lugs
• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Product Length/Depth: 8 in.

• Product Height: 8 in.

• Product Width: 8 in.

• Product Weight: 30 lb

• UPC: 782114586068

• Certification: UL Listed


Material Compliance and Certifications

The Eaton HMDL3600L is UL Listed, providing a documented certification reference for compatible electrical installations.

The supplied manufacturer specifications do not identify any additional material compliance certifications for this catalog number. If an application requires specific environmental, material, or regulatory compliance information, those requirements should be confirmed separately.

Where It Works Best

The Eaton HMDL3600L is best suited for existing electrical distribution equipment that requires a 600A Series C HMDL molded-case circuit breaker with an MDL frame. It is especially relevant for maintenance and replacement projects where keeping the existing breaker configuration is important.
