HMDL3600 - 600Amp Circuit Breaker

HMDL3600 - 600Amp Circuit Breaker

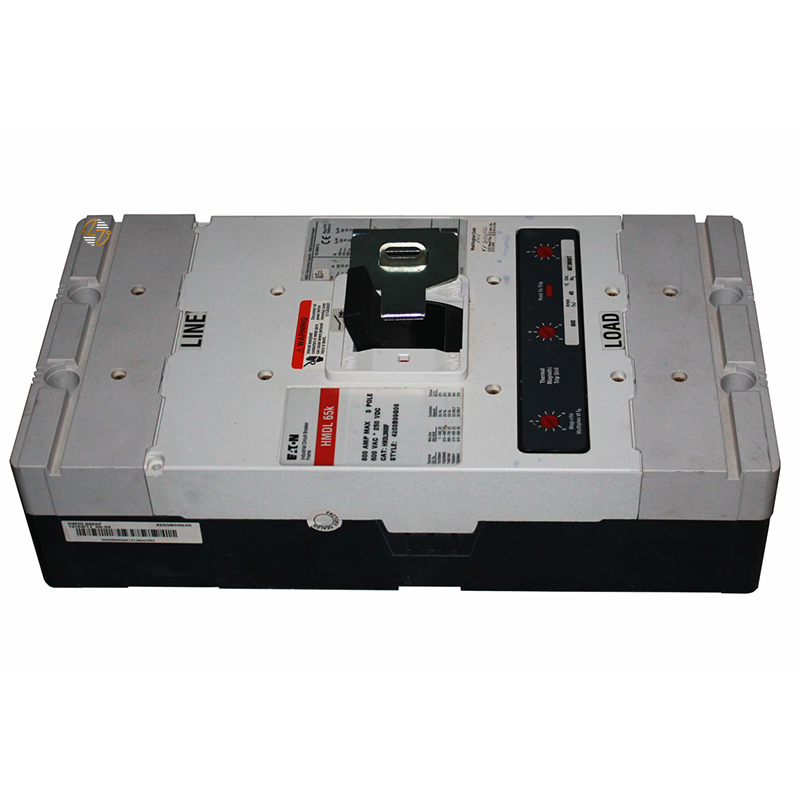

Finding the right replacement for your breaker is about more than matching the amp rating. The Eaton HMDL3600 is a 600A, three-pole molded case circuit breaker from the Series C family, built with the MDL frame and HMDL breaker configuration.

Key Features and Benefits

• 600A Rating for compatible molded case circuit breaker applications.
• Three-pole design for electrical systems requiring a three-pole breaker.
• Eaton Series C construction for equipment designed around this breaker family.
• HMDL breaker type with MDL frame for easier identification during replacement projects.
• T186 trip type for applications requiring this specific trip configuration.
• 50–60 Hz frequency rating for compatible electrical systems.


Technical Specifications

• Catalog Number: HMDL3600

• Manufacturer: Eaton

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HMDL

• Frame: MDL

• Frame Type: Complete breaker

• Amperage Rating: 600 A

• Number of Poles: Three-pole

• Trip Type: T186

• Frequency Rating: 50–60 Hz

• Terminal: Included Load lugs
• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Product Length/Depth: 8 in.

• Product Height: 8 in.

• Product Width: 8 in.

• Product Weight: 30 lb

• UPC: 782114586068

• Certification: UL Listed


Material Compliance and Certifications

The Eaton HMDL3600 is UL Listed, providing the certification information needed when evaluating the breaker's compatibility with electrical equipment.

The supplied manufacturer specifications do not list any additional material compliance certifications for this catalog number. If a project requires specific environmental or material standards, those requirements should be confirmed separately.

Where It Works Best

The Eaton HMDL3600 is a good fit for existing electrical distribution equipment that requires a 600A Series C HMDL molded case circuit breaker with an MDL frame. It is especially useful in maintenance and replacement situations where keeping the existing breaker configuration is important.

A proper replacement check should include more than amperage. Confirm that the equipment requires the same HMDL breaker type, MDL frame, three-pole configuration, T186 trip type, operating frequency, voltage requirements, and interrupt Rating.
