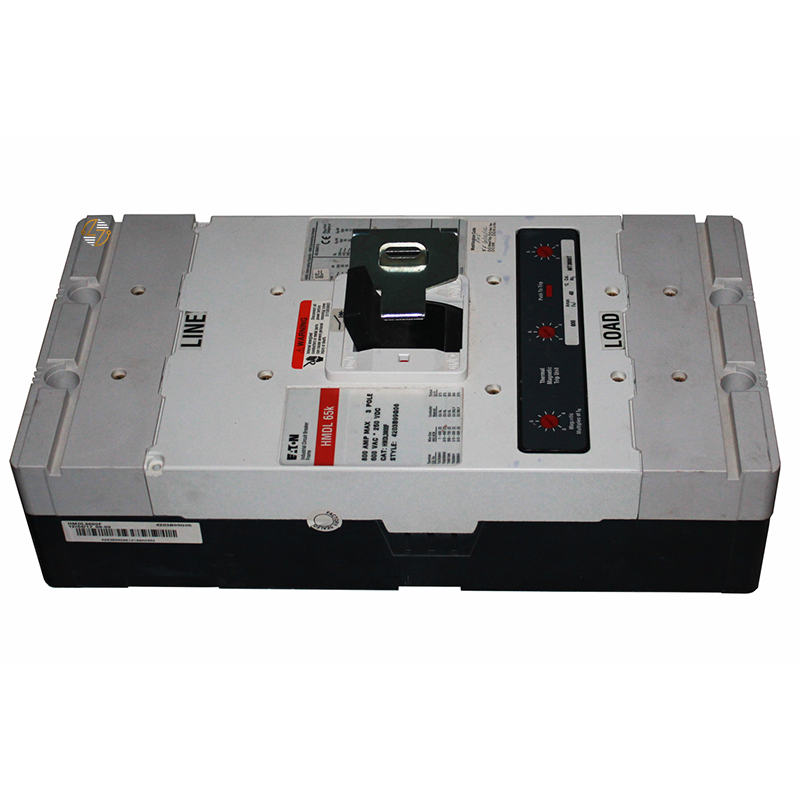

HMDL3500 - 500Amp Circuit Breaker

HMDL3500 - 500Amp Circuit Breaker

When you need an Eaton HMDL3500 for a compatible electrical system, getting the details right matters. This Series C molded case circuit breaker is a complete 500A, three-pole HMDL breaker built on the MDL frame and equipped with a T186 fixed thermal, fixed magnetic trip.

Key Features and Benefits

• 500A rating: Designed for applications requiring a 500-amp molded case circuit breaker.
• Three-pole design: Matches equipment configured for a three-pole breaker.
• Series C, HMDL configuration: Intended for compatible systems using this Eaton breaker family and type.
• MDL frame: An important specification to verify when replacing an existing breaker.
• T186 trip type: Features a fixed thermal, fixed magnetic trip configuration.
• 50–60 Hz operation: Suitable for systems operating within the specified frequency range.


Technical Specifications

• Catalog Number: HMDL3500

• Manufacturer: Eaton

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HMDL

• Frame: MDL

• Frame Type: Complete breaker

• Amperage Rating: 500 A

• Number of Poles: Three-pole

• Trip Type: T186

• Trip Configuration: Fixed thermal, fixed magnetic

• Frequency Rating: 50–60 Hz

• Terminal: Included Load lugs

• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• UPC: 782114586051

• Certification: UL Listed


Material Compliance and Certifications

The Eaton HMDL3500 is UL Listed. This is an important point to verify when the equipment or installation calls for a circuit breaker carrying that certification.

No additional material-compliance designations were provided in the supplied manufacturer specifications, so they should not be assumed.

Where It Works Best

The HMDL3500 makes the most sense in existing electrical distribution equipment designed for an Eaton Series C HMDL breaker with an MDL frame. That makes it especially relevant for maintenance and replacement situations where the objective is to preserve the original equipment’s required breaker configuration rather than change it.
