HMCP400X5 - 400Amp Motor Circuit Protector

HMCP400X5 - 400Amp Motor Circuit Protector

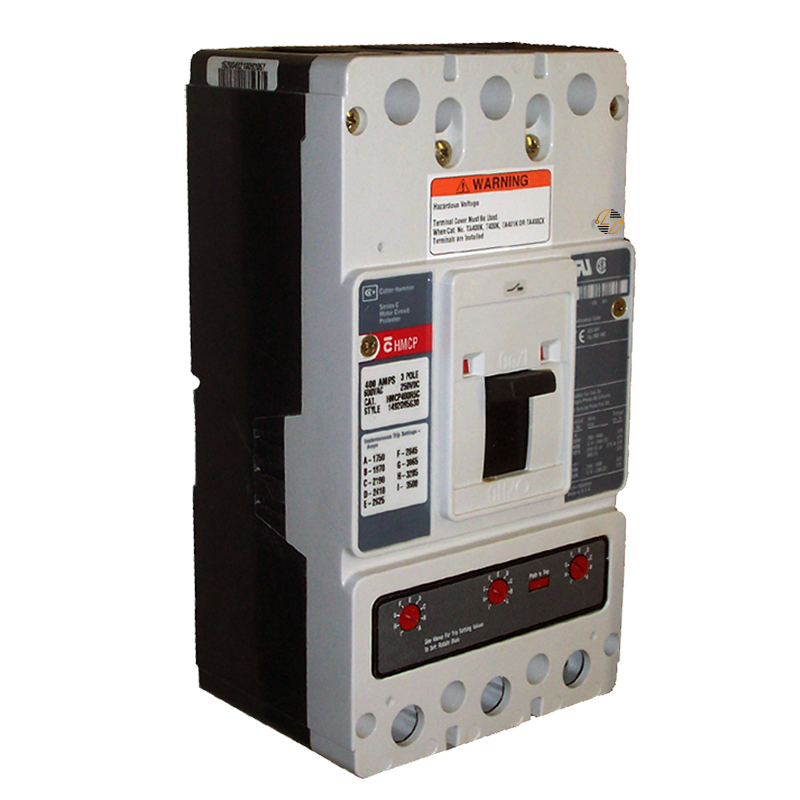

When you’re replacing a motor protection component in existing equipment, the details matter. The Eaton HMCP400X5 is a 400-amp, three-pole Series C motor circuit protector built for applications requiring a J-K frame and a 2000–4000A magnetic trip range. It is rated for a maximum of 600V AC or 250V DC and uses line and load terminals.

Key Features and Benefits

• 400A rating for compatible motor protection applications
• Three-pole design for equipment requiring this pole configuration
• Part of Eaton's Series C product family
• J-K frame configuration
• 2000–4000A magnetic trip range
• Rated for up to 600V AC and 250V DC
• Equipped with line and load terminals
• Well suited for maintaining compatible existing and legacy equipment


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP400X5

• Type: Motor circuit protector

• Product Type: Molded case circuit breaker accessory

• Series: Series C

• Amperage Rating: 400 A

• Number of Poles: 3

• Frame Size: J-K

• Magnetic Trip Range: 2000–4000 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Height: 10.13 in

• Width: 5.5 in

• Length/Depth: 4.1 in

• Weight: 11.5 lb

• UPC: 786679151204

• Certifications: UL Listed, CSA Certified


Material Compliance and Certifications

The HMCP400X5 is UL Listed and CSA Certified. Those certifications can be important when you're matching a replacement component to the requirements of an existing electrical system.

For applications with additional material-compliance requirements, check the applicable manufacturer documentation for the specific installation. Compatibility should always be determined by the complete set of electrical and physical specifications rather than by the device's appearance alone.

Where It Works Best

The HMCP400X5 makes the most sense in commercial and industrial motor control applications designed around its particular specifications. That means equipment calling for a 400A, three-pole Series C motor circuit protector with a J-K frame and 2000–4000A magnetic trip range.

It can be especially useful when you're maintaining existing or legacy equipment and need to preserve the original component's form, fit, ratings, and intended function. In those situations, getting an exact match to the specification is far more important than simply finding something that looks similar.
