HMCP400R5C - 400Amp Motor Circuit Protector

HMCP400R5C - 400Amp Motor Circuit Protector

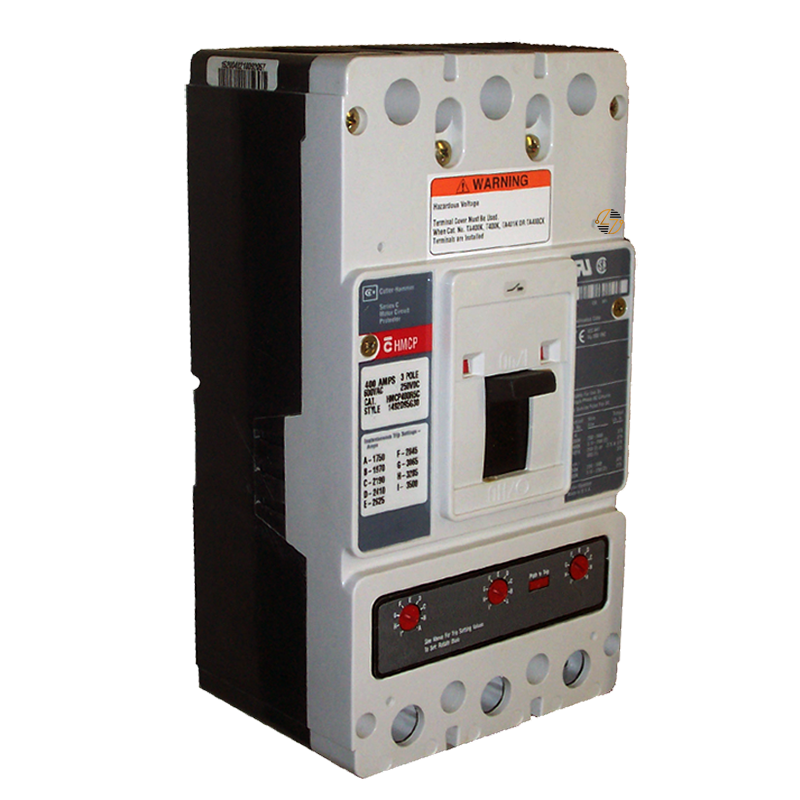

The HMCP400R5C is an Eaton Series C motor circuit protector rated for 400 amps and built for three-phase motor protection. With its J-K frame, three-pole design, and defined voltage and trip ratings, it is a practical replacement when your existing system already uses this Eaton HMCP configuration.

For replacement work, the details are important. The HMCP400R5C has a 1750–3500 amp magnetic trip range, helping protect compatible motor circuits from high-current faults. Its three-pole design protects all three phases with a single coordinated device.

Key Features and Benefits

• 400 Amp motor circuit protector for compatible motor applications
• Three-pole design for three-phase motor circuits
• Eaton Series C construction
• J-K frame configuration
• 1750–3500 A magnetic trip range
• Maximum rating of 600V AC and 250V DC
• Line and load terminals
• Non-aluminum terminal material
• Suitable for replacement applications requiring matching form, fit, and ratings
• Helps maintain the existing layout of compatible Eaton equipment


Technical Specifications

• Catalog Number: HMCP400R5C

• Manufacturer: Eaton

• Product Type: Molded case circuit breaker accessory/motor protection

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 400 A

• Number of Poles: 3

• Frame Size: J-K Frame

• Magnetic Trip Range: 1750–3500 A

• Maximum AC Voltage: 600V

• Maximum DC Voltage: 250V DC

• Terminals: Line and load

• Terminal Material: Non-aluminum

• UPC: 786679342602

• Product Length/Depth: 14 in

• Product Height: 6 in

• Product Width: 7 in

• Product Weight: 15 lb


Material Compliance and Certifications

The Eaton HMCP400R5C motor circuit protector is UL Listed and CSA Certified. These listings can be important when replacing components in equipment that requires specific certifications and electrical ratings.

Motor protection equipment should be selected based on the complete application, not amperage alone. Qualified electrical personnel should handle installation and servicing in accordance with applicable codes, equipment instructions, and site requirements.

Where It Works Best

• Motor circuits requiring a 400A motor circuit protector
• Compatible Eaton Series C equipment
• Applications designed for a J-K frame
• Three-phase systems needing a three-pole protector
• Systems operating within the 600V AC or 250V DC maximum rating
• Applications requiring a 1750–3500A magnetic trip range
• Maintenance and replacement work on existing motor control equipment
• Installations where matching the original form, fit, ratings, and terminal configuration matters
