HMCP400R5 - 400Amp Motor Circuit Protector

HMCP400R5 - 400Amp Motor Circuit Protector

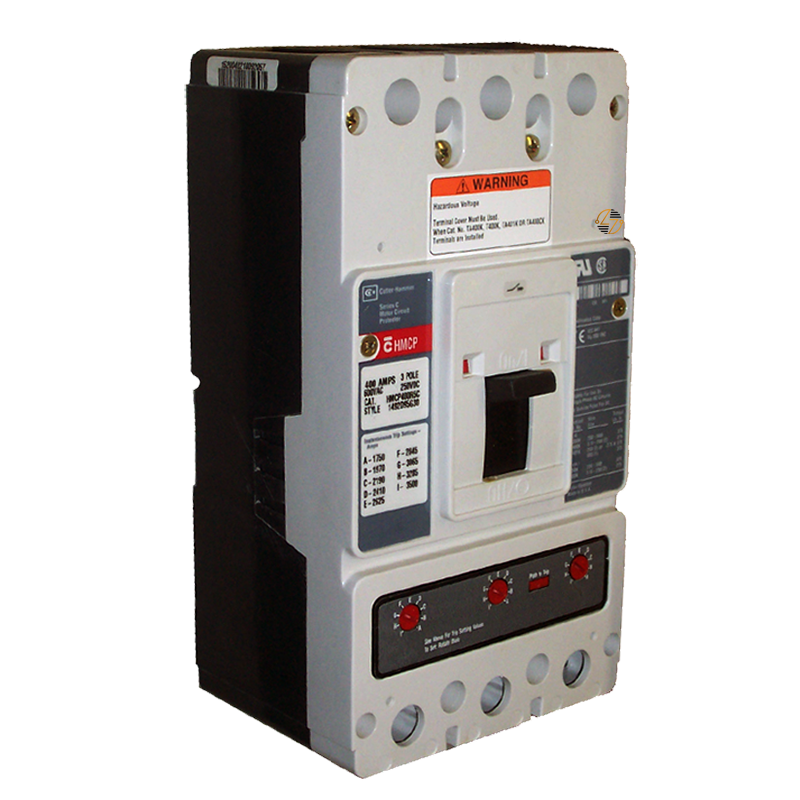

When you’re replacing a motor circuit protector, getting the details right matters. The Eaton HMCP400R5 is a 400A, three-pole Series C motor circuit protector built around a Frame J-K configuration. It has a 1750–3500A magnetic trip range and is rated for applications up to 600V AC or 250V DC. Line and load terminals are provided, and the unit measures 10.13 inches high, 5.5 inches wide, and 4.1 inches deep.

Key Features and Benefits

• 400A rating for compatible motor protection applications
• Three-pole design for equipment requiring this specific configuration
• Frame J-K construction for proper form-and-fit matching
• 1750–3500A magnetic trip range
• Rated for up to 600V AC and 250V DC
• Part of the Eaton Series C product family
• Equipped with line and load terminals
• Published dimensions make it easier to compare against an existing unit


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP400R5

• UPC: 786679342442

• Type: Motor circuit protector

• Product Type: Molded case circuit breaker accessory

• Series: Series C

• Amperage Rating: 400 A

• Frame Size: Frame J-K

• Number of Poles: Three-pole

• Magnetic Trip Range: 1750–3500 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Height: 10.13 in

• Width: 5.5 in

• Length/Depth: 4.1 in

• Weight: 11.5 lb


Material Compliance and Certifications

The HMCP400R5 is UL Listed and CSA Certified, providing installers and maintenance professionals with clear certification information when verifying the requirements of an existing application.

Compatibility shouldn’t be determined by amperage alone. When replacing an existing motor circuit protector, check the complete catalog number, frame size, number of poles, magnetic trip range, voltage rating, terminal arrangement, and physical dimensions. Matching those details helps preserve the intended form, fit, and function of the equipment.

Where It Works Best

The Eaton HMCP400R5 makes the most sense in motor protection equipment specifically designed for a 400A, three-pole, Series C Frame J-K motor circuit protector with a 1750–3500A magnetic trip range. It’s particularly relevant when maintaining existing or legacy electrical equipment and the job calls for matching the characteristics of the component already in service.
