HMCP400J5 - 400Amp Motor Circuit Protector

HMCP400J5 - 400Amp Motor Circuit Protector

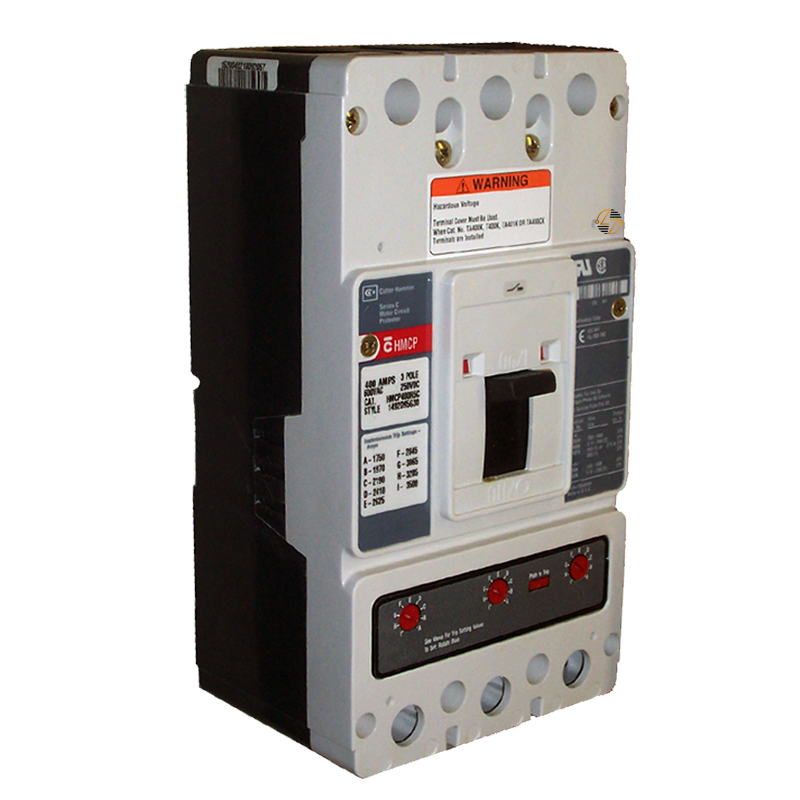

The Eaton HMCP400J5 Motor Circuit Protector is a high-performance solution specifically engineered for safeguarding motor circuits in industrial applications. With a current rating of 400 amps and the capability to operate at up to 600 V AC and 250 V DC, this protector is designed to handle demanding conditions, ensuring reliable motor protection. As part of Eaton's Series C lineup, the HMCP400J5 is built for durability and efficient performance, helping to prevent overloads and short circuits in motor-driven systems.

Key Features and Benefits:

• High Current Rating: Rated at 400 amps, the HMCP400J5 provides dependable protection for motor circuits across a range of industrial applications.
• Versatile Voltage Capacity: Handles up to 600 V AC and 250 V DC, offering compatibility with various power systems in industrial settings.
• Robust Construction: Designed with a durable, non-aluminum frame to withstand harsh conditions, ensuring long-lasting performance.
• Ease of Installation: Features line and load terminals for straightforward installation, reducing setup time and maintenance efforts.

Technical Specifications:

• Current Rating: 400 A
• Voltage Rating: 600 V AC, 250 V DC
• Frame Size: J-K
• Magnetic Trip Range: 875-1750 A
• Number of Poles: Three-pole
• Dimensions: 4.1 in (L) x 10.13 in (H) x 5.5 in (W)
• Weight: 11.5 lbs
• Series: C

Material Compliance and Certifications:

• Certifications: UL Listed and CSA Certified, indicating compliance with high safety and performance standards. These certifications reflect Eaton's commitment to providing reliable and secure products for industrial applications.

Suitability:

• The Eaton HMCP400J5 Motor Circuit Protector is an ideal choice for applications where motor protection is essential, including manufacturing plants, processing facilities, and heavy-duty industrial environments. Its robust construction and versatile voltage capacity make it suitable for protecting critical motors from electrical faults, ensuring operational efficiency and reducing the risk of downtime.
