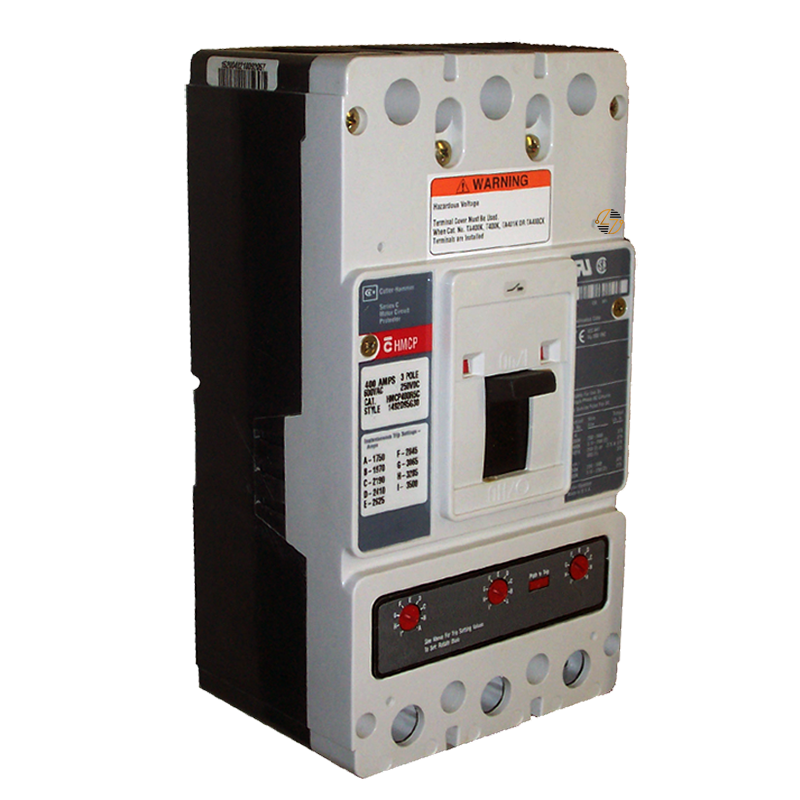

HMCP400D5 - 400Amp Motor Circuit Protector

HMCP400D5 - 400Amp Motor Circuit Protector

The Eaton HMCP400D5 is a high-performance motor circuit protector specifically engineered to offer reliable protection for motors in demanding industrial applications. With a robust 400A rating and three-pole configuration, this motor protector is part of Eaton’s dependable Series C lineup, making it a trusted choice for motor circuit protection. Designed with versatility in mind, it supports a magnetic trip range of 500-1000A and can handle up to 600V AC and 250V DC, ensuring compatibility with a wide range of electrical systems.

Key Features and Benefits:

• High Amperage Rating: With a 400A rating, the HMCP400D5 provides reliable protection for motors under demanding electrical loads, ideal for industrial settings.
• Wide Magnetic Trip Range: Adjustable from 500-1000A, allowing for tailored protection to meet specific motor application needs.
• Versatile Voltage Handling: Operates up to 600V AC and 250V DC, compatible with various power distribution systems.
• Durable Construction: Built for longevity and consistent performance in harsh industrial environments.
• Compact Design: Optimized for space-saving installations without compromising on performance.

Technical Specifications:

• Amperage Rating: 400A
• Frame Size: J-K
• Magnetic Trip Range: 500-1000A
• Voltage Rating: 600V AC / 250V DC
• Poles: Three-pole
• Series: Series C
• Dimensions: 4.1" (Depth) x 10.13" (Height) x 5.5" (Width)
• Weight: 11.5 lbs

Material Compliance and Certifications:

• UL Listed and CSA Certified: Indicates rigorous testing and adherence to high safety and quality standards, suitable for various industrial settings and compliant with local regulatory requirements.

Suitability:

• The Eaton HMCP400D5 motor circuit protector is ideal for industrial environments where reliable motor protection is essential. Its robust construction and adjustable magnetic trip range make it suitable for protecting critical motor-driven equipment, such as pumps, compressors, and conveyors, in manufacturing plants, processing facilities, and other heavy-duty settings. The HMCP400D5 ensures dependable motor protection, helping to maintain smooth operations and minimize downtime.

The Eaton HMCP400D5 is more than just a component; it’s a crucial safeguard for motor systems, providing peace of mind through reliable protection and robust performance.
