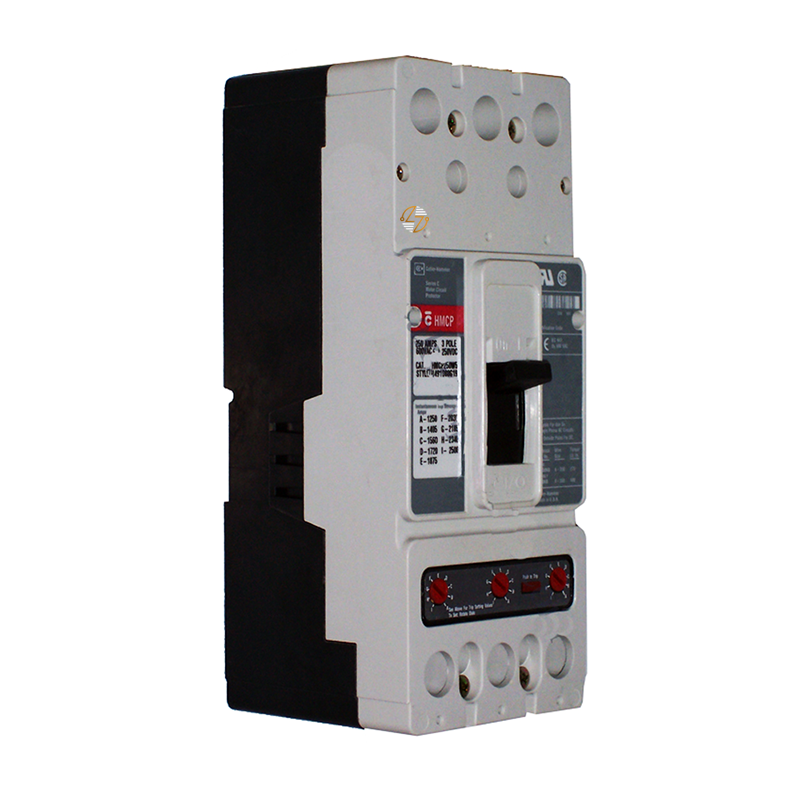

HMCP250W5C - 250Amp Motor Circuit Protector

HMCP250W5C - 250Amp Motor Circuit Protector

The Eaton HMCP250W5C is a high-performance motor circuit protector, designed to deliver reliable motor protection and overcurrent prevention in demanding industrial and commercial applications. This robust 250A, three-pole motor protector from Eaton’s Series C lineup offers precise and efficient protection, ensuring your operations run smoothly and safely. Whether upgrading existing systems or installing new equipment, the HMCP250W5C meets stringent standards for safety and reliability.

Key Features and Benefits:

• High Amperage Capacity: Rated at 250 amps, this motor circuit protector is ideal for managing substantial electrical loads in high-demand environments.
• Wide Magnetic Trip Range: With a magnetic trip range of 1250-2500 amps, it offers precise protection against overcurrent, safeguarding your equipment and minimizing potential downtime.
• Versatile Voltage Compatibility: Suitable for systems up to 600V AC and 250V DC, providing flexibility across various applications.
• Easy Installation: Designed for straightforward installation with line and load terminals, ensuring secure connections and reducing setup time.

Technical Specifications:

• UPC: 786679150368
• Amperage Rating: 250 Amps
• Frame Size: J-K
• Magnetic Trip Range: 1250-2500 Amps
• Voltage Rating: 600V AC, 250V DC
• Series: Series C
• Poles: Three-pole
• Dimensions: 4.06 in (L) x 10 in (H) x 4.13 in (W)
• Weight: 12.5 lbs
• Warranty: 1 year from installation or 18 months from shipment

Material Compliance and Certifications:

• Compliance: Constructed with high-quality, non-aluminum materials, ensuring durability and reliability. Certified by CSA and UL Listed, it meets stringent safety standards, making it suitable for critical industrial applications.

Suitability:

• The Eaton HMCP250W5C motor circuit protector is ideal for industrial applications where reliable motor protection is essential. Its robust design and high performance make it suitable for protecting motors and other critical equipment from overcurrent and electrical faults, ensuring continuous operation and minimizing the risk of damage. Suitable environments include manufacturing plants, commercial facilities, and large-scale electrical installations.

The Eaton HMCP250W5C is more than just a component; it’s a crucial safeguard for motor systems, providing peace of mind through dependable performance and protective features.
