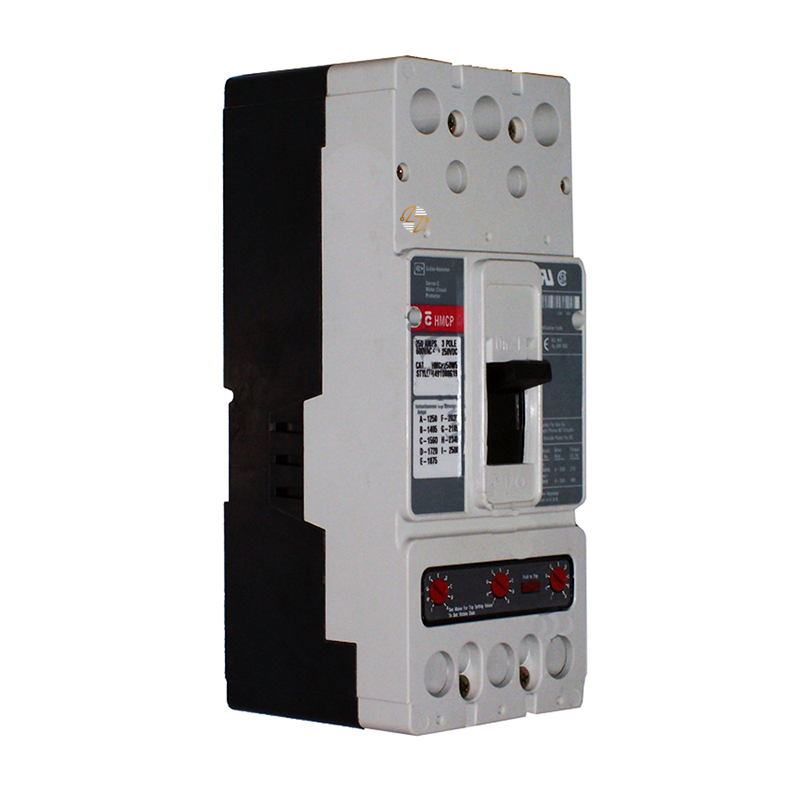

HMCP250L5C - 250Amp Motor Circuit Protector

HMCP250L5C - 250Amp Motor Circuit Protector

The Eaton HMCP250L5C is a robust motor circuit protector designed to deliver superior protection for motors in industrial applications. With a 250A rating and a three-pole configuration, this motor protector is part of Eaton’s reliable Series C line, providing exceptional performance and safety features. The HMCP250L5C is engineered for optimal functionality and durability, ensuring long-term operational stability and safety in demanding environments.

Key Features and Benefits:

• Motor Protection: Specifically designed to protect motors, this device offers precise motor protection with its integrated motor circuit protection capabilities.
• High Current Capacity: Capable of handling a magnetic trip range of 1125-2250A, making it suitable for high-power applications.
• Versatile Voltage Range: Supports up to 600V AC and 250V DC, providing flexibility across various electrical systems.
• Three-Pole Design: Ensures balanced power distribution and enhanced safety in three-phase systems.

Technical Specifications:

• Amperage Rating: 250A
• Frame Size: J-K
• Magnetic Trip Range: 1125-2250A
• Voltage Rating: 600V AC / 250V DC
• Number of Poles: Three
• Series: Series C
• Dimensions: 4.06" (L) x 10" (H) x 4.13" (W)
• Weight: 12.5 lbs

Material Compliance and Certifications:

• UL Listed and CSA Certified: Meets rigorous safety and quality standards, ensuring reliable performance in industrial settings.
• Non-Aluminum Construction: Enhances durability and reliability, making it suitable for heavy-duty usage.

Suitability:

• The Eaton HMCP250L5C motor circuit protector is ideal for use in various industrial settings, including manufacturing plants and commercial buildings, where reliable motor protection is crucial. Its high current capacity and versatile voltage range make it well-suited for diverse electrical systems, ensuring safety and efficiency in power distribution.

The Eaton HMCP250L5C is more than just a component; it’s a crucial safeguard for motor systems, providing peace of mind through its dependable performance and protection features.
