HMCP250J5C - 250Amp Motor Circuit Protector

HMCP250J5C - 250Amp Motor Circuit Protector

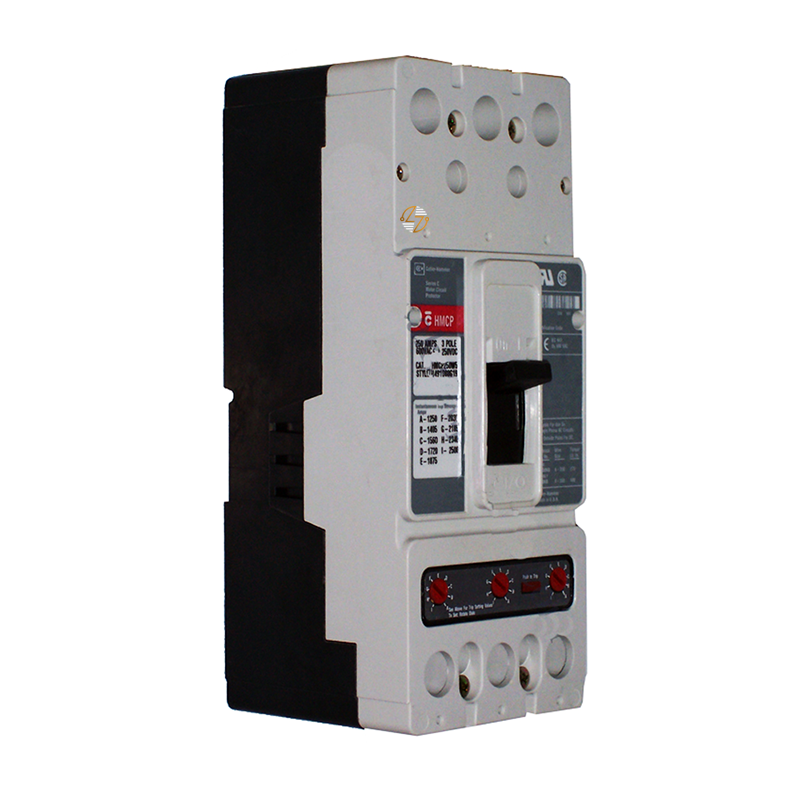

When you're replacing a motor circuit protector, getting the details right matters. The Eaton HMCP250J5C is a 250A, three-pole Series C motor circuit protector made for Frame J-K applications. It has an adjustable magnetic trip range of 875–1750A and is rated for up to 600V AC or 250V DC. For maintenance teams working with existing electrical equipment, those specifications make it easier to determine whether this is the correct form, fit, and functional replacement.

Key Features and Benefits

• 250A rating for compatible motor protection applications
• Three-pole design for equipment requiring this pole configuration
• Adjustable 875–1750A magnetic trip range
• Frame J-K configuration for compatible installations
• Part of the Eaton Series C family
• Rated for a maximum of 600V AC and 250V DC
• Equipped with line and load terminals
• Non-aluminum terminal material
• Clearly defined dimensions help with checking physical fit before installation


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP250J5C

• UPC: 786679151044

• Product Type: Molded case circuit breaker accessory

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 250 A

• Frame Size: Frame J-K

• Number of Poles: Three-pole

• Magnetic Trip Range: 875–1750 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Terminal Material: Non-aluminum

• Height: 10 in

• Width: 4.13 in

• Length/Depth: 4.06 in

• Weight: 12.5 lb


Material Compliance and Certifications

The HMCP250J5C is UL Listed and CSA Certified, making its certification status easy to verify when you're matching components to the requirements of an existing electrical system.

The catalog number is only one part of a proper compatibility check. Before installation, confirm the 250A amperage rating, Frame J-K size, three-pole design, 875–1750A magnetic trip range, voltage rating, terminal configuration, and physical dimensions against the equipment specifications.

Where It Works Best

The Eaton HMCP250J5C is intended for compatible motor protection applications requiring a Series C, Frame J-K, 250A motor circuit protector with a three-pole configuration. It makes particular sense for maintenance and replacement work when an existing electrical system requires a component with these specific ratings and dimensions.
