HMCP250F5C - 250Amp Motor Circuit Protector

HMCP250F5C - 250Amp Motor Circuit Protector

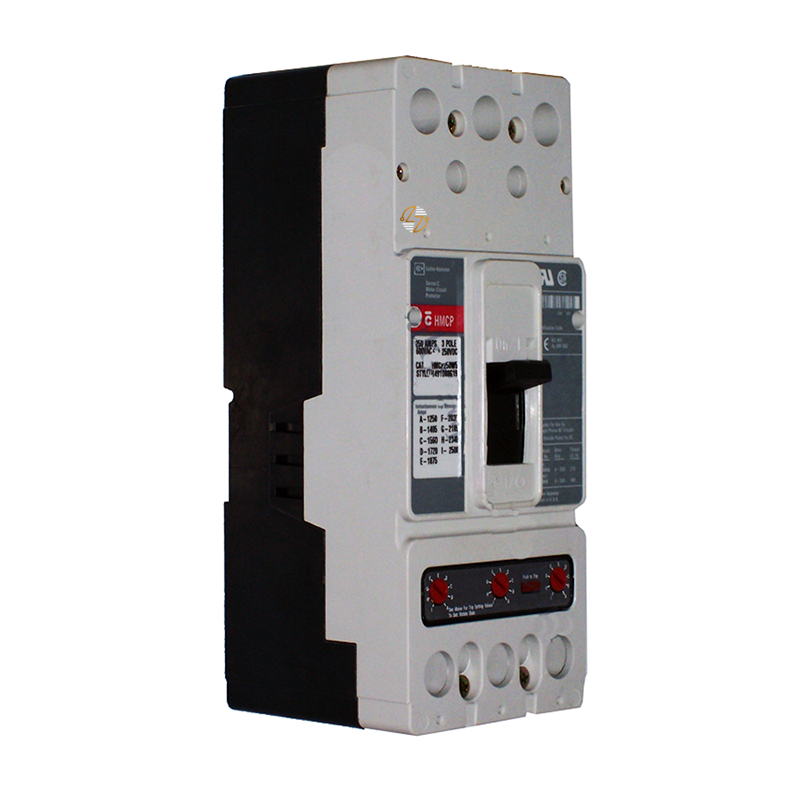

The Eaton HMCP250F5C is a 250A, three-pole motor circuit protector from the Series C family, designed for Frame J-K applications. For maintenance teams, electricians, and facility professionals working with existing electrical equipment, matching the exact specifications of the original device is essential—and the HMCP250F5C provides clearly defined ratings for that purpose. Whether you're replacing a matching motor circuit protector or maintaining equipment built around Series C components, always verify the complete catalog number, amperage, frame size, pole count, voltage, trip range, terminal configuration, and dimensions before installation.

Key Features and Benefits

• 250A amperage rating for compatible motor protection applications
• Three-pole configuration for systems requiring a three-pole motor circuit protector
• 625–1250A magnetic trip range provides the specified adjustable magnetic protection range
• Frame J-K design helps identify compatibility with existing equipment
• Maximum rating of 600V AC or 250V DC for applications within the manufacturer's specified limits
• Series C construction for equipment designed around compatible Series C components
• Line and load terminals provide the specified connection configuration
• Non-aluminum terminal material as specified by the manufacturer


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP250F5C

• UPC: 786679151020

• Type: Motor circuit protector

• Product Type: Molded case circuit breaker accessory

• Series: Series C

• Amperage Rating: 250 A

• Frame Size: Frame J-K

• Number of Poles: Three-pole

• Magnetic Trip Range: 625–1250 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Terminal Material: Non-aluminum

• Height: 10 in

• Width: 4.13 in

• Length/Depth: 4.06 in

• Weight: 12.5 lb


Material Compliance and Certifications

The Eaton HMCP250F5C is UL Listed and CSA Certified. Eaton lists the product's compliance information as “Contact Manufacturer.” Its terminals are specified as using non-aluminum terminal material.

For replacement applications, certification should be considered alongside the complete electrical and physical specifications. Verify that the equipment requires the HMCP250F5C's 250A rating, Frame J-K configuration, three-pole design, 625–1250A magnetic trip range, voltage ratings, and terminal arrangement before installation.

Where It Works Best

The HMCP250F5C motor circuit protector is best suited to existing motor protection equipment and legacy systems that specifically call for its Series C, Frame J-K configuration and electrical characteristics. It's a practical, form-fit, and functional replacement when the original equipment specifications match this exact model.
