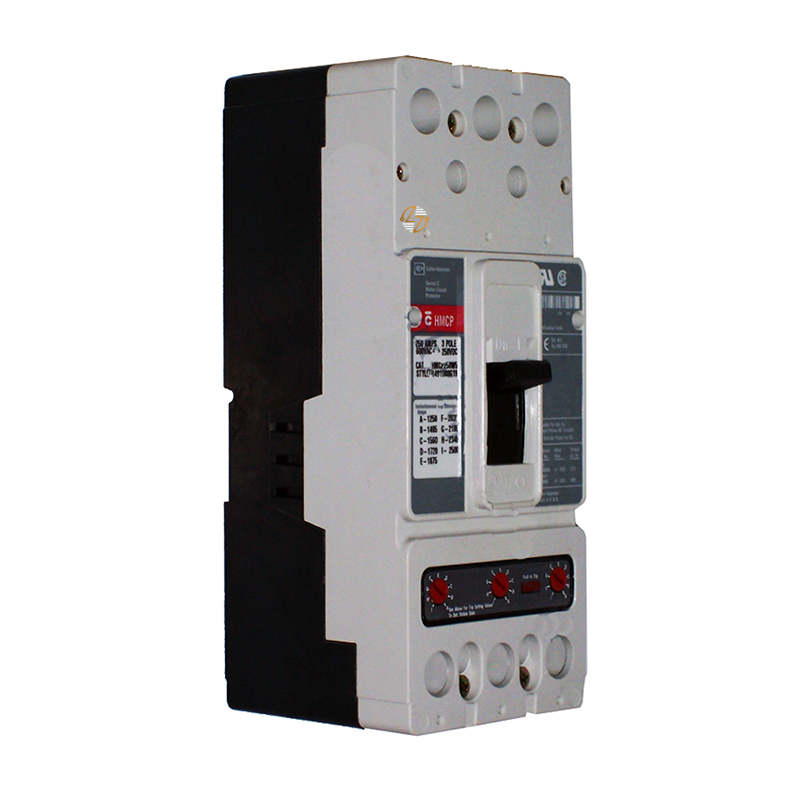

HMCP250D5C - 250Amp Motor Circuit Protector

HMCP250D5C - 250Amp Motor Circuit Protector

When you're replacing a motor circuit protector, getting the specifications right matters. The Eaton HMCP250D5C is a 250A, three-pole Series C motor circuit protector designed for Frame J-K applications. It has an adjustable 500–1000A magnetic trip range and is rated for a maximum of 600V AC or 250V DC. Line and load terminals are provided, with non-aluminum terminal material.

Key Features and Benefits

• 250A rating for compatible motor protection applications
• Three-pole design for equipment requiring this pole configuration
• 500–1000A magnetic trip range
• Designed for Frame J-K applications
• Rated up to 600V AC and 250V DC
• Part of the Series C product family
• Includes line and load terminals
• Non-aluminum terminal material
• Defined dimensions make it easier to check physical fit before installation


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP250D5C

• UPC: 786679151013

• Product Type: Molded case circuit breaker accessory

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 250 A

• Frame Size: Frame J-K

• Number of Poles: Three-pole

• Magnetic Trip Range: 500–1000 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Terminal Material: Non-aluminum

• Height: 10 in

• Width: 4.13 in

• Length/Depth: 4.06 in

• Weight: 12.5 lb


Material Compliance and Certifications

The HMCP250D5C is UL Listed and CSA Certified. The manufacturer's published information directs users to contact the manufacturer for additional compliance details.

As with any replacement electrical component, certification is only part of the compatibility check. The catalog number and applicable electrical and physical specifications should also match the requirements of the equipment in which the motor circuit protector will be installed.

Where It Works Best

The Eaton HMCP250D5C makes sense for existing or legacy motor protection equipment specifically designed around a 250A, three-pole, Frame J-K Series C motor circuit protector with a 500–1000A magnetic trip range.

For replacement projects, start with the full HMCP250D5C catalog number rather than assuming another 250A device will be interchangeable. Then compare the frame, number of poles, voltage, trip range, terminals, and physical dimensions with the existing equipment.
