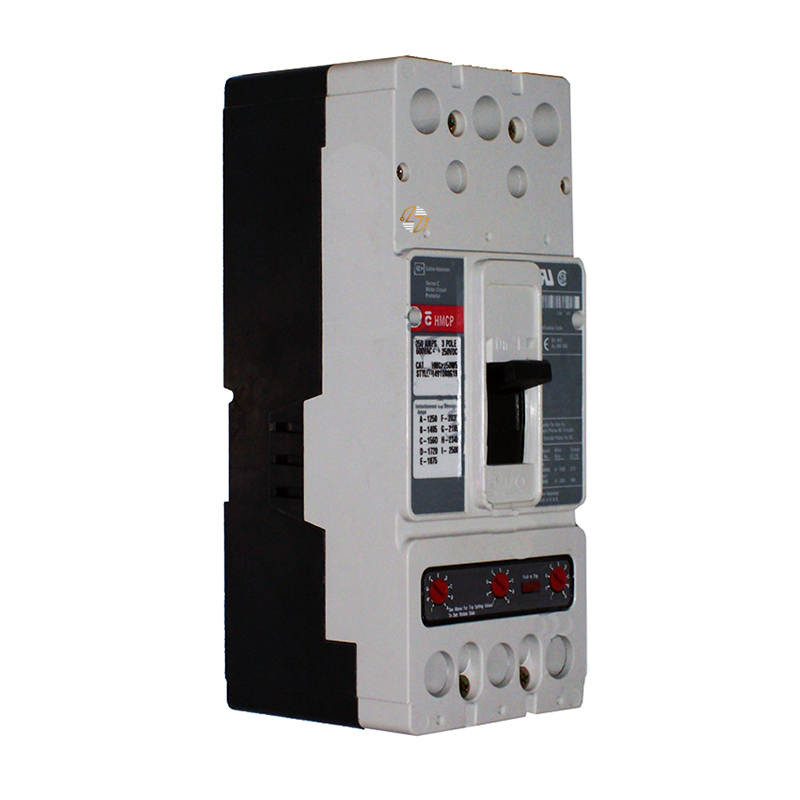

HMCP250D5 - 250Amp Motor Circuit Protector

HMCP250D5 - 250Amp Motor Circuit Protector

The Eaton HMCP250D5 is a high-performance motor circuit protector, purpose-built to provide reliable and robust protection for motor circuits in demanding industrial applications. Part of Eaton's trusted Series C, this motor protector safeguards against overloads and short circuits, ensuring the longevity and safe operation of motor-driven equipment.

Key Features and Benefits:

• Motor Circuit Protection: Specifically engineered to protect motor circuits, the HMCP250D5 prevents damage due to electrical faults, enhancing motor reliability and lifespan.
• High Current Capacity: With a 250A rating and a magnetic trip range of 500-1000A, this motor protector is capable of handling substantial electrical loads, making it ideal for heavy-duty applications.
• Durable Construction: Built from high-quality materials, the HMCP250D5 is designed to withstand harsh industrial environments, ensuring dependable performance.
• Compact Design: Despite its robust capabilities, the compact form factor allows for efficient use of space in control panels and other installations.
• Series C Reliability: Part of Eaton’s renowned Series C, known for durability and advanced protection features, ensuring your motor circuits are reliably safeguarded.

Technical Specifications:

• Amperage Rating: 250A
• Voltage Rating: 600V AC / 250V DC
• Magnetic Trip Range: 500-1000A
• Poles: Three-pole
• Frame Size: J-K
• Dimensions: 4.06 inches (W) x 10 inches (D) x 4.13 inches (H)
• Weight: 12.5 lbs

Material Compliance and Certifications:

• UL Listed and CSA Certified: Complies with stringent safety and quality standards, ensuring broad applicability and reliable operation.
• Warranty: Backed by Eaton’s Selling Policy 25-000, with a one-year warranty from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Suitability:

• The Eaton HMCP250D5 motor circuit protector is ideally suited for industrial and commercial applications requiring high-capacity motor protection. Its durable construction and compact design make it suitable for manufacturing plants, processing facilities, and other environments where dependable motor protection is critical. Flexible installation options and space efficiency further enhance its applicability in diverse electrical setups.
