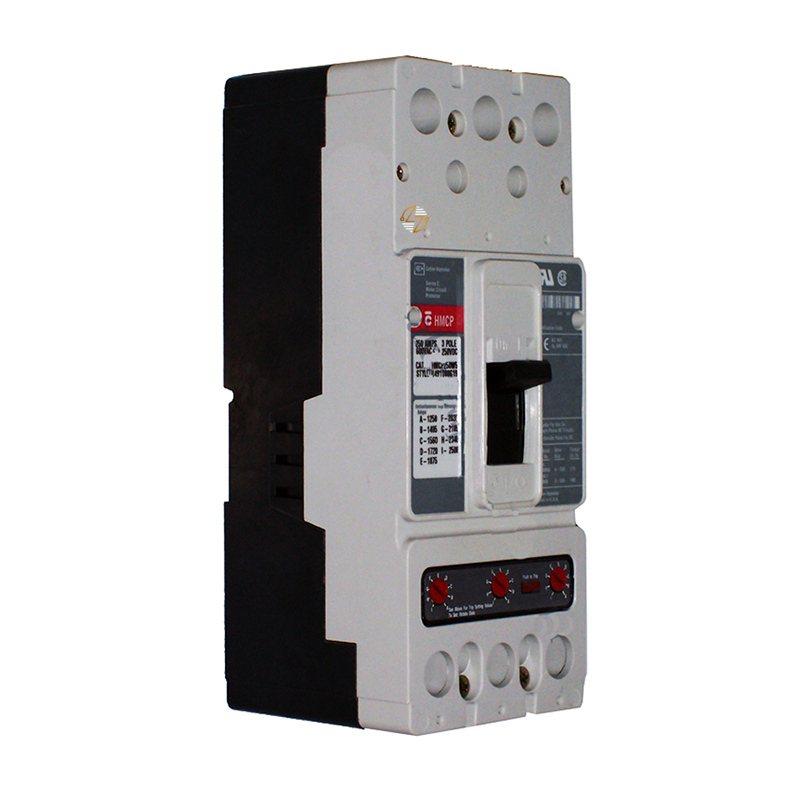

HMCP250C5 - 250Amp Motor Circuit Protector

HMCP250C5 - 250Amp Motor Circuit Protector

The Eaton HMCP250C5 is a high-performance motor circuit protector, purpose-built to deliver reliable and robust protection for motor circuits in demanding industrial applications. Engineered with precision, this motor protector safeguards against electrical faults, ensuring longevity and consistent performance in a wide range of environments.

Key Features and Benefits:

• High Amperage Capacity: With a 250 A rating, the HMCP250C5 is designed to handle substantial electrical loads, ensuring reliable motor circuit protection.
• Versatile Frame Size: The J-K frame size offers flexibility and seamless integration into existing systems, making it suitable for various applications.
• Adjustable Magnetic Trip Range: With a magnetic trip range of 450-900 A, the HMCP250C5 provides customizable protection settings for optimal performance.
• High Voltage Ratings: Rated for 600 V AC and 250 V DC, this motor protector is suitable for diverse electrical environments, ensuring compliance with safety standards.
• Durability and Reliability: Manufactured by Eaton, the HMCP250C5 is built to last, delivering consistent protection in demanding conditions.

Technical Specifications:

• Amperage Rating: 250 A
• Frame Size: J-K
• Magnetic Trip Range: 450-900 A
• Voltage: 600 V AC / 250 V DC
• Poles: Three-pole
• Dimensions: 4.06 in (L) x 10 in (H) x 4.13 in (W)
• Weight: 12.5 lb
• Series: C
• Terminals: Line and load

Material Compliance and Certifications:

• UL Listed and CSA Certified: Compliant with rigorous safety and performance standards, providing assurance of reliable operation.
• Warranty: One year from the date of installation or eighteen months from the date of shipment, whichever comes first.

Suitability:

• The Eaton HMCP250C5 motor circuit protector is ideal for industrial and commercial environments requiring dependable motor protection. Its robust design and high-performance capabilities make it suitable for motor protection in manufacturing plants, commercial buildings, and other heavy-duty settings. Whether upgrading existing systems or installing new ones, the HMCP250C5 ensures the continuous and safe operation of your motor circuits.
