HMCP250A5C - 250Amp Motor Circuit Protector

HMCP250A5C - 250Amp Motor Circuit Protector

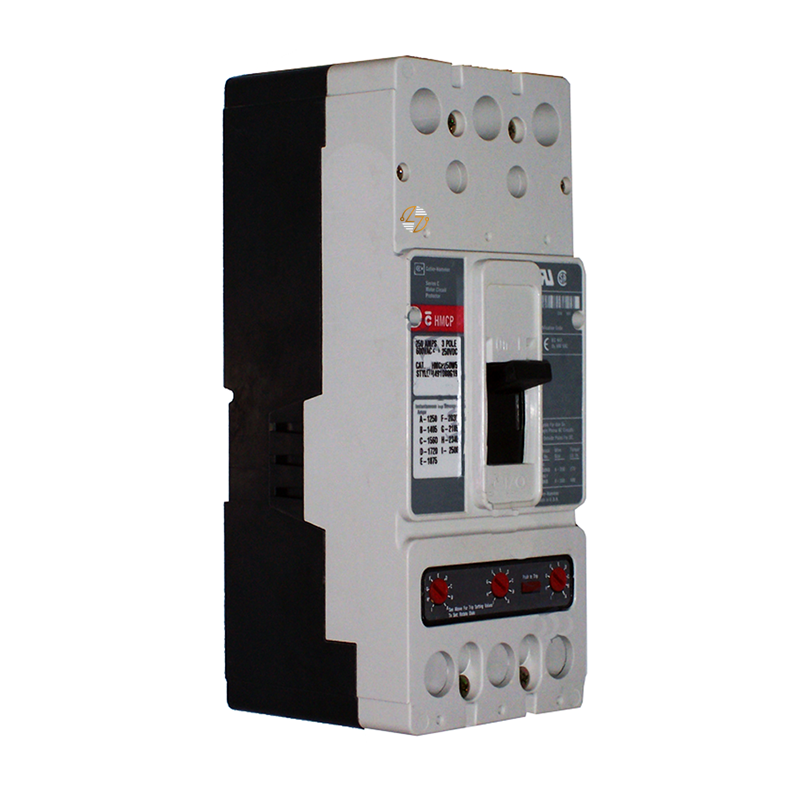

When you’re replacing a motor circuit protector in existing equipment, the details matter. The Eaton HMCP250A5C is a 250A, three-pole Series C motor circuit protector built for Frame J-K applications. It has a 350–700A magnetic trip range and maximum voltage ratings of 600V AC and 250V DC. For maintenance and replacement work, HMCP250A5C is a practical choice when the existing equipment calls for this exact configuration. Before installation, check the catalog number, frame, trip range, pole count, voltage rating, terminals, and physical dimensions. That extra check helps ensure the replacement provides the required form, fit, and function.

Key Features and Benefits

• 250A rating for compatible motor protection applications.
• Three-pole configuration designed for equipment that requires this arrangement.
• 350–700A magnetic trip range to match the protector to the application's requirements.
• Frame J-K design helps simplify compatibility checks when replacing an existing unit.
• Rated for a maximum of 600V AC and 250V DC.
• Part of the Series C product family.
• Equipped with line and load terminals using non-aluminum terminal material.
• UL Listed and CSA Certified.
• Clearly defined dimensions make it easier to check physical fit before installation.
• Built to last when correctly applied, installed, and operated within the manufacturer's ratings.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP250A5C

• UPC: 786679342060

• Product Type: Molded case circuit breaker accessory

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 250 A

• Frame Size: Frame J-K

• Number of Poles: 3

• Magnetic Trip Range: 350–700 A

• Maximum Voltage: 600 V AC / 250 V DC

• Terminals: Line and load

• Terminal Material: Non-aluminum

• Height: 10 in

• Width: 4.13 in

• Length/Depth: 4.06 in

• Weight: 12.5 lb

• Certifications: UL Listed; CSA Certified


Material Compliance and Certifications

The HMCP250A5C is UL Listed and CSA Certified. Eaton specifies non-aluminum material for the terminals. For other compliance requirements, the manufacturer's supplied information directs customers to contact the manufacturer.

If certification or material compliance is important to a particular installation, confirm those requirements before putting the unit into service. This is especially useful when maintaining older equipment where matching the original component specifications may be essential.

Where It Works Best

The HMCP250A5C is best suited to motor protection applications that specifically require a 250A, three-pole Series C motor circuit protector in a Frame J-K configuration. It can be a good fit for maintenance and replacement work involving compatible existing or legacy equipment where preserving the original form, fit, and function is the goal.
