HMCP250A5 - 250Amp Motor Circuit Protector

HMCP250A5 - 250Amp Motor Circuit Protector

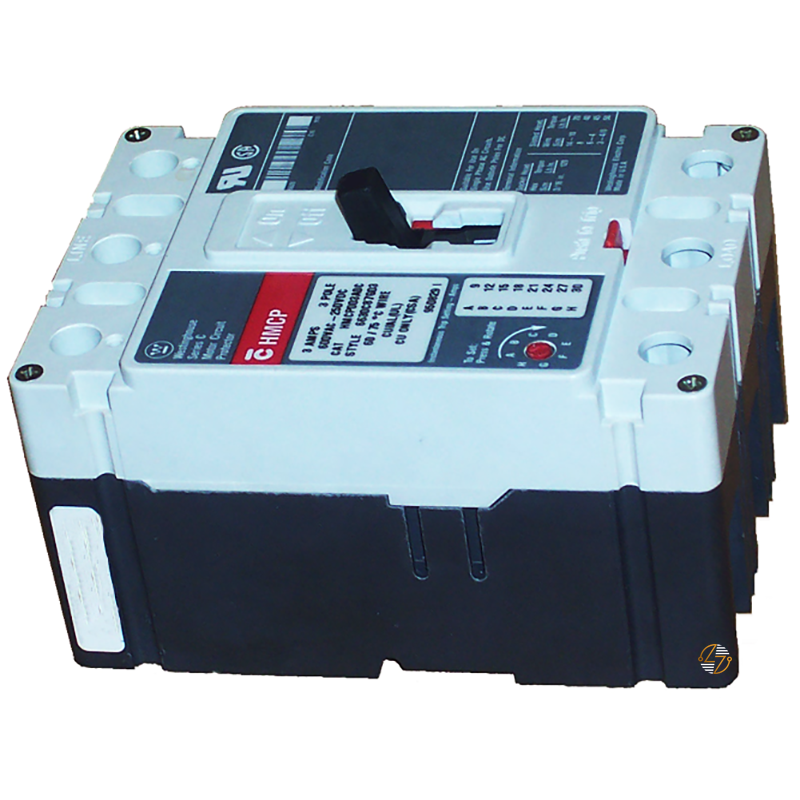

The Eaton HMCP250A5 is a 250A, three-pole Series C motor circuit protector designed for motor protection applications requiring a Frame J-K configuration and a 350–700A magnetic trip range. Rated for a maximum of 600V AC and 250V DC, this molded-case circuit breaker accessory features line and load terminals and provides the specific electrical and physical characteristics required for matching compatible equipment. When you're working with existing or legacy electrical systems, matching the complete catalog number, amperage, frame size, pole configuration, voltage rating, magnetic trip range, and dimensions helps confirm proper form, fit, and function.

Key Features and Benefits

• 250A amperage rating for compatible motor protection applications.
• Three-pole configuration matches equipment designed for this specific pole arrangement.
• 350–700A magnetic trip range provides a key specification for matching the protector to the intended application.
• 600V AC and 250V DC maximum voltage ratings support applications within the specified electrical limits.
• Frame J-K configuration helps identify physical and equipment compatibility.
• Series C design makes the catalog number particularly relevant when servicing compatible existing or legacy equipment.
• Line and load terminals as specified by the manufacturer.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP250A5

• Product Name: Eaton molded case circuit breaker accessory motor protection

• Product Type: Molded case circuit breaker accessory

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 250 A

• Frame Size: Frame J-K

• Number of Poles: Three-pole

• Magnetic Trip Range: 350–700 A

• Maximum Voltage: 600 V AC, 250 V DC

• Terminals: Line and load

• Product Length/Depth: 4.06 in

• Product Height: 10 in

• Product Width: 4.13 in

• Product Weight: 12.5 lb

• UPC: 786679150399


Material Compliance and Certifications

The Eaton HMCP250A5 is UL Listed and CSA Certified. These certifications are useful when confirming that a replacement component meets the certification requirements specified for compatible equipment or an electrical installation.

No additional material-compliance designations are provided in the supplied manufacturer specifications. If an application has specific environmental, material, or regulatory requirements beyond the listed certifications, those requirements should be verified separately.

Where It Works Best

The Eaton HMCP250A5 motor circuit protector is best suited to motor protection applications that specifically call for a 250A, three-pole Series C unit in a Frame J-K configuration. Its 350–700A magnetic trip range and maximum ratings of 600V AC and 250V DC should be checked against the requirements of the existing equipment before installation.
