HMCP015E0C - 15Amp Motor Circuit Protector

HMCP015E0C - 15Amp Motor Circuit Protector

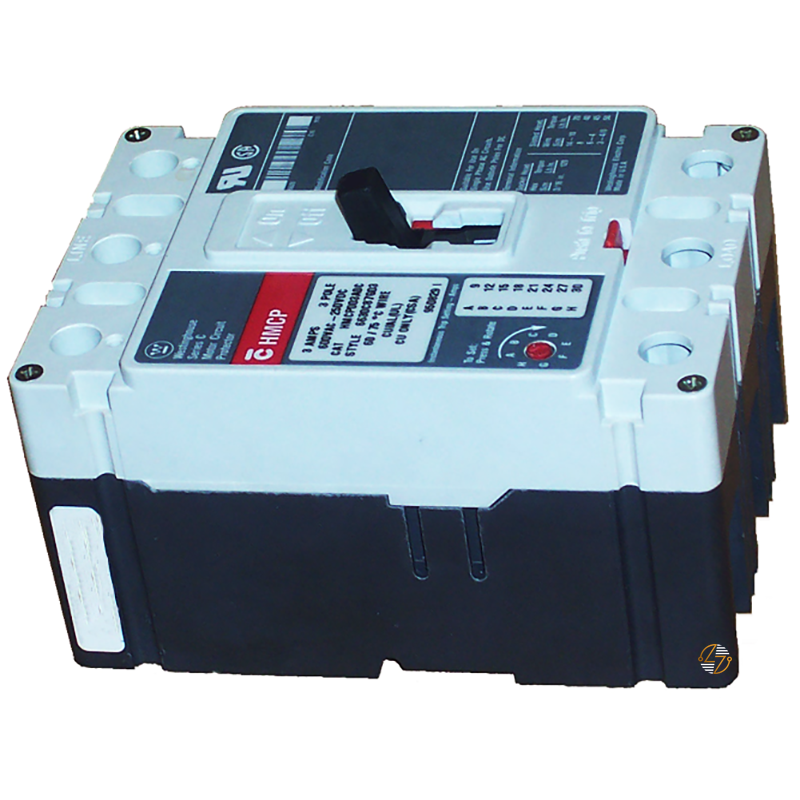

When you’re replacing a motor circuit protector, getting the details right matters. The Eaton HMCP015E0C is a 15A, three-pole Series C motor circuit protector built for J-K frame applications. It has a 45–150A magnetic trip range and non-aluminum terminal material. For maintenance teams, electricians, and facilities working with existing equipment, those specifications make it easier to determine whether this is the correct match for the application.

Key Features and Benefits

• 15A amperage rating for applications requiring this specific rating.
• 45–150A magnetic trip range for matching the protector to the requirements of the motor circuit.
• Three-pole design for equipment configured for a three-pole motor circuit protector.
• The J-K frame size is a key compatibility point when replacing an existing component.
• Part of the Series C product family.
• Manufactured with non-aluminum terminal material.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HMCP015E0C

• Product Type: Molded case circuit breaker accessory

• Type: Motor circuit protector

• Series: Series C

• Amperage Rating: 15 A

• Magnetic Trip Range: 45–150 A

• Frame Size: J-K

• Number of Poles: Three-pole

• Terminal Material: Non-aluminum

• Length/Depth: 8 in

• Height: 5 in

• Width: 5 in

• Product Weight: 4.5 lb

• UPC: 786679150818

• Global Catalog Number: HMCP015E0C


Material Compliance and Certifications

The HMCP015E0C is UL Listed and CSA Certified, and the manufacturer specifies non-aluminum terminal material. These details are worth checking when you're matching a replacement component to existing equipment documentation or an application's certification requirements.

For replacement work, don't rely on appearance alone. Verify the catalog number, 15A rating, 45–150A magnetic trip range, J-K frame size, three-pole configuration, Series C designation, and physical dimensions before installation.

Where It Works Best

The Eaton HMCP015E0C is a good fit for existing and legacy electrical systems that call for a 15A, three-pole Series C motor circuit protector in a J-K frame with a 45–150A magnetic trip range. It's particularly relevant for maintenance and replacement projects where keeping the equipment's specified form, fit, and function is the priority.
