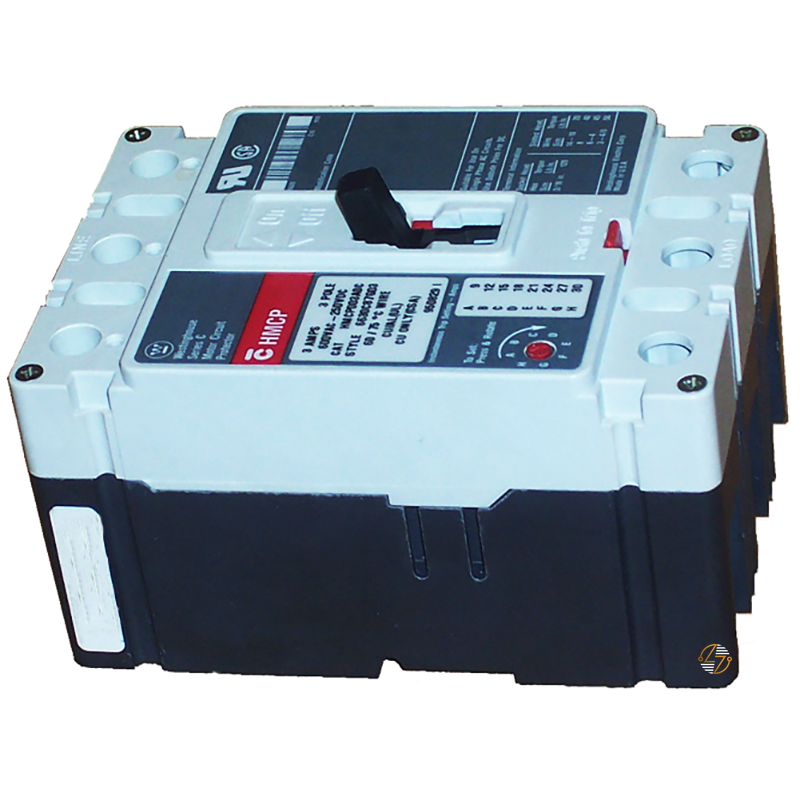

HMCP003A0C - 3Amp Motor Circuit Protector

HMCP003A0C - 3Amp Motor Circuit Protector

When you’re replacing a motor circuit protector, getting the details right matters. The HMCP003A0C is a 3A, three-pole Series C motor circuit protector made for J-K frame applications. It has a 9–30A magnetic trip range and non-aluminum terminal material, giving maintenance teams and electrical professionals a clearly defined set of specifications to match against existing equipment.

Key Features and Benefits

• 3A rating: Designed for applications requiring this amperage.
• 9–30A magnetic trip range: An important specification when matching the protector to an existing application.
• Three-pole design: Fits equipment requiring a three-pole configuration.
• J-K frame: Provides a clear frame reference when checking replacement compatibility.
• Series C: Designed for installations calling for the Series C product family.
• Non-aluminum terminal material: Matches the stated terminal specification for this model.
• UL Listed and CSA Certified: Carries recognized certifications that may be required for applicable installations.


Technical Specifications

• Catalog Number: HMCP003A0C

• Type: Motor circuit protector

• Product Type: Molded case circuit breaker accessory

• Series: Series C

• Amperage Rating: 3 A

• Magnetic Trip Range: 9–30 A

• Frame Size: J-K Frame

• Number of Poles: Three-pole

• Terminal Material: Non-aluminum

• Length/Depth: 8 in

• Height: 5 in

• Width: 5 in

• Weight: 4.5 lb

• UPC: 786679150795

• Global Catalog Number: HMCP003A0C


Material Compliance and Certifications

The HMCP003A0C is UL Listed and CSA Certified and is specified with non-aluminum terminal material. These details are worth checking alongside the electrical ratings whenever you’re matching a replacement component to an existing system.

Where It Works Best

The HMCP003A0C is best suited to existing motor circuit applications that specifically require a 3A, three-pole Series C protector with a J-K frame and 9–30A magnetic trip range. That makes it a practical choice for maintenance and form, fit, and functional replacement situations where keeping the specified equipment configuration is important.
