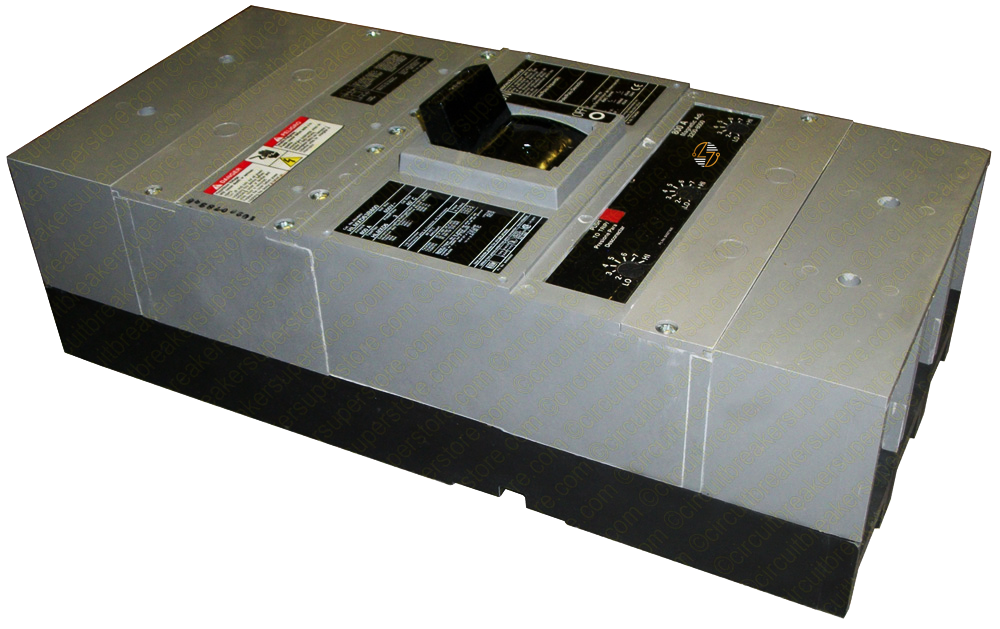

HLMXD63B500L - 500Amp Circuit Breaker

HLMXD63B500L - 500Amp Circuit Breaker

The HLMXD63B500L circuit breaker by Siemens is engineered to provide unparalleled protection and efficiency for your high-current electrical systems. This low voltage Sentron molded case circuit breaker features a thermal-magnetic trip unit and a robust LMD frame designed for high breaking capacity. With a current rating of 500A and a three-pole configuration, the HLMXD63B500L is ideal for demanding industrial and commercial applications. Its ability to interrupt fault currents up to 50kA at 600V and 65kA at 480V ensures the highest level of safety and reliability for your electrical infrastructure.

Key Features and Benefits:

• High Breaking Capacity: The HLMXD63B500L can manage fault currents up to 50kA at 600V and 65kA at 480V, providing robust protection against electrical faults and ensuring the safety of your system.
• Thermal-Magnetic Trip Unit: This advanced trip unit offers precise and reliable operation, safeguarding your equipment from both overloads and short circuits.
• Durable Construction: Built to withstand harsh environments, this circuit breaker is designed for long-lasting durability and performance, ensuring reliable operation over time.

Technical Specifications:

• Current Rating: 500A
• Voltage Rating: 600V (50kAIC) / 480V (65kAIC)
• Poles: 3
• Trip Unit: Thermal-Magnetic
• Dimensions: 7.50"W x 16.00"L x 4.50"D
• Net Weight: 72.00 lbs
• Special Features: Line and Load Lugs

Material Compliance and Certifications:

• Compliance: The HLMXD63B500L complies with RoHS directives since July 2008, reflecting Siemens' commitment to environmental sustainability and safety standards. This breaker meets UL 489 and IEC 60947-2 standards, ensuring high-quality performance and reliability.

Suitability:

• Perfect for industrial and commercial environments requiring high-current protection, the HLMXD63B500L circuit breaker is designed to handle demanding applications with ease. Its high breaking capacity and robust construction make it an ideal choice for ensuring the safety and reliability of your electrical systems.
