HLMD63B700L - 700Amp Circuit Breaker

HLMD63B700L - 700Amp Circuit Breaker

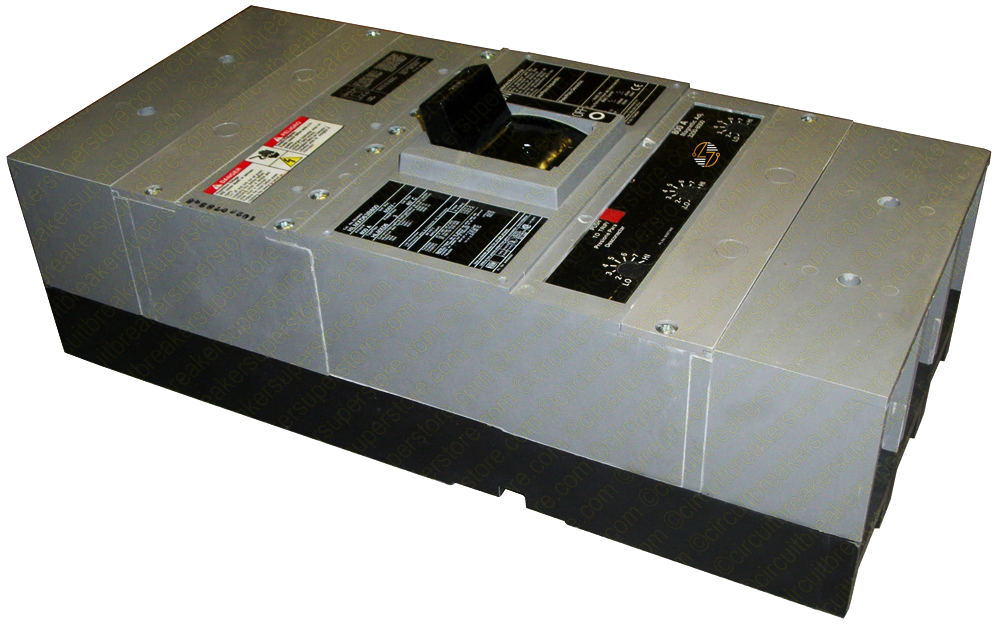

The Siemens HLMD63B700L Circuit Breaker is a high-performance, molded case circuit breaker designed to meet the rigorous demands of modern electrical systems. Engineered with a thermal-magnetic trip unit, this circuit breaker ensures reliable protection for electrical circuits against overloads and short circuits. It features a robust LMD frame, known for its high breaking capacity, making it suitable for both residential and commercial applications.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Offers dual protection against overloads and short circuits, enhancing the safety and reliability of the electrical system.
• High Breaking Capacity: Rated at 50kAIC at 600V and 65kAIC at 480V, ensuring robust performance under fault conditions.
• Versatile Connectivity: Includes line and load side lugs (TA3K500) with a wire range of 1/0AWG to 500KCM (CU/AL), providing flexibility in installation.
• Compact Dimensions: Measuring 7.5 inches wide, 16 inches high, and 4.5 inches deep, this circuit breaker is designed to fit seamlessly into various panel configurations.

Technical Specifications:

• Manufacturer: Siemens
• Product Family: Sentron Molded Case Circuit Breakers
• Model Number: HLMD63B700L
• Current Rating: 700 Amps
• Voltage Rating: 600 Volts
• Number of Poles: 3
• Breaking Capacity: 50kAIC at 600V, 65kAIC at 480V
• Standards Compliance: UL 489, IEC 60947-2
• Dimensions: 7.5 inches (W) x 16 inches (H) x 4.5 inches (D)
• Weight: 34.877 lbs

Material Compliance and Certifications:

• WEEE Take-Back Obligation: No

Suitability:

• The Siemens HLMD63B700L Circuit Breaker is ideal for applications requiring high reliability and safety in electrical systems. Its robust design and high breaking capacity make it suitable for a wide range of environments, including industrial, commercial, and residential installations. Whether you are upgrading an existing system or designing a new installation, this circuit breaker ensures compliance with international standards and provides peace of mind with its superior protective features.

The Siemens HLMD63B700L Circuit Breaker is more than just a component; it is a critical safeguard for your electrical systems, designed to offer enhanced safety and reliability through its advanced features. Discover more about this essential circuit breaker today and ensure your systems are well-protected and compliant.
