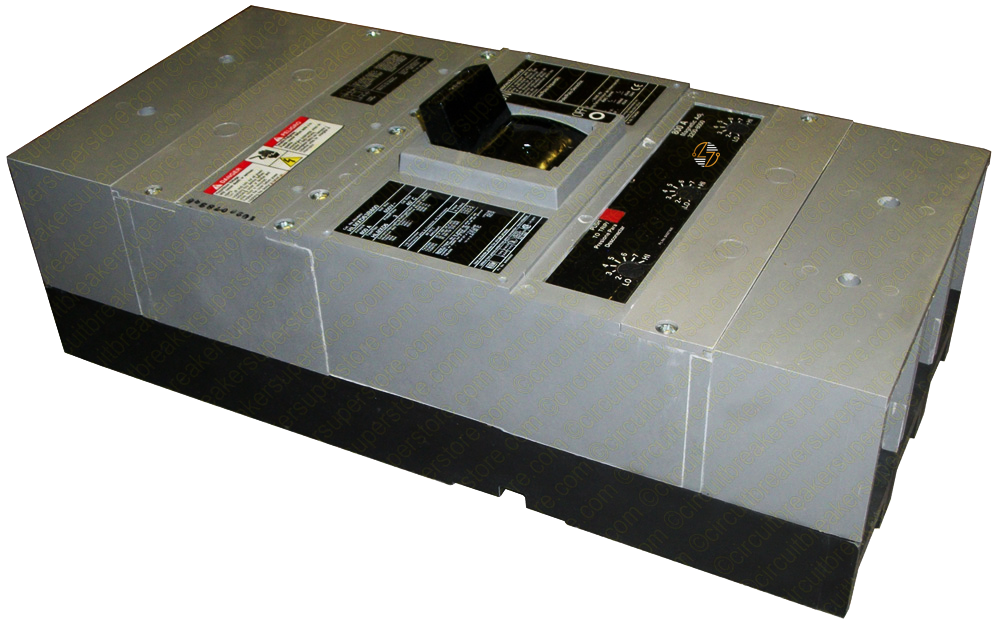

HLMD63B500 - 500Amp Circuit Breaker

HLMD63B500 - 500Amp Circuit Breaker

This Siemens low voltage Sentron molded case circuit breaker features a state-of-the-art thermal-magnetic trip unit, designed to deliver exceptional reliability and safety in high-demand applications.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Combines thermal and magnetic protection for accurate and reliable tripping.
• High Breaking Capacity: Handles up to 50kA at 600V and 65kA at 480V, making it suitable for heavy-duty industrial applications.
• UL and IEC Compliant: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance.
• Durable Construction: Built to withstand demanding environments with a robust LMD frame.
• Versatile Connectivity: Includes line and load side lugs (TA3K500) supporting wire ranges from 1/0AWG to 500KCM (CU/AL).

Technical Specifications:

• Rated Current: 500A
• Poles: 3
• Breaking Capacity: 50kAIC at 600V, 65kAIC at 480V
• Dimensions: 7.5 inches (W) x 16 inches (H) x 4.5 inches (D)
• Weight: 35.935 lb
• Wire Range: 1/0AWG - 500KCM (CU/AL)
• Frame Type: LMD
• Operating Temperature: Standard 40å¡C

Material Compliance and Certifications:

• Compliance: The HLMD63B500 circuit breaker complies with major international standards, including UL 489 and IEC 60947-2, ensuring it meets stringent safety and performance requirements.

Suitability:

• The HLMD63B500 is ideal for a wide range of applications including commercial buildings, industrial facilities, and power distribution networks. Its high breaking capacity and robust design make it particularly suitable for environments where reliable circuit protection is paramount.
