HLD3600F - 600Amp Max. *Frame Only*

HLD3600F - 600Amp Max. *Frame Only*

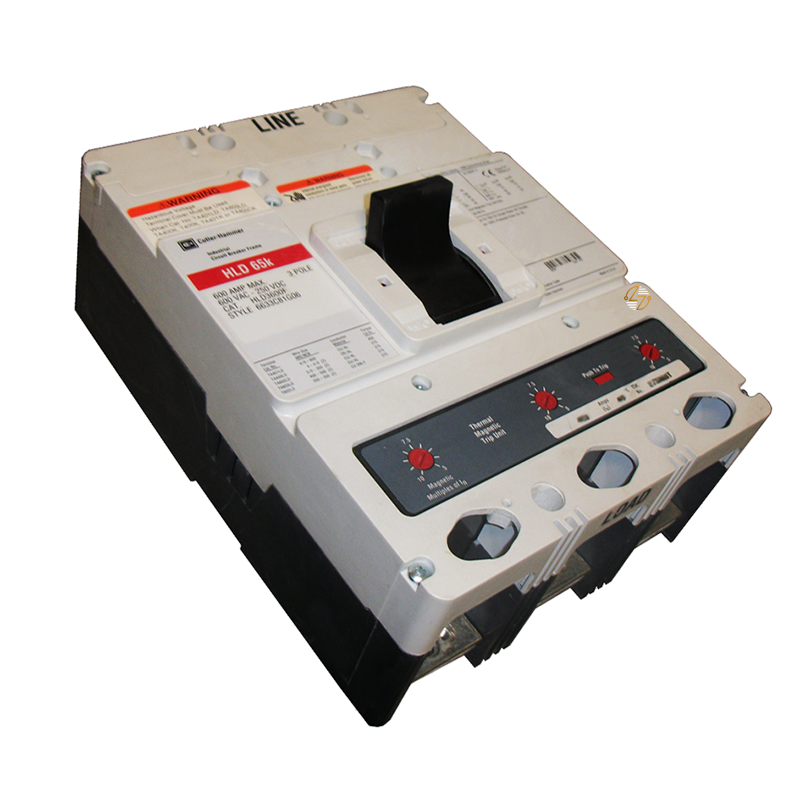

The Eaton HLD3600F is a robust L-frame circuit breaker frame, designed for high-performance electrical systems. This Series C molded case frame delivers exceptional protection with a fixed thermal and magnetic trip system, engineered to accommodate demanding industrial applications. Please note that this unit is a frame only and requires the addition of a compatible trip unit to function as a complete circuit breaker, making it ideal for custom circuit protection solutions. This is a frame-only model and requires a compatible trip unit to function as a complete circuit breaker.

Key Features and Benefits:

• Frame Only: Requires a trip unit for complete breaker functionality, allowing for customization based on specific application needs.
• High Interrupt Rating: 100 kAIC at 240VAC, ensuring reliable performance in high-fault environments.
• Durable L-Frame Design: Built to handle up to 600A for heavy-duty use in industrial systems.
• Fixed Thermal and Magnetic Trip: Provides consistent protection against overloads and short circuits, enhancing system safety.
• Versatile Voltage Compatibility: Supports 600VAC and 250VDC, suitable for a range of power distribution systems.

Technical Specifications:

• Amperage Rating: 600A
• Voltage Rating: 600VAC, 250VDC
• Interrupt Rating: 100 kAIC at 240VAC, 65 kAIC at 480VAC
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three-pole configuration
• Frame Type: L-frame, Series C molded case

Material Compliance and Certifications:

• UL Listed: Certified to meet rigorous safety and performance standards.

Suitability:

• Suitable for applications requiring a robust frame that can handle high amperage and demanding power conditions. It requires a separate trip unit to complete the circuit breaker assembly, allowing flexibility in protection configurations.

This Eaton HLD3600F frame provides the foundation for a customizable, high-capacity circuit breaker solution, ensuring reliability and safety in industrial and commercial electrical systems.
