HLD3450 450A Circuit Breaker

HLD3450 450A Circuit Breaker

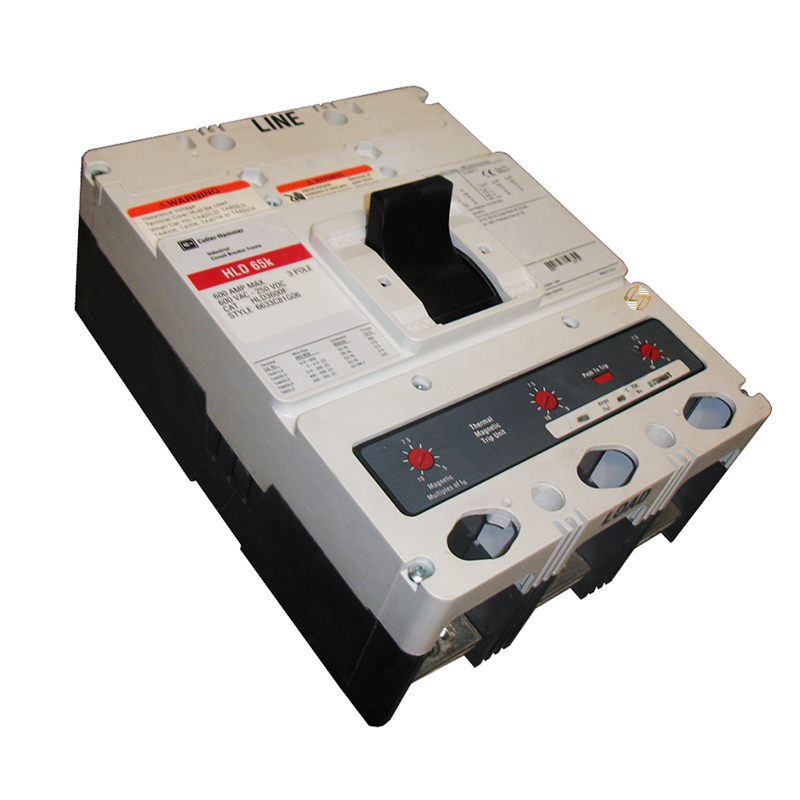

Elevate your electrical system's protection and performance with the Eaton HLD3450 Circuit Breaker. Designed to meet the rigorous demands of industrial and commercial applications, this advanced circuit breaker from Eaton's Series C line delivers unmatched reliability and safety. With a robust 450A current rating and the ability to handle up to 600V AC and 250V DC, the HLD3450 ensures your system operates smoothly under high-stress conditions. Engineered with fixed thermal and magnetic trips, this three-pole breaker provides precise overload and short-circuit protection, ensuring maximum uptime and equipment longevity.

Key Features and Benefits:

• High Amperage Capacity: Handles up to 450A, ideal for demanding applications.
• Voltage Versatility: Compatible with 600V AC and 250V DC systems.
• Reliable Protection: Fixed thermal and magnetic trips for accurate overload and short-circuit protection.
• High Interrupting Capacity: 100 kAIC at 240V AC and 65 kAIC at 480V AC, ensuring safe operation under fault conditions.
• Durable Construction: Built with high-quality aluminum terminals for long-lasting performance.
• Comprehensive Warranty: Backed by Eaton's one-year warranty from installation or 18 months from shipment.

Technical Specifications:

• Catalog Number: HLD3450
• Series: Eaton Series C
• Frame Type: L-frame
• Amperage Rating: 450A
• Voltage Rating: 600V AC, 250V DC
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three-pole
• Interrupting Capacity: 100 kAIC at 240V AC, 65 kAIC at 480V AC
• Frequency: 50/60 Hz
• Terminal Material: Aluminum
• Dimensions: 8.25" x 8.25" x 8.25"
• Weight: 21 lbs

Material Compliance and Certifications:

• Compliance: The Eaton HLD3450 is UL Listed, ensuring it meets stringent safety and performance standards. This certification confirms the breaker's capability to perform reliably in high-stress environments, providing peace of mind to operators and facility managers. Its construction with aluminum terminals ensures compliance with industry standards for conductivity and durability.

Suitability:

• The Eaton HLD3450 Circuit Breaker is ideally suited for industrial, commercial, and high-demand electrical applications. Whether it's for protecting complex machinery, ensuring the safety of critical infrastructure, or maintaining electrical distribution in large facilities, the HLD3450 delivers exceptional performance and reliability. Its robust design and high interrupting capacity make it an excellent choice for environments where safety and continuity of operation are paramount.
