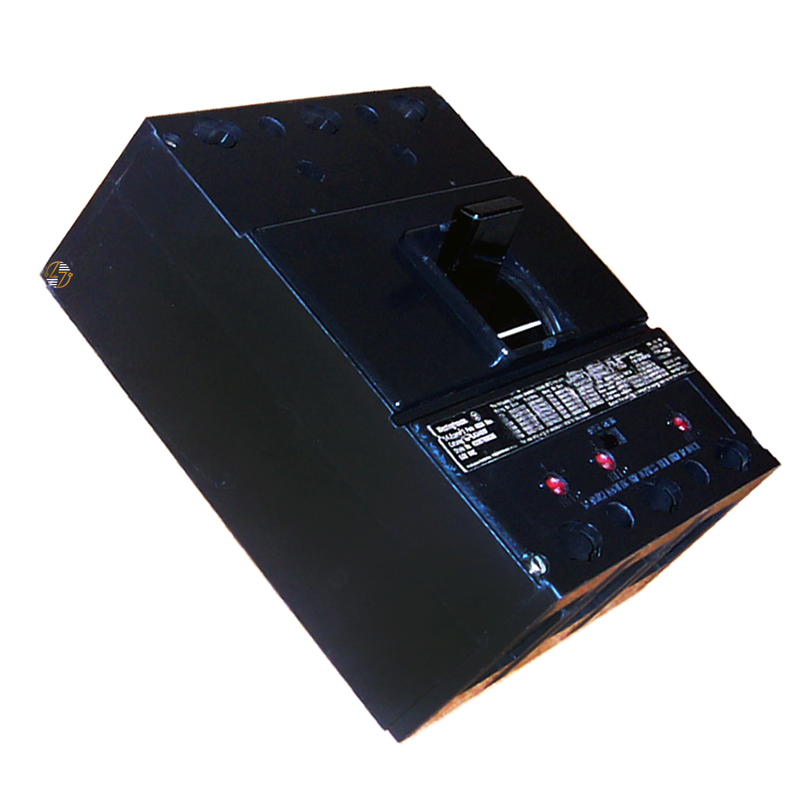

HLA3250 - 250Amp Circuit Breaker

HLA3250 - 250Amp Circuit Breaker

The HLA3250 is a 3-pole, 250-amp thermal magnetic circuit breaker designed for use in compatible HLA electrical systems. It’s commonly selected for commercial and industrial environments where keeping existing equipment in service is the priority. When you’re working within an established setup, having a breaker that matches the original form, fit, and electrical ratings makes maintenance and replacement much more straightforward.

This unit features an interchangeable trip design and includes load-side terminals, helping simplify installation in systems already built around the HLA frame style.

Key Features and Benefits

• 250 Amp Rating: Suitable for systems requiring a 250-amp, 3-pole breaker.
• 3-Pole Configuration: Designed for three-phase electrical distribution applications.
• HLA Frame Compatibility: Matches existing HLA-style breaker setups for proper fit and function.
• Thermal Magnetic Protection: Responds to overloads and short circuits with dual-sensing technology.
• Interchangeable Trip Unit: Supports flexibility within compatible HLA configurations.
• Load-Side Terminals Included: Helps streamline connection in existing installations.
• 40°C Temperature Rating: Intended for standard electrical room operating conditions.
• Service-Oriented Design: Helps support ongoing maintenance of existing electrical systems.

Technical Specifications

• Part Number: HLA3250

• Type: HLA

• Style: Thermal Magnetic Circuit Breaker

• Amperage: 250 A

• Poles: 3

• Approximate Shipping Weight: 24.00 lbs.

• Dimensions: 8.25"W x 10.75"L x 4.00"D

• Height: 10.75 in.

• Width: 8.25 in.

• Depth: 4.0 in.

• A.I.C. Ratings:
  • 25kA @ 600VAC
  • 35kA @ 480VAC
  • 65kA @ 240VAC
• Temperature Rating: 40°C

• Trip Unit: Interchangeable design

• Connections: Load-side terminals included


Material Compliance and Certifications

The HLA3250 should be installed in accordance with applicable electrical codes and the requirements of the system in which it is used. Always confirm voltage ratings, interrupt ratings, and compatibility before installation.

Where It Works Best

The HLA3250 is best suited to commercial buildings, industrial facilities, and maintenance environments where HLA-compatible equipment is already in place. It’s commonly used when replacing an existing breaker and keeping the original panel layout unchanged is important.
