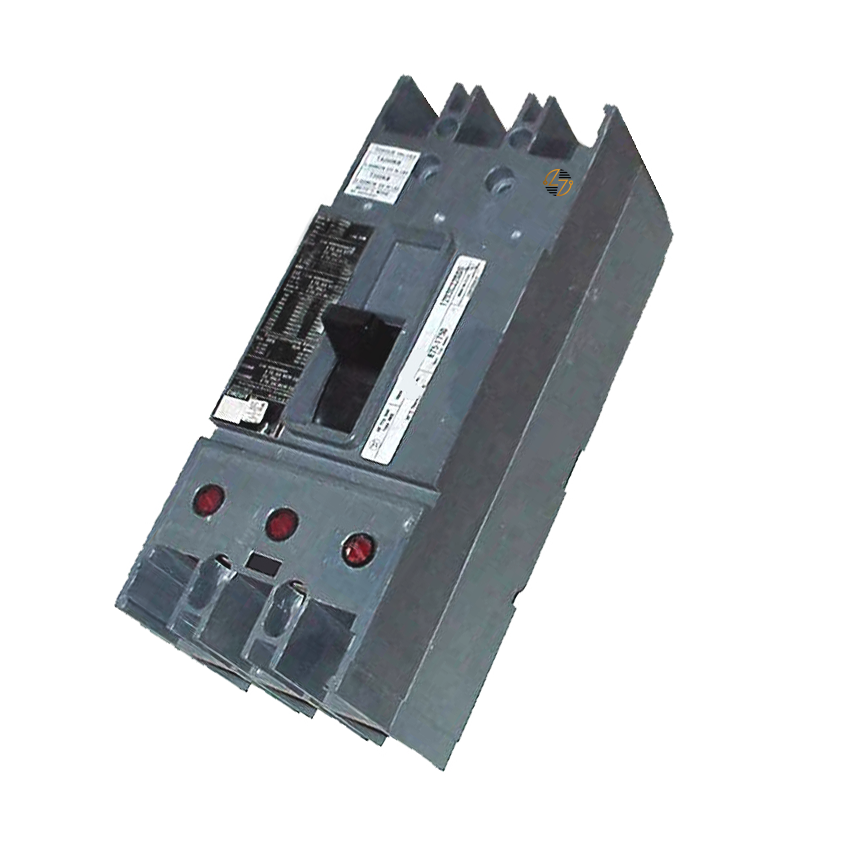

HKB3100 100A Circuit Breaker

HKB3100 100A Circuit Breaker

The HKB3100 is a robust, high-performance circuit breaker designed for maintenance and protection of electrical circuits in commercial and industrial applications. Engineered to meet the highest safety standards, this 100A, 3-pole breaker offers exceptional reliability with an AIC rating of 18k at 600VAC, 25k at 480VAC, and 65k at 240VAC, making it suitable for a wide range of voltage applications. The HKB3100 features a thermal magnetic mechanism with an interchangeable trip unit, allowing for enhanced customization and protection.

Key Features and Benefits:

• Thermal Magnetic Protection: Ensures precise tripping under overload conditions, providing a critical safeguard against circuit damage.
• Interchangeable Trip Unit: Customizable to meet specific application requirements, offering flexibility and enhanced protection.
• High AIC Rating: Superior interruption capacity at various voltage levels, suitable for demanding industrial settings.
• Compact Design: Space-saving dimensions make it ideal for use in panels with limited space.
• Load-Side Terminals Included: Simplifies installation, reducing setup time and effort.

Technical Specifications:

• Amperage: 100A
• Poles: 3
• AIC Rating: 18k @ 600VAC; 25k @ 480VAC; 65k @ 240VAC
• Dimensions: 4.13"W x 10.00"L x 4.13"D
• Frame Type: HKB
• Temperature Rating: 40°C
• Weight: 14 lbs

Material Compliance and Certifications:

• Compliance: Manufactured to meet stringent industry standards, ensuring reliability and safety in all applications.
• Certifications: Fully certified for use in commercial and industrial environments, meeting or exceeding relevant electrical safety standards.

Suitability:

• The HKB3100 is specifically designed for maintenance purposes in existing electrical systems, making it an excellent choice for maintaining or replacing components in industrial and commercial infrastructures. It is not recommended for upgrades but rather as a reliable solution to extend the life of current systems.
