HJD63B350 - 350Amp Circuit Breaker

HJD63B350 - 350Amp Circuit Breaker

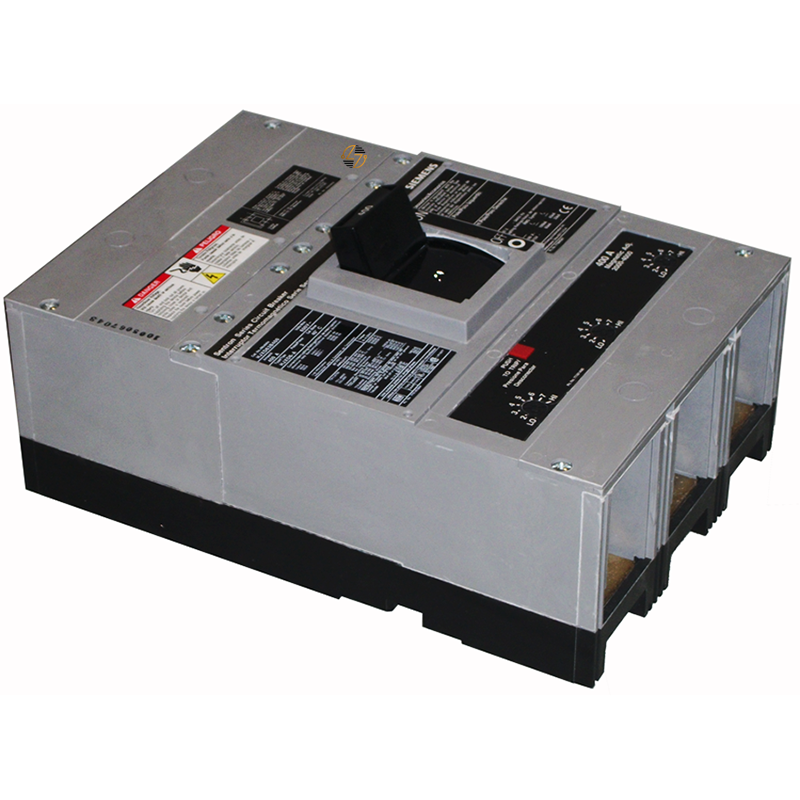

Introducing the Siemens HJD63B350 Sentron Molded Case Circuit Breaker, a robust solution designed to meet the demanding needs of modern electrical systems. This advanced circuit breaker, featuring a thermal-magnetic trip unit, ensures reliable protection and performance in diverse applications.

Key Features and Benefits:

• High Breaking Capacity: Capable of withstanding up to 35kAIC at 600V and 65kAIC at 480V, providing robust protection for your electrical systems.
• Thermal-Magnetic Trip Unit: Combines thermal and magnetic trip functionalities to offer precise overload and short-circuit protection.
• Standard 40å¡C Breaker JD Frame: Designed for optimal performance in standard operating conditions.
• Line and Load Side Lugs (TA2J6500): Ensures secure connections with a wide wire range of 3/0AWG - 500KCM (CU) and 4/0AWG - 500KCM (AL).
• Compact Dimensions: Measuring 7.5 x 11 x 4 inches, it offers a space-efficient solution for various installation needs.

Technical Specifications:

• Model Number: HJD63B350
• Amperage: 350A
• Poles: 3
• Breaking Capacity: 35kAIC at 600V, 65kAIC at 480V
• Standards: UL 489, IEC 60947-2
• Wire Range: 3/0AWG - 500KCM (CU), 4/0AWG - 500KCM (AL)
• Dimensions: 7.5 x 11 x 4 inches
• Net Weight: 20.084 lbs

Material Compliance and Certifications:

• RoHS Compliance: This product adheres to RoHS standards, ensuring it is free from hazardous materials.
• WEEE Compliance: Meets the requirements of the WEEE directive for environmental responsibility.
• REACH Compliance: In line with REACH regulations, informing about substances of very high concern.

Suitability:

• The Siemens HJD63B350 is perfect for a wide range of applications, including commercial buildings, industrial facilities, and other settings requiring reliable circuit protection. Its high breaking capacity and compliance with international standards make it a trusted choice for engineers and technicians seeking dependable and efficient electrical solutions.

By choosing the Siemens HJD63B350, you ensure safety, performance, and peace of mind for your electrical infrastructure.
