HJD3225 - 225Amp Circuit Breaker

HJD3225 - 225Amp Circuit Breaker

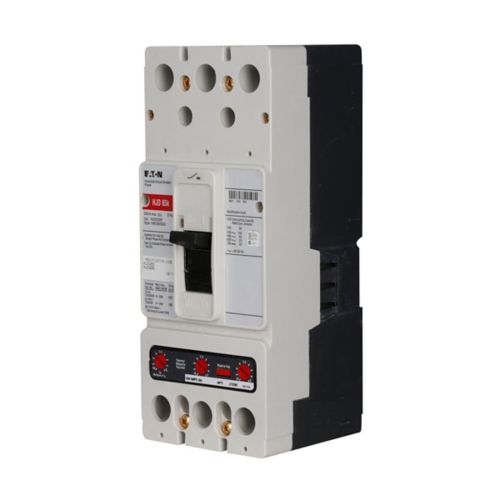

The HJD3225 is a Series C molded case circuit breaker designed for your electrical distribution equipment that requires a 3-pole, 225-amp J-frame breaker. This complete breaker assembly is rated for 600VAC and 250VDC applications and provides interrupting ratings of 100kAIC at 240VAC and 65kAIC at 480VAC.

Key Features and Benefits

• 225-amp rating – Designed for electrical systems requiring a 225A molded case circuit breaker.
• 3-pole configuration – Suitable for compatible three-phase electrical distribution systems.
• J-frame design – Designed for equipment using the HJD frame style.
• Complete breaker assembly – Includes the breaker unit with line and load terminals.
• T186 trip type – Matches applications requiring this specific trip configuration.
• 600VAC and 250VDC ratings – Suitable for systems using these voltage requirements.
• Aluminum terminals – Includes the specified terminal material for electrical connections.
• 50/60Hz frequency rating – Compatible with standard electrical distribution systems.

Technical Specifications

• Catalog Number: HJD3225

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: HJD

• Frame Type: J Frame

• Breaker Configuration: Complete breaker

• Poles: 3

• Amperage Rating: 225 Amps

• Trip Type: T186

• Voltage Rating:
  • 600VAC
  • 250VDC
• Frequency Rating: 50/60Hz

• Interrupt Ratings:
  • 100kAIC at 240VAC
  • 65kAIC at 480VAC
• Terminals: Line and load

• Terminal Material: Aluminum

• Dimensions: 4.13"W x 4.13"H x 4.06"D

• Height: 4.13 inches

• Width: 4.13 inches

• Depth: 4.06 inches

• Approximate Product Weight: 12.5 lbs.


Material Compliance and Certifications

The HJD3225 is a UL Listed molded case circuit breaker designed for compatible electrical distribution equipment. It is built to meet the requirements associated with its listed ratings, frame style, and configuration. Confirm that the breaker specifications, equipment requirements, and applicable electrical standards match the intended installation before use.

Where It Works Best

The HJD3225 works best in existing electrical distribution equipment that requires a 3-pole, 225-amp J-frame molded case circuit breaker. It is suited for commercial and industrial applications where maintaining the existing breaker setup is important. With its complete breaker design, line and load terminals, and listed interrupting ratings, it provides a practical fit for compatible maintenance and replacement applications.
