SQUARE D

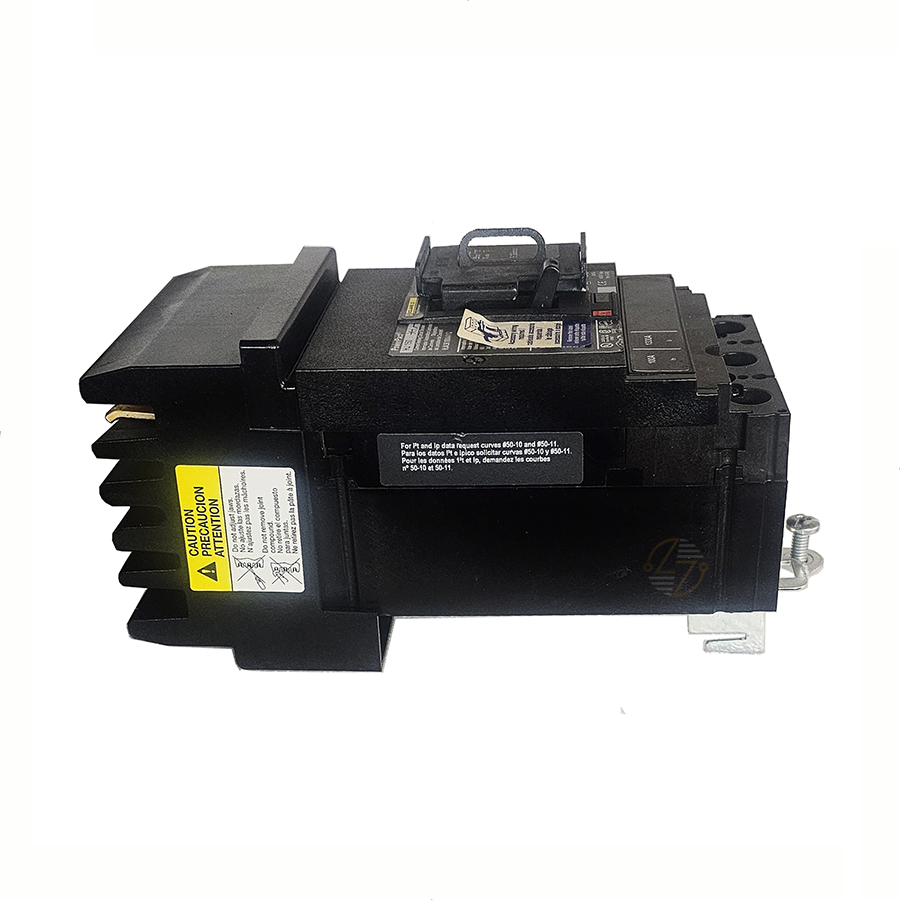

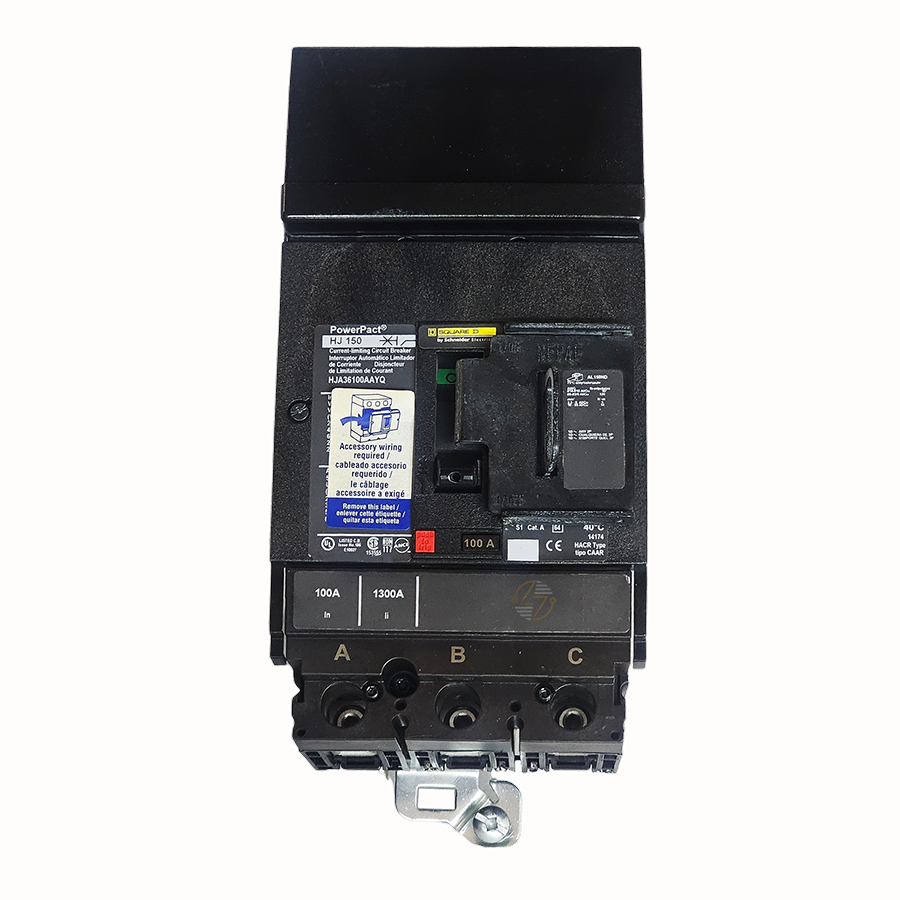

HJA36100AAYQ - 100 Amp Circuit Breaker
HJA36100AAYQ - 100 Amp Circuit Breaker
Couldn't load pickup availability
HJA36100AAYQ - 100 Amp Circuit Breaker
The HJA36100AAYQ is a 100-amp, 3-pole molded case circuit breaker that protects your commercial and industrial electrical systems from overloads and short circuits. Its thermal-magnetic trip unit reacts quickly to electrical faults while allowing normal currents to pass, keeping circuits and equipment safe.
With an I-Line plug-in design, this breaker installs easily in compatible panelboards and distribution equipment. It handles higher fault currents with interrupting ratings of 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC. A padlockable device provides an added safety measure for lockout/tagout during maintenance or service.
From manufacturing plants to commercial buildings, this breaker delivers straightforward protection for three-phase systems, making it a practical choice for everyday electrical operation.
Key Features and Benefits
- 100A current rating
- 3-pole for three-phase electrical systems
- Thermal-magnetic trip protection for overloads and short circuits
- I-Line plug-in mounting for easy installation
- High interrupting ratings up to 100kA at 240VAC
- Padlockable device for lockout/tagout
- Compact molded case design
Technical Specifications
- Catalog Number: HJA36100AAYQ
- Type: HJA
- Product Type: Molded Case Circuit Breaker
- Trip Unit: Thermal Magnetic
- Amperage Rating: 100 Amps
- Poles: 3
- Mounting Style: I-Line Plug-In
- A.I.C. Rating: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC
- Height: 8.75 in.
- Width: 4.12 in.
- Depth: 4.38 in.
- Padlockable Device: Yes
Material Compliance and Certifications
- Meets standards for commercial and industrial electrical distribution
- Suitable for high fault-current applications
- Designed for use in molded case breaker systems
- Complies with applicable electrical codes
Where It Works Best
- Commercial office buildings
- Manufacturing and industrial facilities
- Power distribution panels and switchboards
- Motor control applications
- Feeder and branch circuits
- Utility and infrastructure projects
- Institutional and municipal buildings
- Three-phase electrical systems
