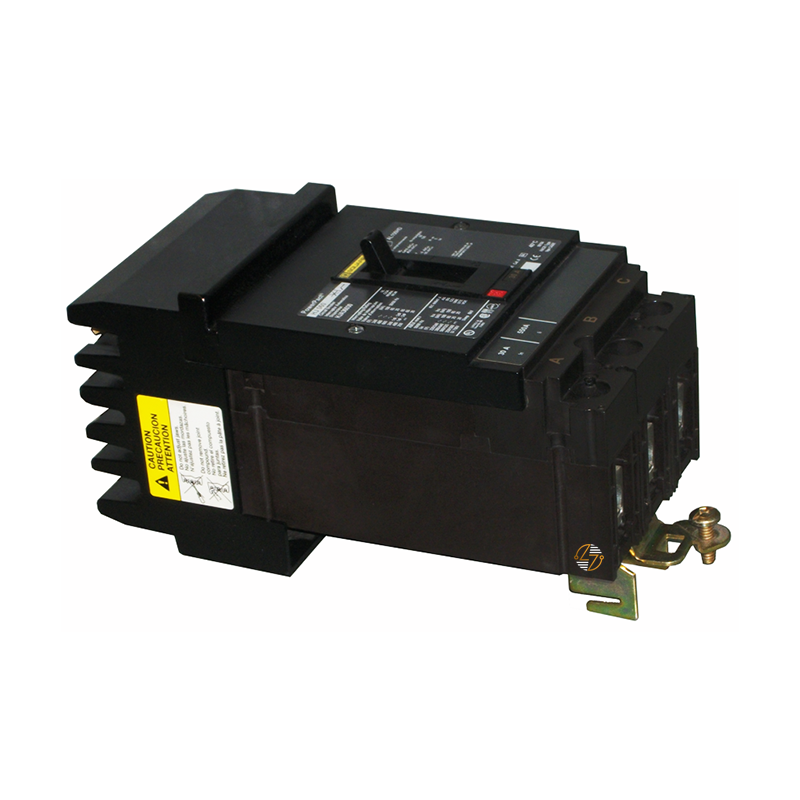

The HJA36100 is a 100-amp, 3-pole molded case circuit breaker built for your commercial and industrial electrical systems. With its thermal-magnetic trip unit, it protects circuits and connected equipment from overloads and short circuits while allowing normal startup currents to pass. Its I-Line plug-in design makes installation and removal simple, and it’s equipped with dual-break rotating contacts that help reduce peak current during short circuit events.

This breaker handles high fault currents, with interrupting capacities of 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, making it suitable for demanding power distribution applications. A built-in push-to-trip button provides you with easy manual testing, and a padlockable feature supports lockout/tagout safety procedures, giving maintenance teams extra confidence during service.

From manufacturing plants to commercial buildings, the HJA36100 delivers reliable protection and straightforward installation, making it a solid choice for three-phase electrical systems.

Key Features and Benefits

• 100-amp, 3-pole breaker for three-phase systems: 100-amp, 3-pole breaker for three-phase systems
• Thermal-magnetic trip unit for overload and short-circuit protection: Thermal-magnetic trip unit for overload and short-circuit protection
• I-Line plug-in mounting for quick installation and removal: I-Line plug-in mounting for quick installation and removal
• Dual-break rotating contacts to limit peak current: Dual-break rotating contacts to limit peak current
• Interrupting ratings: 25kA @ 600VAC, 65kA @ 480VAC, 100kA @ 240VAC
• Push-to-trip button for testing: Push-to-trip button for testing
• Padlockable for lockout/tagout safety: Padlockable for lockout/tagout safety
• Continuous current rating of 80%: Continuous current rating of 80%
• Compatible with commercial and industrial electrical systems: Compatible with commercial and industrial electrical systems


Technical Specifications

• Catalog Number: HJA36100

• Series: PowerPact H

• Product Type: Molded Case Circuit Breaker

• Poles: 3

• Amperage Rating: 100A

• Trip Unit Technology: Thermal-Magnetic

• Breaking Capacity: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC; 20kA @ 250VDC

• Rated Operational Voltage: 690V AC IEC 60947-3

• Continuous Current Rating: 80%

• Mounting Style: I-Line bracket

• Line Connection: I-Line connection

• Load Connection: Mechanical lugs

• Dimensions:
  • Height: 6.4 in (163 mm)
  • Width: 4.09 in (104 mm)
  • Depth: 3.4 in (86 mm)
• Push-to-Trip Button: Yes

• Padlockable Device: Yes


Material Compliance and Certifications

• Certifications: UL, CSA, NOM, and IEC certified
• CE Marked: CE marked
• HACR Rated: HACR rated for heating, air conditioning, and refrigeration systems
• Standards Compliance: Designed to meet international and North American electrical standards


Where It Works Best

• Commercial office buildings and industrial facilities
• Power distribution panels and switchboards
• Motor control centers and feeder circuits
• Manufacturing plants and institutional buildings
• Three-phase electrical systems
• Electrical infrastructure upgrades and replacements
• The HJA36100 combines high interrupting capacity, thermal-magnetic protection, and an easy plug-in installation in a compact package. It’s a practical solution for keeping three-phase systems safe and operational in demanding commercial and industrial environments.
