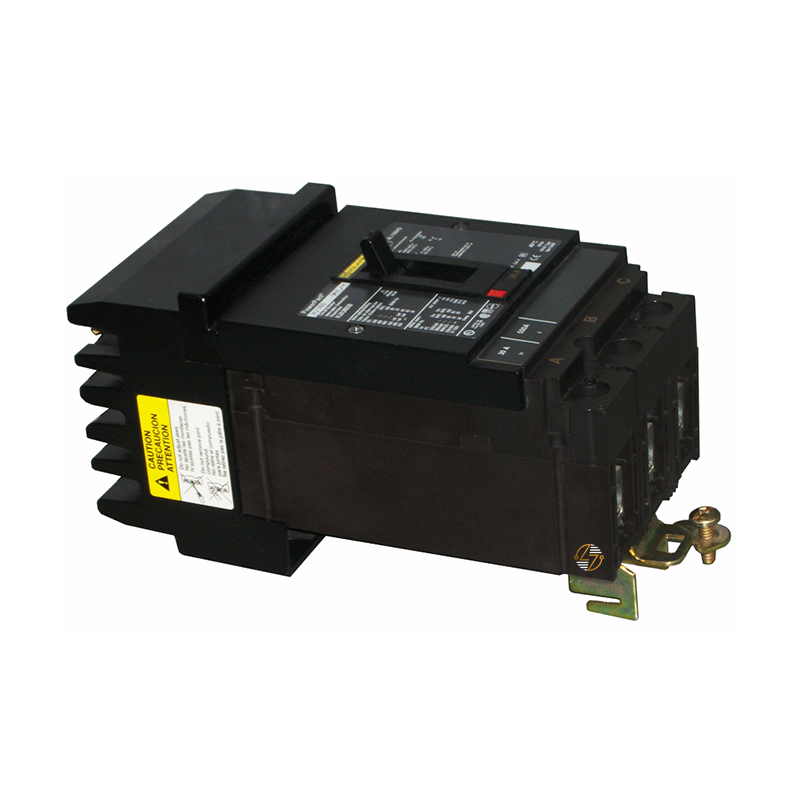

HJA36090 - 90 Amp Circuit Breaker

HJA36090 - 90 Amp Circuit Breaker

When it comes to keeping your commercial or industrial electrical system safe, the HJA36090 90Amp Circuit Breaker has you covered. Think of it as your system’s quiet protector—it works in the background, ready to step in the moment a circuit faces an overload or short circuit. With its 3-pole design and 90A capacity, it handles up to 600VAC with ease, giving you peace of mind that your equipment and operations are protected. Its thermal magnetic trip technology reacts instantly, helping prevent damage and costly downtime without you having to lift a finger.

Key Features and Benefits

• Reliable Protection: Detects overloads and short circuits fast so your system stays safe.
• Hassle-Free Installation: I-Line mounting lets you set it up in panelboards and switchboards quickly.
• See Status at a Glance: Semi-transparent front cover makes it easy to check the breaker visually.
• Customizable Options: Add accessories in the field to fit your setup perfectly.

Technical Specifications

• Product Range: PowerPacT H
• Rated Current: 90A
• Poles: 3
• Voltage Rating: 600VAC, 25kA (UL 489)
• Breaking Capacity:
  • 100kA at 240V AC
  • 65kA at 480V AC
  • 25kA at 600V AC
  • 20kA at 250V DC
• Tripping Technology: Thermal Magnetic
• Mounting Mode: I-Line Bracket
• Dimensions: Height 6.42 in | Width 4.09 in | Depth 3.39 in
• Weight: 4.85 lb

Material Compliance and Certifications

• Certifications: UL, CSA, NOM, IEC 60947-2
• Environmentally Compliant: Meets RoHS and REACh standards
• Quality Labels: CE Marked
• Protection: Front cover rated IP40 (IEC 60529)

Where It Works Best

• This breaker is ideal for factories, commercial buildings, and industrial facilities where reliable circuit protection is essential. Whether you’re installing new equipment or upgrading existing systems, the HJA36090 steps in immediately to safeguard your machinery, lighting, and sensitive electronics—so you can focus on running your operations without constantly worrying about electrical issues.
