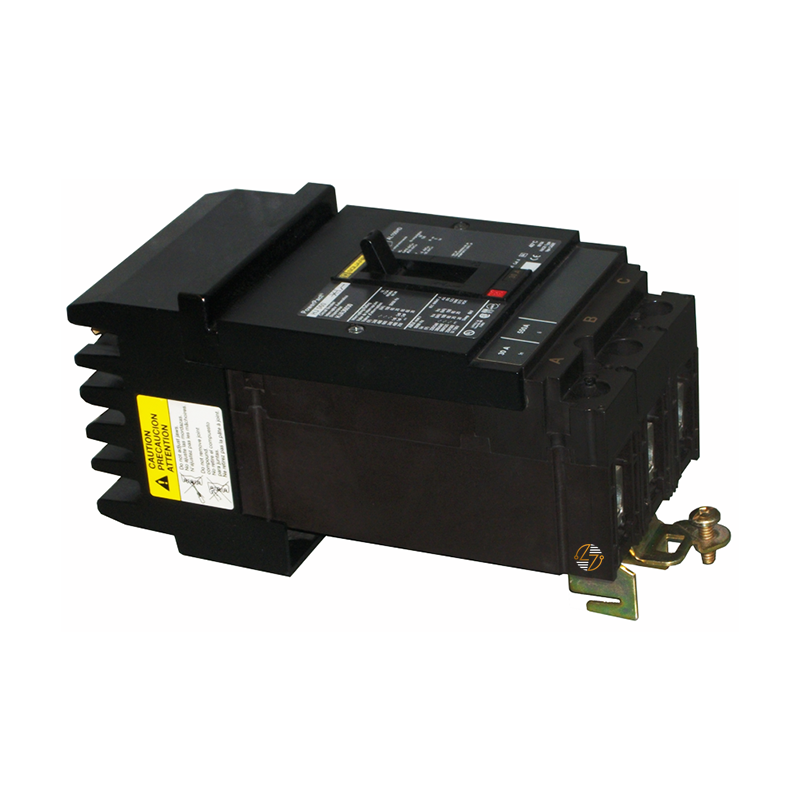

HJA36060 - 60 Amp Circuit Breaker

HJA36060 - 60 Amp Circuit Breaker

The HJA36060 is a PowerPact H-Frame molded case circuit breaker designed for your electrical distribution equipment that requires a 3-pole, 60-amp thermal-magnetic breaker with I-Line compatibility. This breaker provides a 25kA interrupting capacity at 600VAC and is intended for compatible commercial and industrial electrical systems where the existing breaker configuration needs to be matched.

Key Features and Benefits

• 60-amp, 3-pole design – Designed for compatible three-phase electrical distribution applications.
• Thermal-magnetic protection – Provides overload and short-circuit protection through a thermal-magnetic trip unit.
• 600VAC rating – Suitable for electrical systems requiring up to 600VAC operation.
• I-Line connection on line side – Designed for equipment using I-Line mounting and connection systems.
• Mechanical load-side lugs – Provide load connections for compatible installations.
• Push-to-trip button – Allows manual tripping from the breaker cover.
• HACR rated – Suitable for applications requiring HACR-rated circuit breakers.
• 80% continuous current rating – Designed for continuous current applications within specified limits.
• Dual-break rotating contacts – Designed to help reduce peak current during short-circuit events.

Technical Specifications

• Catalog Number: HJA36060

• Product Family: PowerPact H

• Breaker Type: Molded Case Circuit Breaker

• Application: Distribution

• Poles: 3P

• Amperage Rating: 60 Amps

• Trip Unit Technology: Thermal-magnetic

• Voltage Rating: 600VAC

• Frequency: 50/60Hz

• Breaking Capacity:
  • 100kA at 240VAC UL 489
  • 65kA at 480VAC UL 489
  • 25kA at 600VAC UL 489
  • 18kA at 250VDC UL 489
• Continuous Current Rating: 80%

• Magnetic Trip Current: 1450A

• Magnetic Hold Current: 800A

• Mounting Type: I-Line bracket mounting

• Line Connection: I-Line connection

• Load Connection: Mechanical lugs

• Dimensions: 4.09"W x 6.4"H x 3.4"D

• Product Weight: Approximately 4.9 lbs.


Material Compliance and Certifications

The HJA36060 PowerPact H-Frame circuit breaker is designed for compatible electrical distribution equipment and meets applicable UL, CSA, NOM, NEMA, and IEC standards. It is CE marked and includes an IP40 front cover protection rating. The breaker is suitable for use in environments with pollution degree 3 conditions as defined by applicable standards.

Where It Works Best

The HJA36060 works best in electrical distribution equipment designed for PowerPact H-Frame I-Line circuit breakers. It is suited for commercial buildings, industrial facilities, and other applications requiring a 3-pole, 60-amp thermal-magnetic circuit breaker with I-Line compatibility. Its connection style, compact dimensions, and listed ratings make it a practical fit for maintenance and replacement applications where keeping the existing equipment setup is important.
