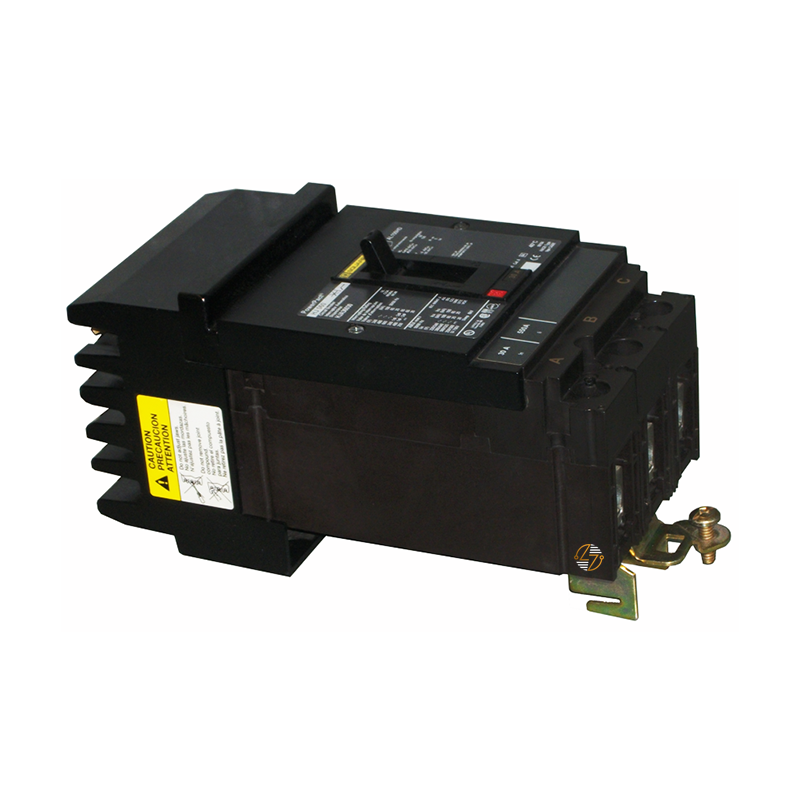

HJA36030 - 30 Amp Circuit Breaker

HJA36030 - 30 Amp Circuit Breaker

Protect your electrical system with confidence using the HJA36030 PowerPact H-Frame Circuit Breaker from Schneider Electric. Built for everyday industrial and commercial use, this 30-amp, 3-pole breaker keeps your equipment safe from overloads and short circuits without slowing you down. With a strong 25kA breaking capacity at 600VAC, it can handle serious electrical faults, while the thermal-magnetic trip technology ensures reliable protection when you need it most. Designed for easy I-Line installation, it fits smoothly into your existing panels, so you spend less time worrying about setup and more time keeping your operations running.

Key Features and Benefits

• Smart Overload Protection: Thermal-magnetic technology responds quickly to overcurrent or short circuits, keeping your system safe.
• Handles Big Surges: With a 25kA breaking capacity, this breaker can manage heavy electrical loads without tripping unnecessarily.
• Quick and Simple Installation: I-Line mounting makes it easy to drop into standard panelboards or switchboards.
• Built to Last: Solid design ensures reliable performance day after day.

Technical Specifications

• Range: PowerPact
• Rated Current: 30A
• Poles: 3P
• Breaking Capacity: 25kA at 600VAC
• Voltage: 690V AC, 50/60 Hz (IEC 60947-3)
• Tripping Technology: Thermal-magnetic
• Continuous Current Rating: 80%
• Dimensions: 6.42 in H × 4.09 in W × 3.39 in D (163 × 104 × 86 mm)
• Net Weight: 4.85 lb (2.2 kg)
• Mounting: I-Line bracket

Material Compliance and Certifications

• Standards: UL, CSA, NOM-003-SCFI-2000, IEC 60947-2
• Certifications: RoHS and REACh compliant

Where It Works Best

• Perfect for industrial and commercial settings, the HJA36030 keeps motors, HVAC systems, and other critical equipment protected. Its reliable trip mechanism and high breaking capacity make it ideal for anyone who wants peace of mind knowing their electrical system is safe and efficient.
