HJA36015 - 15 Amp Circuit Breaker

HJA36015 - 15 Amp Circuit Breaker

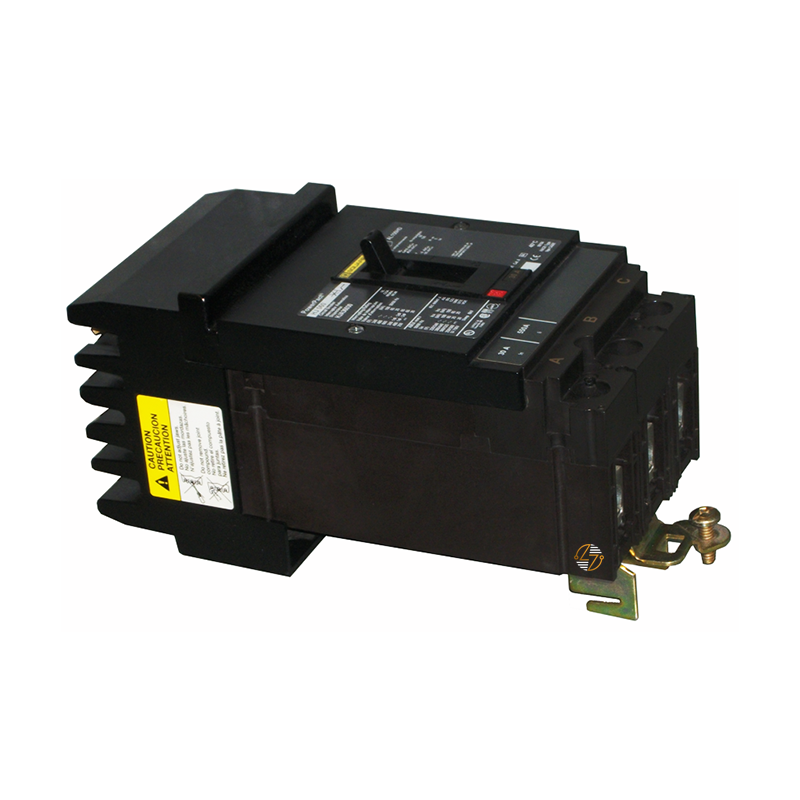

The HJA36015 PowerPacT H-Frame Circuit Breaker is a reliable choice for keeping your electrical system safe. This 15-amp, 3-pole breaker quickly responds to overloads and short circuits, helping prevent damage to your equipment. It’s built tough for industrial and commercial use but is still easy to install and check.

Key Features and Benefits

• Protects Your Circuits: Each pole uses thermal-magnetic sensing to guard against overloads and short circuits.
• Handles Strong Faults: Can interrupt up to 25kA at 600VAC, so it’s ready for heavy loads.
• Easy to Install: Fits Square D panelboards and switchboards with the I-Line mounting system.
• Quick to Inspect: Semi-transparent front cover makes visual checks fast and simple.

Technical Specifications

• Product Range: PowerPacT H
• Rated Current: 15A
• Poles: 3
• Operational Voltage: 600VAC
• Breaking Capacity:
  • 25kA at 600VAC
  • 65kA at 480VAC
  • 100kA at 240VAC
• Trip Technology: Thermal-magnetic
• Continuous Current Rating: 80%
• Control Type: Toggle
• Mounting: I-Line bracket
• Dimensions: 6.42 in (H) × 4.09 in (W) × 3.39 in (D)
• Weight: 4.85 lb

Material Compliance and Certifications

• Industry Standards: This breaker meets strict safety standards. It is UL listed, CSA certified, and follows NOM and IEC rules.
• Environmental Compliance: Mercury-free, PVC-free, and compliant with RoHS and REACh.

Where It Works Best

• This breaker is ideal for commercial and industrial spaces. Factories, offices, and buildings with heavy equipment will benefit from its steady protection. It’s a solid choice whether you’re installing a new system or upgrading an old one.
