HHED63B110 - 110Amp Circuit Breaker

HHED63B110 - 110Amp Circuit Breaker

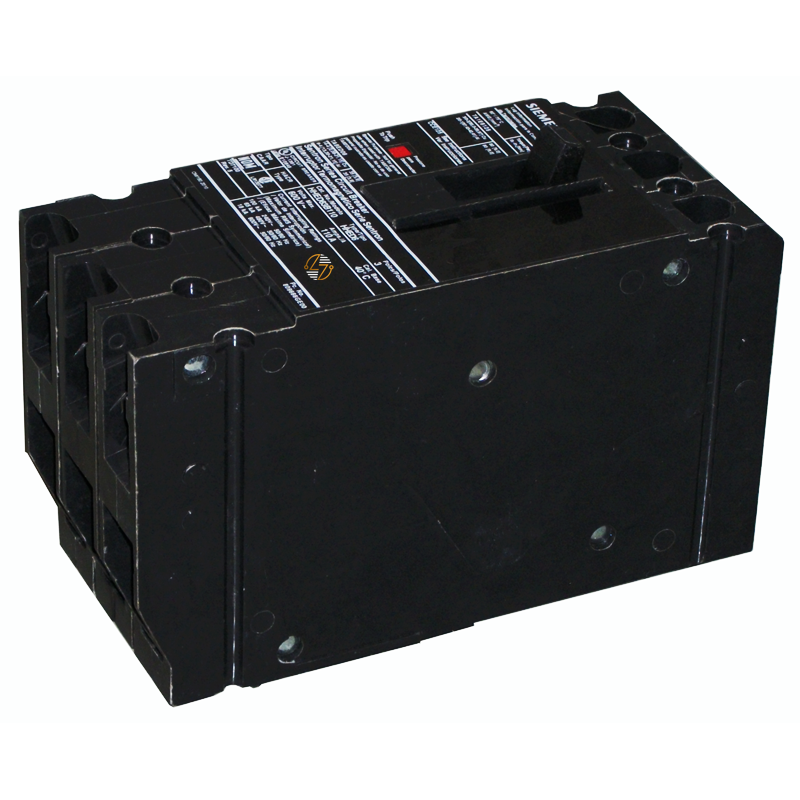

The Siemens HHED63B110 is an ED-frame, 3-pole circuit breaker rated at 110 amps and 600 volts, with an 18kA interrupting rating and load-side lug configuration. It’s a solid fit for maintenance and replacement work in existing electrical distribution equipment that was your originally designed around this exact breaker format.

Key Features and Benefits

• 110A current rating – Designed for compatible electrical applications that require a 110-amp breaker.
• 3-pole configuration – Suited to applicable three-phase electrical distribution systems.
• 600V rating – Matches equipment specified for a breaker with this voltage rating.
• ED-frame design – Helps maintain the required form and fit in compatible electrical equipment.
• Load-side lug configuration – Matches installations that call for this specific connection arrangement.

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED63B110

• Product Type: Circuit Breaker

• Frame / Series: ED

• Number of Poles: 3

• Amperage: 110A

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection Configuration: Load-Side Lug

• Net Weight: 4.101 lb

• UPC: 783643308152


Material Compliance and Certifications

Manufacturer data for the HHED63B110 circuit breaker identifies compliance with RoHS substance restrictions since April 2, 2009. REACH Article 33 information is also associated with the product’s material-compliance documentation. The listed export-control classification is ECCN EAR99 / AL N, while no SCIP number is provided in the supplied specifications.

Where It Works Best

The Siemens HHED63B110 110A circuit breaker works best in existing and legacy electrical distribution equipment that specifically requires an ED-frame, 3-pole, 110A, 600V breaker with an 18kA interrupting rating and load-side lug configuration.
