HHED63B030L - 30Amp Circuit Breaker

HHED63B030L - 30Amp Circuit Breaker

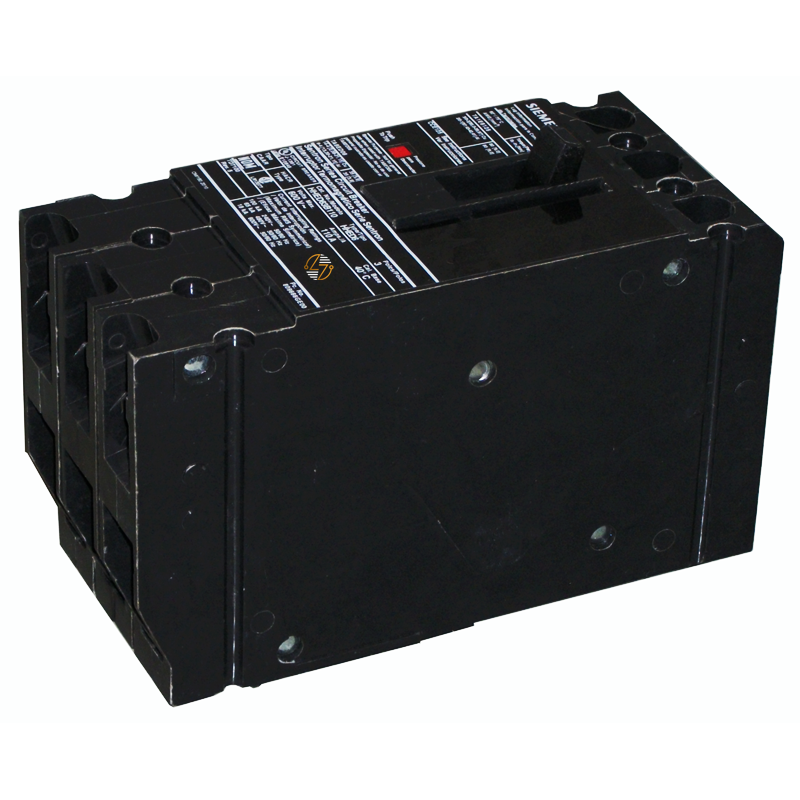

Need to match a Siemens HHED63B030 already specified in your electrical equipment? Start with the details that matter. This is a 30 Amp, 3-pole ED-frame molded case circuit breaker with a thermal-magnetic trip unit. In other words, this isn't about changing what the electrical system was designed to use. It's about finding the correct breaker for the application. When the catalog number and specifications match your equipment requirements, the HHED63B030 provides the required form, fit, and function. It's a practical, well-built component that's made to last when installed correctly and operated within its specified ratings.

Key Features and Benefits

• 30A, 3-pole configuration for equipment requiring this specific electrical arrangement.
• ED frame makes it easier to verify the required physical breaker configuration.
• Thermal-magnetic trip unit provides the protection characteristics specified for the HHED63B030.
• Includes LN1E100 load-side lugs only.
• Accommodates 10–1/0 AWG copper and aluminum conductors.
• Designed around a standard 40°C breaker rating.
• Meets UL 489 and IEC 60947-2 standards.

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED63B030

• Product Family: HHED6

• Type: Molded Case Circuit Breaker

• Frame: ED

• Trip Type: Thermal-Magnetic

• Amperage: 30A

• Poles: 3

• Voltage Rating: 600VAC

• Interrupting Rating at 600V: 18kAIC

• Interrupting Rating at 480V: 65kAIC

• Temperature Rating: 40°C

• Lug Configuration: Load Lugs Only

• Lug: LN1E100

• Wire Range: 10–1/0 AWG Cu/Al

• Dimensions: 3 x 6.53 x 3.92 in. (W x H x D)

• Net Weight: 3.96 lb

• UPC: 783643308053

• Country of Origin: Mexico


Material Compliance and Certifications

The HHED63B030 molded case circuit breaker meets UL 489 and IEC 60947-2 standards. Manufacturer information also identifies compliance with the substance restrictions of the RoHS Directive since April 2, 2009, along with REACH Article 33 reporting information. Its export-control classification is EAR99.

Where It Works Best

The Siemens HHED63B030 makes the most sense when you're working with existing commercial or industrial electrical equipment that calls for a 30A, 3-pole ED-frame breaker with these particular ratings. Maintenance, repair, and replacement projects are obvious examples, especially when keeping the original breaker configuration is important.
