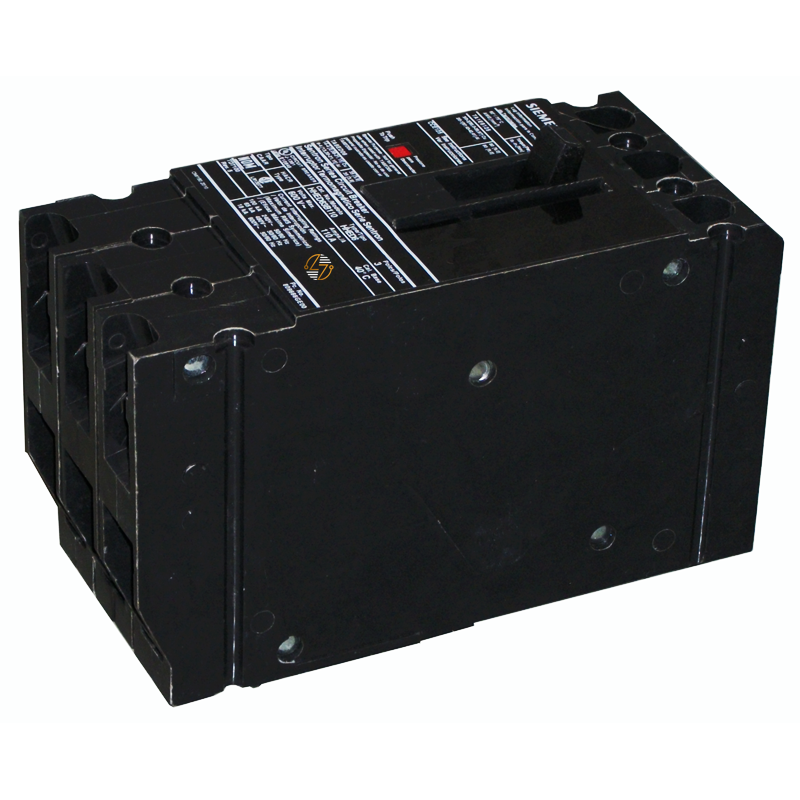

HHED63B030 - 30Amp Circuit Breaker

HHED63B030 - 30Amp Circuit Breaker

The Siemens HHED63B030 is a high-performance, low voltage, Sentron molded case circuit breaker designed to provide reliable protection and efficient performance in electrical systems. Equipped with a thermal-magnetic trip unit, this circuit breaker ensures precise and dependable operation under various load conditions. It features a robust ED frame with an extra high breaking capacity, making it an ideal choice for both commercial and industrial applications.

Key Features and Benefits:

• High Breaking Capacity: With an impressive interrupting capacity of 18kA at 600V and 65kA at 480V, the HHED63B030 circuit breaker offers exceptional protection against overcurrent and short-circuit conditions.
• Thermal-Magnetic Trip Unit: Ensures accurate and responsive protection by combining both thermal and magnetic trip mechanisms to handle both prolonged overloads and instantaneous faults effectively.
• Compact Design: Measuring 3 x 6.53 x 3.92 inches, this circuit breaker is designed to fit seamlessly into various electrical panels and systems, optimizing space without compromising performance.
• Versatile Connectivity: Equipped with load lugs (LN1E100) that accommodate wire ranges from 10 to 1/0 AWG (CU/AL), ensuring flexibility and ease of installation in diverse setups.
• Durable Construction: Built to withstand demanding operational environments, the Siemens HHED63B030 is designed for longevity and reliability.

Technical Specifications:

• Manufacturer: Siemens
• Product Code: HHED63B030 | US2
• Frame Type: ED Frame
• Trip Unit: Thermal-Magnetic
• Rated Current: 30 Amps
• Poles: 3
• Interrupting Capacity: 18kA at 600V, 65kA at 480V
• Dimensions: 3 x 6.53 x 3.92 inches
• Weight: 3.960 lbs
• Wire Range: 10 - 1/0 AWG (CU/AL)

Material Compliance and Certifications:

• UL 489: Complies with Underwriters Laboratories (UL) standard 489, ensuring high safety and performance standards.
• IEC 60947-2: Meets International Electrotechnical Commission (IEC) standard 60947-2, ensuring global compatibility and adherence to international safety norms.
• RoHS Compliance: Adheres to the Restriction of Hazardous Substances (RoHS) directive, ensuring minimal environmental impact by restricting hazardous materials in its construction.
• WEEE Directive: Compliant with the Waste Electrical and Electronic Equipment (WEEE) directive, facilitating environmentally responsible recycling and disposal.

Suitability:

• The Siemens HHED63B030 circuit breaker is suitable for a wide range of applications, including commercial buildings, industrial facilities, and infrastructure projects. Its high breaking capacity and robust design make it particularly well-suited for environments where reliable overcurrent protection is critical. Whether for new installations or upgrades, this circuit breaker provides a dependable solution to ensure electrical safety and system integrity.

The Siemens HHED63B030 Circuit Breaker is more than just a component; it's a crucial safeguard for your electrical systems, designed to offer peace of mind through its robust performance and protection features. Explore more about this essential circuit breaker today and ensure your systems remain secure and compliant.
