HHED63B015L - 15Amp Circuit Breaker

HHED63B015L - 15Amp Circuit Breaker

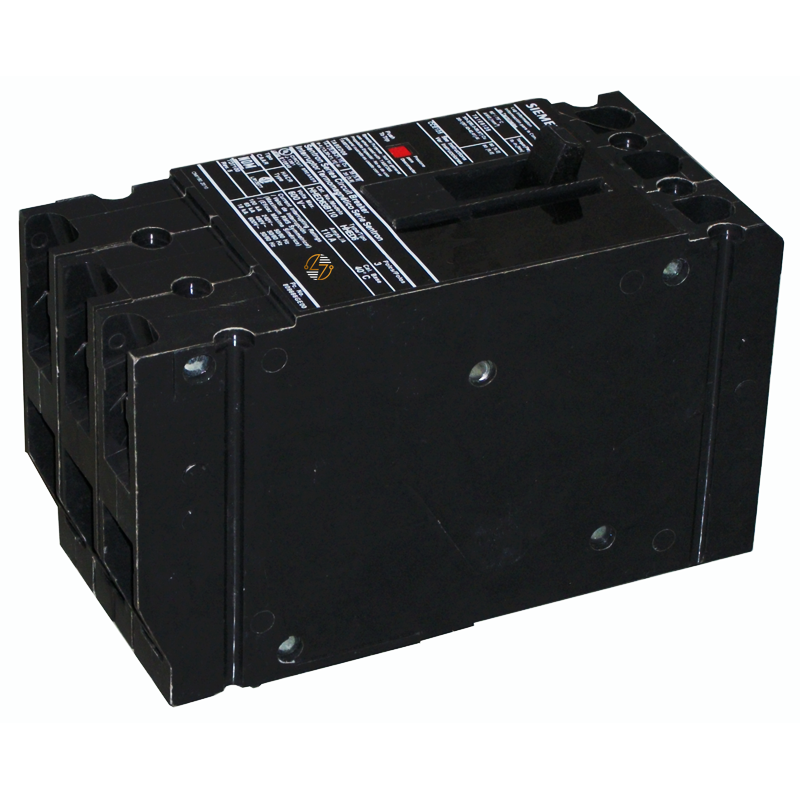

When you’re replacing a circuit breaker in existing equipment, getting the details right matters. The HHED63B015L is a 15 Amp, 3-pole HHED6 molded case circuit breaker in a Sentron-style configuration. Those details make the HHED63B015L especially useful for maintenance and replacement work where the original breaker specifications need to be closely matched. Simply put, this is a breaker for applications calling for this particular HHED6 combination of amperage, poles, dimensions, interrupting capacity, and terminal arrangement. Its molded case construction is built to last when properly installed and operated within the specified electrical ratings.

Key Features and Benefits

• 15 Amp, 3-pole design: Matches applications requiring a three-pole breaker with a 15 Amp rating.
• HHED6 configuration: Useful when maintaining equipment designed around this specific breaker type and physical format.
• Sentron-style molded case: Provides a familiar form factor for compatible electrical equipment.
• Terminals included: Both line- and load-side terminals are supplied with the breaker.
• Reverse-feed suitable: Offers installation flexibility where reverse feeding is permitted by the equipment and application.
• 40°C rating: Gives technicians another important specification to check when matching an existing breaker.

Technical Specifications

• Part Number: HHED63B015L

• Type: HHED6

• Style: Sentron-style molded case circuit breaker

• Amperage: 15 Amps

• Poles: 3

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Line- and load-side terminals included

• Height / Length: 6.63 in.

• Width: 3.00 in.

• Depth: 3.92 in.

• Overall Dimensions: 3.00"W x 6.63"L x 3.92"D

• Approx. Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The available specifications identify the HHED63B015L as HACR-rated and give it a 40°C temperature rating. No additional material-compliance certifications have been provided in the available product information.

Where It Works Best

The HHED63B015L makes the most sense in existing electrical systems that specifically call for a 15 Amp, 3-pole HHED6 molded case circuit breaker with compatible voltage, interrupting, dimensional, and terminal requirements. That can include commercial and industrial electrical equipment as well as compatible HVAC applications where an HACR-rated breaker is specified.
